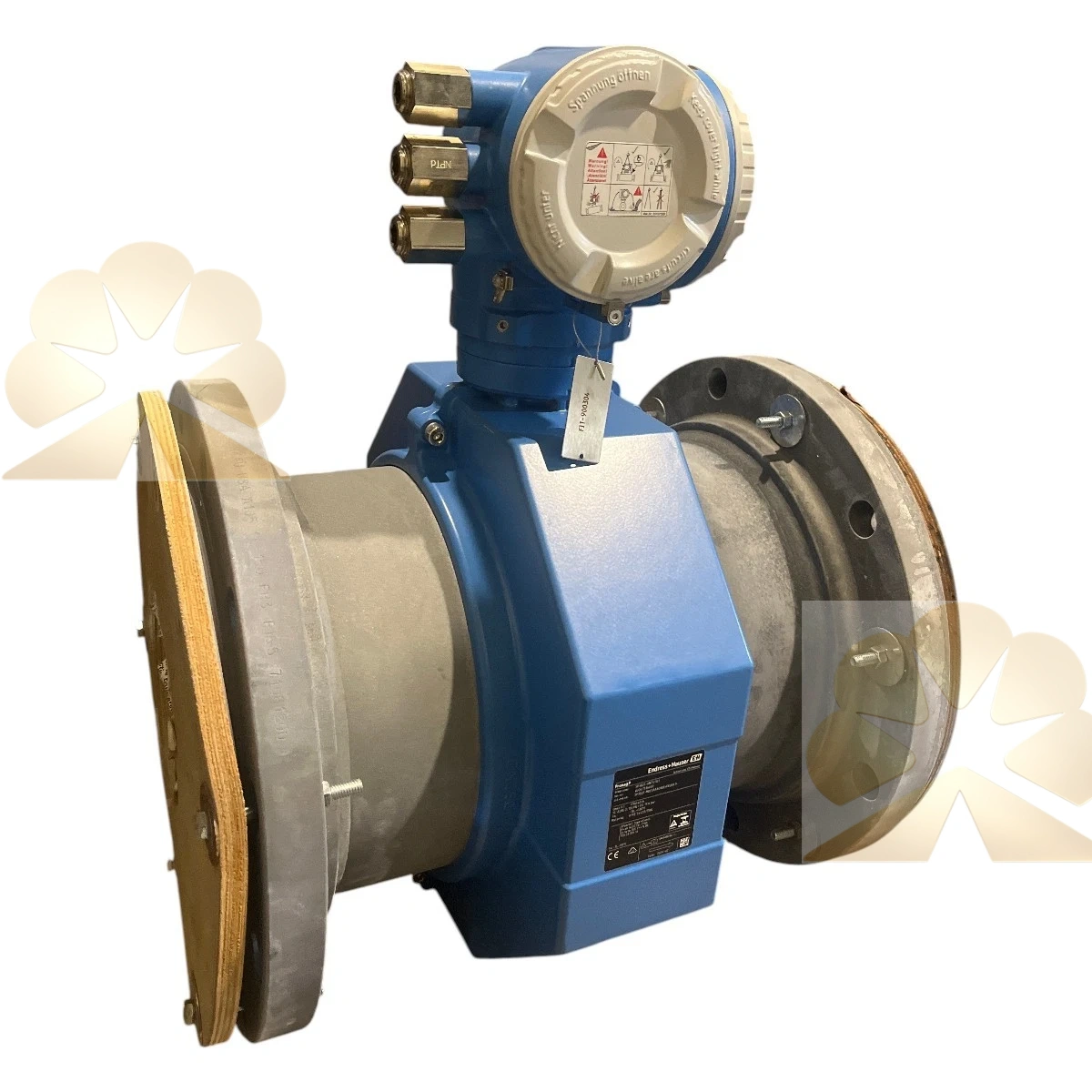

Endress+Hauser Proline Promag P 5P3B2F

The 5P3B2F is the Proline Promag P 300 high-temperature electromagnetic flowmeter, nominal measuring range up to 1700 m³/h, designed for conductive corrosive and high-temperature liquids. This 5P3B2F adopts Faraday electromagnetic induction principle, only suitable for conductive fluids, not affected by density, viscosity, pressure fluctuation. The suffix 5P3B2F defines diameter, liner material, electrode material, process connection, output signal and certification of this specific variant.

This 5P3B2F delivers standard accuracy ±0.5% of reading, optional flat spec ±0.2%. PFA liner supports high temperature medium up to 180°C, PTFE liner for low temperature corrosive service. It is equipped with Heartbeat Technology for continuous self-verification, no process interruption during diagnostic test. Communication options include HART, Modbus TCP, PROFIBUS, 4-20mA analog output for DCS and PLC interconnection. IP67/IP68 enclosure, ATEX, IECEx and SIL certified options are available.

The Promag P 300 5P3B2F is widely used in chemical plants, acid/alkali dosing, wastewater, power plant boiler feedwater and process fluid custody transfer loops. Promag P300 is E+H’s mainstream high-temperature magmeter platform. Many EPC and instrument maintenance teams stock the 5P3B2F as spare flowmeter for metering loop overhaul and emergency replacement.
