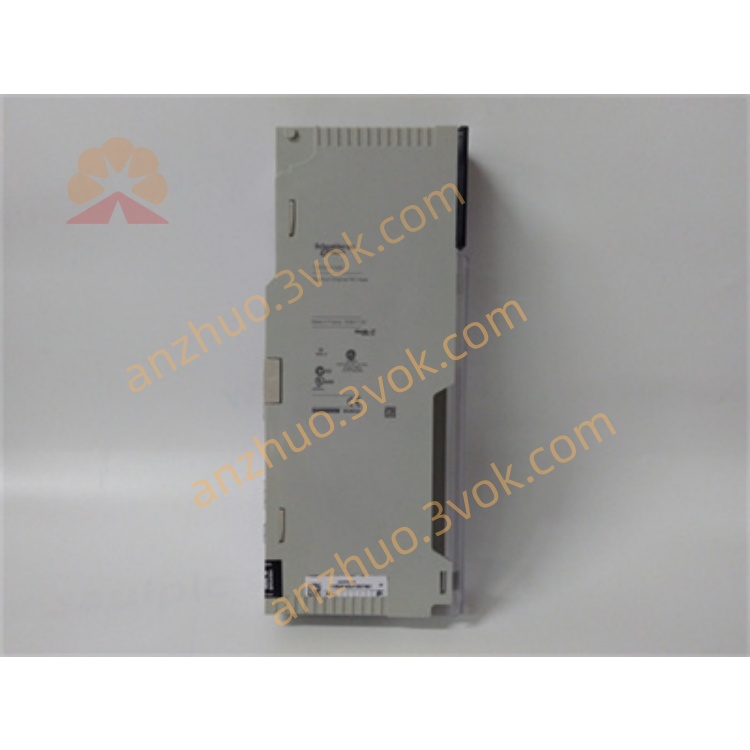

140CRP31200 Detailed Product Description

1、 Basic product information • Brand manufacturer: Schneider Electric • Product series: Modicon Quantum • Model: 140CRP31200 • Product category: Ethernet RIO Head • Description: Quantum rack specific RIO Head, 4-port Ethernet switch, supports EtherNet/IP and Modbus TCP, daisy chain/ring network topology, manages remote I/O slaves (140CRA31200), builds distributed high-speed I/O system • Adaptation system: Quantum full range CPU (such as 140CPU65260), remote RIO rack, Unity Pro programming platform

2、 Appearance and structural parameters • Shell color: industrial gray • Installation method: standard Quantum backplane slot installation, tool free plug-in locking • Protection level: IP20 • Size (width x height x depth): 167mm x 50mm x 33mm (standard Quantum module size) • Weight: about 0.55kg • Status indicator lights (4 channels): ◦ Mod Status (green/red): module running/fault status ◦ Net Status (green/red): network communication status ◦ RUN (green): module running normally ◦ I/O (red): remote I/O fault alarm • Communication port: 4 x RJ45 (10/100Mbps adaptive) • Bus current consumption: 800mA (typical value)

3、 Core Communication Specification 1 Network Features • Protocol Support: EtherNet/IP (Master Station) Modbus TCP (server/client) • Port configuration: 4-port layer 2 switch, supporting daisy chain and loop topologies without the need for additional switches • Transmission rate: 10/100Mbps adaptive, full duplex/half duplex • Topology redundancy: self-healing of the ring network (fault switching<500ms), supporting network redundancy • Data throughput: single port maximum 100Mbps, machine switching bandwidth 200Mbps 2. RIO remote I/O management • Slave capacity: up to 31 remote I/O slaves (140CRA31200) • Data exchange: maximum 400 words input/output per slave, global maximum 16000 words I/O • Refresh cycle: 1ms (default), minimum 0.5ms (high-speed mode) Synchronization mechanism: Supports IEEE 1588 PTP precision time synchronization (optional)

4、 Electrical and Environmental Parameters • Power Supply: Backboard 5.1V DC Power Supply, No Additional Power Required • Operating Temperature: 0 ° C~+60 ° C • Storage Temperature: -40 ° C~+85 ° C • Relative Humidity: 5%~93% (No Condensation) • Operating Altitude: ≤ 5000m • Vibration Resistance: 10~57Hz, Amplitude 1.5mm • Impact Resistance: 15g/11ms Pulse Impact • Certification Standards: CE, UL 508, CSA, Class 1 Div 2 Explosion proof Certification

5、 Core product function 1 Distributed RIO system management serves as a remote I/O master station for Quantum systems, connecting 140CRA31200 slave stations via Ethernet to achieve centralized control of local/remote I/O, simplifying wiring and providing flexible expansion. two Multi protocol Ethernet communication integrates EtherNet/IP and Modbus TCP dual protocols, seamlessly integrating with the upper computer HMI、 Variable frequency drive and servo drive, supporting real-time control and data acquisition. three The daisy chain/ring network redundancy topology 4-port switch supports daisy chain cascading or ring network redundancy, reducing switch costs, automatic switching in case of ring network failures, and ensuring communication continuity. four High speed and high bandwidth data exchange with 100Mbps Ethernet and 1ms refresh cycle, supporting large-scale I/O and high-speed motion control, suitable for high real-time scenarios such as pipeline and process control. five Improve diagnosis and status monitoring with 4-channel LED real-time display module/network/I/O status, support Unity Pro software for remote diagnosis, fault location, and online modification, and easy maintenance. six Hot swappable supports Quantum platform standard hot swappable features, and modules can be replaced separately without stopping the machine, without affecting system operation.

6、 Typical application scenarios • Chemical, oil and gas, power plant distributed process control (remote valve, sensor monitoring) • Automotive manufacturing, electronic factory large-scale assembly line remote I/O control, high-speed sorting • Water treatment, HVAC building electromechanical distributed monitoring, pump station cluster control • Logistics warehousing automation three-dimensional warehouse, AGV scheduling system • Industrial scenarios requiring distributed I/O, high-speed Ethernet, redundant network

7、 Installation and usage precautions 1 Installation/disassembly should be carried out under system power-off or hot plug specifications to avoid damaging the backplane interface; two Use shielded twisted pair cables (CAT5e and above) for network cabling, keep away from frequency converters and power cables, and reduce electromagnetic interference; three The ring network topology requires all ports to be closed, and the end ports of the daisy chain should be connected to terminal resistors or unused ports should be closed; four Programming software requires Unity Pro V7.0 or above, correctly configure RIO slave parameters, and ensure compatibility between master and slave firmware versions; five Remote I/O slave station (140CRA31200) requires separate power supply. It is recommended to configure redundant power supply to improve reliability.

8、 Summary of Product Features: 140CRP31200 is a Quantum series Ethernet RIO master module, equipped with a 4-port switch, dual protocol support, redundant topology, and high-speed I/O management. It provides efficient and reliable communication and I/O expansion solutions for distributed industrial control systems and is widely used in medium and large-scale automation projects.
