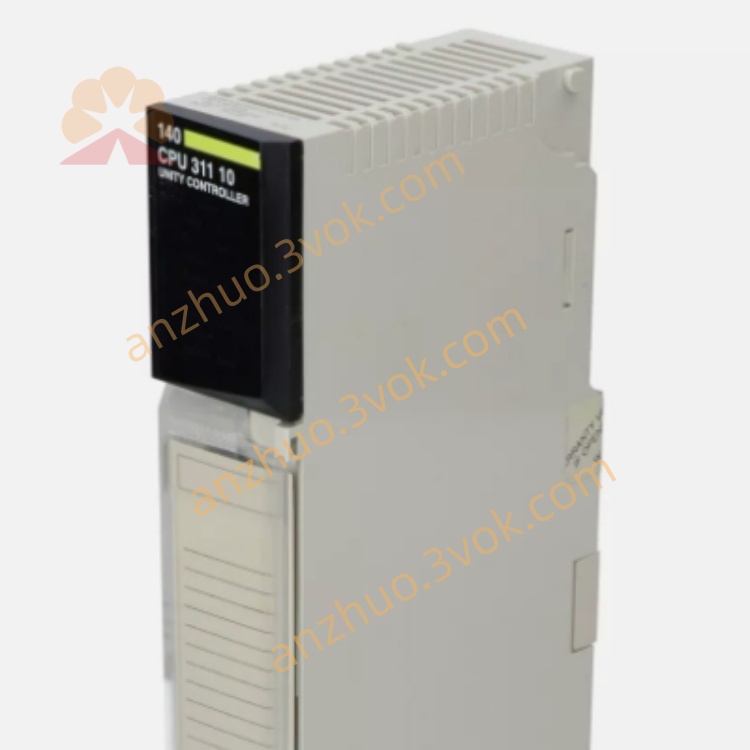

Product Detailed Specification for 140CPU31110

Model: 140CPU31110

Brand: Schneider Electric

Product Series: Modicon Quantum Series

Product Type: Unity Processor Module (CPU Module)

Applicable Platform: Modicon Quantum Automation Platform

Core Positioning: A high-performance standard CPU for medium to large industrial automation scenarios, featuring stable processing, flexible expansion, and multi-protocol communication, suitable for the reliable operation requirements of medium-sized control systems.

I. Core Overview

The 140CPU31110 is a 32-bit standard CPU module designed by Schneider Electric for medium-sized complex industrial automation systems, belonging to the Unity series of the Modicon Quantum product line. It is equipped with a 66MHz 32-bit RISC processor, integrates 548kB of memory, and features multiple industrial communication interfaces. It supports local/remote I/O expansion and the execution of complex control logic, making it suitable for industrial scenarios such as process control, manufacturing, and water treatment that have balanced requirements for stability, scalability, and cost-effectiveness.

II. Key Parameters

1. Physical and Environmental

Dimensions: 165mm × 45mm × 31.5mm

Net Weight: Approximately 0.7kg

Installation: Standard Quantum backplane slot installation

Operating Temperature: -20°C to +65°C

Storage Temperature: -40°C to +85°C

Protection Class: IP30 (dust-proof, protected against foreign object intrusion)

Vibration Resistance: Complies with industrial standard IEC 60068-2-6

2. Electrical Specifications

Supply Voltage: 24VDC (18~32VDC)

Operating Current: 1800mA

Power Consumption: Approximately 4.3W

Isolation Characteristics: Electrical isolation between communication ports and system backplane, strong anti-interference capability

3. Control Performance

Processor: 32-bit RISC processor, main frequency 66MHz

Processing Speed: Supports high-speed instruction processing, suitable for complex logic and PID algorithms

Memory Configuration:

User Program Memory: 548kB RAM (no battery backup required)

Data Storage: Supports expansion memory card (optional)

Expansion Capability: Supports up to 10 local slots, 5 local/remote I/O racks (RIO/DIO expansion)

Maximum I/O Points: 6912 points

4. Interface Configuration

Ethernet Port: 1 RJ45 interface, supports Modbus TCP/IP protocol

Modbus Plus: 1 SUB-D 9-pin interface, for industrial fieldbus communication

Serial Port: 1 RS-232/RS-485 interface, supports asynchronous communication

Expansion Interface: Backplane bus interface, connects Quantum series I/O modules and communication modules

III. Core Functions

Standard Logic Control: Executes IEC 61131-3 standard programming languages (ladder diagram, structured text, function blocks, etc.), achieving sequential control, timing/counting, mathematical operations, and closed-loop regulation.

Flexible I/O Expansion: Supports local rack expansion and remote I/O connection, suitable for distributed control system architecture, meeting the requirements of medium-sized system scales.

Multi-protocol Communication: Integrates Ethernet, Modbus, and Modbus Plus interfaces, enabling high-speed data interaction with HMIs, SCADAs, and third-party devices, supporting remote monitoring and diagnosis.

High-speed Interrupt Handling: Supports high-precision time stamps and high-speed interrupt responses, suitable for fast process control and motion control scenarios.

Comprehensive System Diagnosis: Built-in power-on self-test, operation status monitoring, and fault log recording functions, allowing quick fault location through LED indicators and Unity Pro software.

Compatibility Programming: Natively supports Schneider Unity Pro programming software, providing convenient program writing, debugging, and configuration, and is compatible with the entire Quantum series of modules.

IV. Product Features

High Stability: Wide temperature design, IP30 protection, electrical isolation, adaptable to harsh industrial environments, with a long mean time between failures (MTBF). Balanced Performance: 66MHz processor + 548kB memory, balancing processing speed and cost, suitable for complex control requirements of medium-sized systems.

Easy Expandability: Modular design, supporting local/remote I/O expansion and communication module selection, allowing for system scale upgrades as needed.

Easy Maintainability: Modular design, supporting hot-swapping, with faulty modules able to be quickly replaced; rich diagnostic information, reducing maintenance difficulty.

Compliance Certification: Compliant with CE, UL, CSA, RoHS and other industrial standards, meeting global industrial application compliance requirements.

V. Typical Applications

Process Control: Chemical, oil and gas, water treatment, power (thermal / hydroelectric) and other continuous process industries.

Discrete Manufacturing: Automotive manufacturing, electronic semiconductors, mechanical processing and other automated production lines and equipment control.

Public Utilities: Rail transit, intelligent buildings, energy management systems and other infrastructure control.

Medium-sized Automation Projects: Industrial scenarios requiring stable operation, medium-scale I/O points, and multi-device communication interconnection.

VI. Usage and Maintenance

Installation: Insert the module into the corresponding slot on the Quantum backplane, ensuring the latch is securely fastened; the installation environment should be well-ventilated and dry, and away from strong electromagnetic interference sources.

Wiring: Connect the 24VDC power supply and communication cables (Ethernet / Modbus) according to the terminal definitions, ensuring a firm connection and avoiding short circuits and reverse connections.

Programming and Configuration: Use Unity Pro software for program writing, parameter configuration, and communication configuration, and download the program to the CPU.

Debugging: After power-on, check the system status, communication connection, and I/O expansion through LED indicator lights and software monitoring.

Maintenance: Regularly inspect the wiring terminals, module heat dissipation, and operating status; keep the environment clean to avoid dust accumulation; back up programs and data to prevent loss.

Troubleshooting: Locate problems based on LED fault codes or software logs, supporting module-level quick replacement to minimize downtime.

VII. Packaging and Warranty

Packaging: Anti-static bag + cushioned cardboard box, anti-collision and anti-static.

Standard Accessories: 140CPU31110 main unit, quick installation manual, certificate of conformity.

Warranty: Standard industrial warranty of 18 months, providing technical support and repair services (warranty can be extended for a fee).
