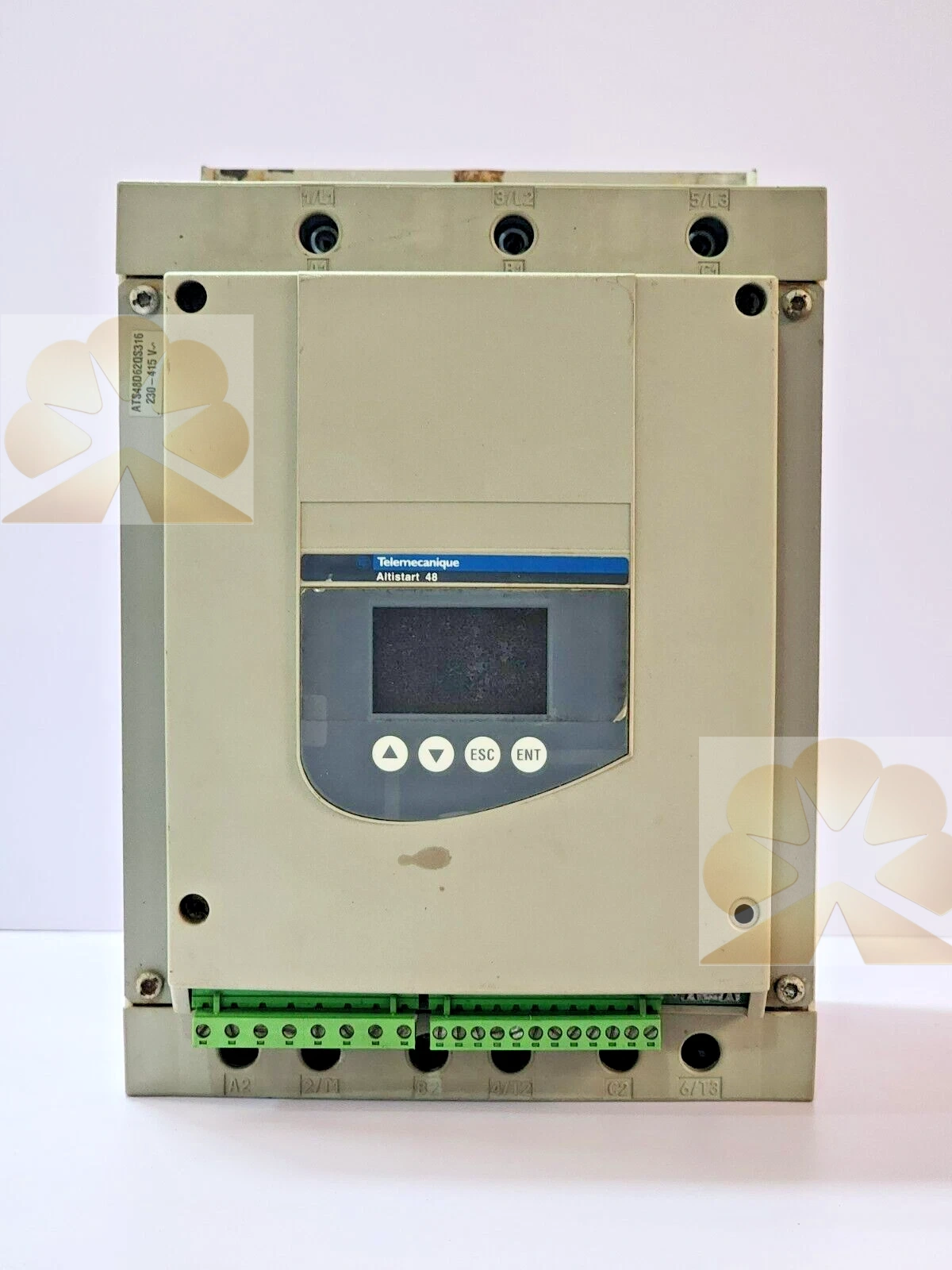

Schneider Electric Altistart 48 ATS48D62QS316 Soft Starter Product Description

Overview

Schneider Electric ATS48D62QS316 belongs to the Altistart 48 series torque-controlled soft starter. This ATS48D62QS316 is rated 62 A, suitable for three-phase asynchronous motors, 230–415 V main supply, integrated advanced torque ramp control, with Modbus communication and additional options ready for MCC cabinet installation. It is widely used for pumps, fans, compressors and conveyors, used for new build, retrofit and spare‑part replacement of Altistart 48 soft starter systems.

Features

Schneider Electric ATS48D62QS316 adopts torque control algorithm instead of simple voltage ramp, which can deliver smooth starting torque and avoid water hammer on pump loads. This Altistart 48 soft starter supports soft start, soft stop, pump stop, brake and kick start modes. ATS48D62QS316 integrates three-phase current measurement, electronic overload protection, phase loss, phase unbalance, overcurrent, thyristor overtemperature and motor PTC thermistor protection. It has built‑in Modbus RS485 port, can connect to PLC and SCADA systems; optional communication cards support Profibus, Ethernet. It provides configurable relay outputs for run, alarm and fault signals. The thermal model supports class 10 / class 20 adjustable overload curve and thermal memory after power loss. The unit can work in in-line or inside-delta connection, and supports external bypass contactor to reduce heat loss during continuous running. It complies with IEC 60947‑4‑2 and carries CE, UL, cULus certifications.

Specs

• Brand: Schneider Electric

• Series: Altistart 48

• Model: ATS48D62QS316

• Rated current: 62 A

• Motor power: 30 kW @400 V

• Main voltage: 230–415 V AC, 50/60 Hz

• Control supply: 110–230 V AC

• Control method: Torque control

• Communication: Modbus RS485 onboard

• Protection: Overload, phase loss, unbalance, SCR overheat, PTC

• Enclosure: IP20, cabinet mount

• Mounting: Backplate / MCC mounting

• Standard: IEC 60947‑4‑2, CE, UL, cULus

Principle

Schneider Electric ATS48D62QS316 controls the firing angle of three-phase SCR modules to adjust motor terminal voltage and output torque following the set torque ramp curve. It avoids high inrush current and mechanical impact at startup. After motor acceleration, an external bypass contactor can close to bypass the SCRs to reduce heat generation. The internal microprocessor continuously samples line current, calculates motor thermal state and monitors fault conditions. When stopping, soft stop mode reduces torque gradually to eliminate pressure surge on piping systems. Fault and status signals are sent to the control system via relay contacts or Modbus.

Applications

Schneider Electric ATS48D62QS316 is deployed in water and wastewater pump skids, HVAC fans, air compressors, mining conveyors and industrial refrigeration equipment. This Altistart 48 torque soft starter is especially suitable for centrifugal pumps where water hammer suppression is required. ATS48D62QS316 fits MCC cabinet overhaul and spare replacement of Altistart 48 series 62 A soft starters.

Installation & Maintenance Notes

Follow official Schneider Altistart 48 manual during installation of ATS48D62QS316. Confirm motor FLA and set overload class and ramp parameters correctly. If using bypass contactor, check interlock wiring to prevent conflict. Back up all torque profiles, protection thresholds and Modbus settings before replacement. After replacement, test start/stop sequence and communication link. Confirm exact part number ATS48D62QS316; different voltage and option suffix variants cannot be substituted directly.
