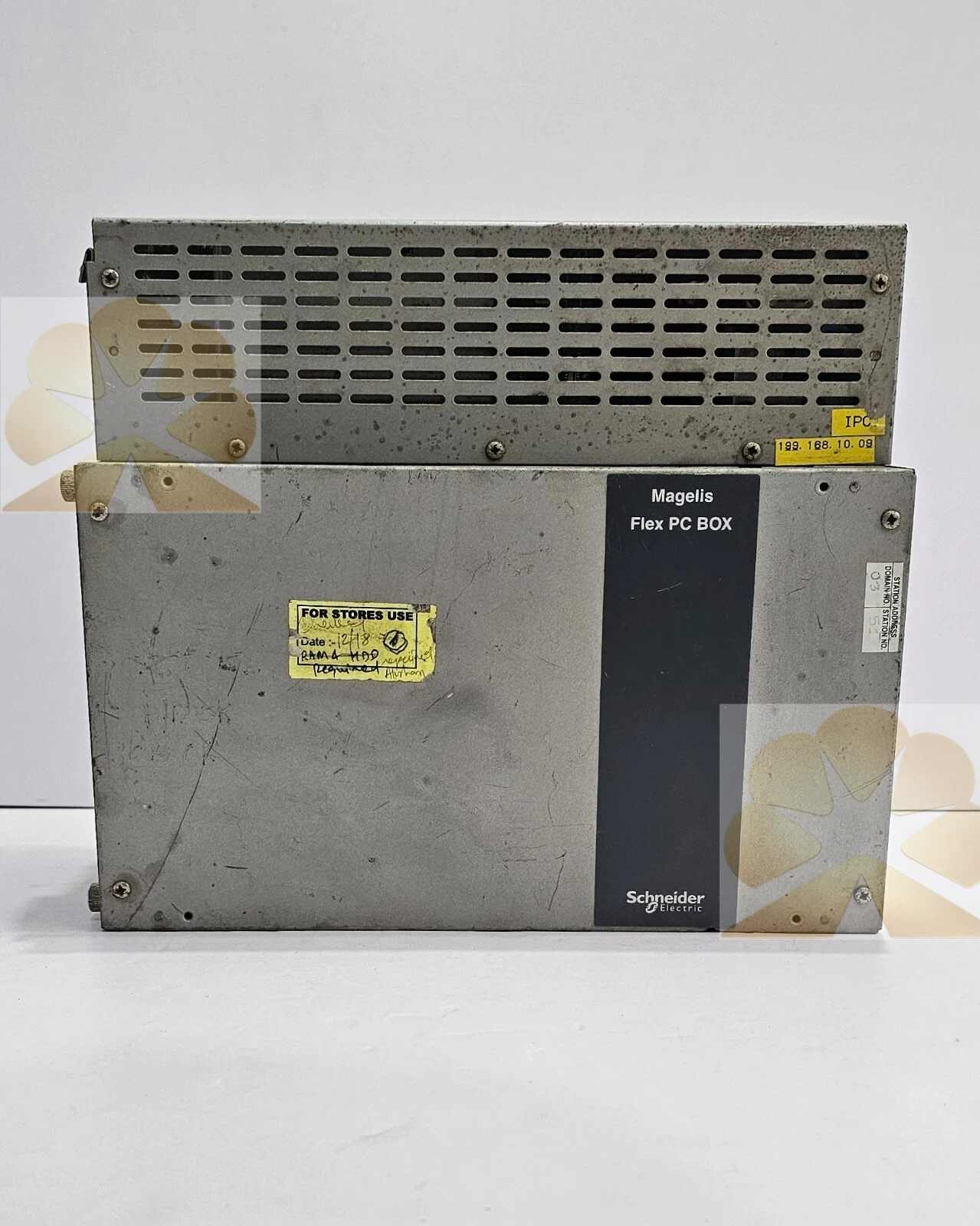

Schneider Electric MPCFN05NAX00N Magelis FlexBox F iPC Product Description

Overview

Schneider Electric MPCFN05NAX00N is an industrial PC from the Schneider Electric Magelis FlexBox F iPC series for industrial HMI and SCADA operation. This Schneider Electric industrial PC is an AC‑powered box IPC built for cabinet mounting, supporting Vijeo Designer and Vijeo Citect runtime platforms. The Schneider Electric MPCFN05NAX00N industrial PC comes with Core Duo 2 GHz processor, 1 GB RAM, 80 GB hard disk and pre‑installed Windows XP Professional. Equipped with two PCI expansion slots, dual Ethernet ports, VGA/DVI video output and DVD‑ROM, this Schneider Electric industrial PC enables flexible hardware expansion and multi‑screen display. MPCFN05NAX00N is widely deployed for new automation cabinet configuration, system upgrade and spare‑part replacement of legacy Magelis FlexBox IPC hardware.

Features

Schneider Electric MPCFN05NAX00N industrial PC adopts rugged box‑style construction optimized for continuous 24‑7 cabinet operation. This Schneider Electric industrial PC supports 100–240 V AC wide‑range input power supply and accepts an optional second hard disk for RAID1 mirror redundancy. Schneider Electric MPCFN05NAX00N industrial PC provides dual Ethernet interfaces to separate control network and office network for enhanced network security. The Schneider Electric MPCFN05NAX00N industrial PC reserves two standard PCI slots for fieldbus cards, acquisition boards and other custom expansion hardware. This Schneider Electric industrial PC carries VGA and DVI video outputs together with USB and serial ports for flexible connection of touch screens, printers and peripheral devices.

Specs

Schneider Electric MPCFN05NAX00N industrial PC, Magelis FlexBox F iPC

• Power supply: 100–240 V AC

• Processor: Core Duo 2 GHz

• Memory: 1 GB RAM

• Storage: 80 GB HDD, optional second HDD for RAID1

• Expansion: 2 × PCI slots

• Network: Dual Ethernet

• Video: VGA + DVI

• Optical drive: DVD‑ROM

• OS: Windows XP Professional pre‑installed

• Mounting: Cabinet installation

• Protection grade: IP20 for internal cabinet use

Principle

Schneider Electric MPCFN05NAX00N industrial PC runs Windows XP operating system to host Schneider Electric HMI/SCADA runtime software. It exchanges real‑time process data with PLCs, drives and field instruments via Ethernet or PCI fieldbus cards. The processor executes graphic screen rendering, data logging, alarm management and recipe handling for operators. Dual‑disk RAID1 configuration can be enabled to prevent data loss caused by single hard disk failure. Video signals are output to operator displays for on‑site monitoring and manual operation.

Applications

Schneider Electric MPCFN05NAX00N industrial PC is widely used in packaging machinery, material handling systems, water treatment, HVAC and general process automation projects. This Schneider Electric industrial PC serves as HMI workstation and small SCADA node for production line monitoring and recipe management. MPCFN05NAX00N fits retrofit and spare replacement of aging Magelis FlexBox IPC systems in factories that still run Vijeo Designer or Vijeo Citect projects. It is also used for data acquisition, production report generation and local alarm archiving for continuous process equipment.

Installation & Maintenance Notes

Follow official Schneider Electric hardware manuals while installing Schneider Electric MPCFN05NAX00N industrial PC. Ensure adequate cabinet ventilation to avoid overheating of this Schneider Electric industrial PC. Back up project files, runtime configuration and operating system image before replacement. Inspect hard disk health, cooling fans and Ethernet connection status periodically, especially in dusty and high‑vibration workshop environments. Confirm exact part number MPCFN05NAX00N during spare‑part swap‑out to guarantee OS compatibility, expansion slot layout and project software matching. Handle hard disk components carefully to prevent shock damage.
