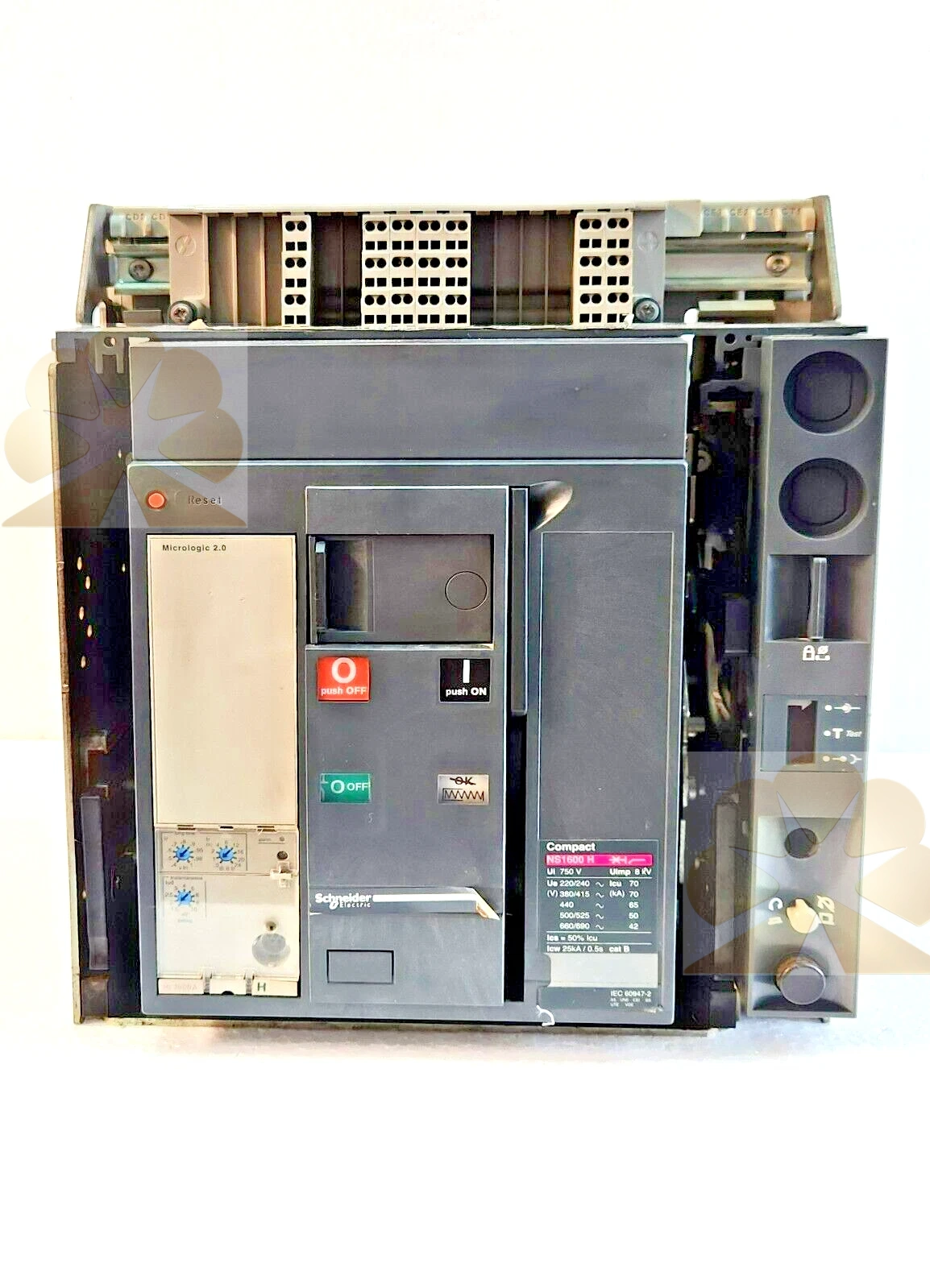

Schneider ComPacT NS1600 H Molded Case Circuit Breaker Product Description

Overview

Schneider ComPacT NS1600 H is a high-frame large-capacity molded case circuit breaker (MCCB), 1600 A frame size, H represents high short-circuit breaking capacity grade, belonging to Schneider ComPacT NS series. This Schneider breaker is used for low‑voltage AC distribution feeder, transformer secondary and bus protection, and it needs to be matched with MicroLogic electronic trip unit to realize configurable protection and electrical measurement. NS1600 H can be fixed or withdrawable type, widely used for new switchgear build, power distribution renovation and spare‑part replacement.

Features

Schneider ComPacT NS1600 H adopts optimized arc extinguishing system to handle high fault short-circuit current. This Schneider MCCB supports MicroLogic 2.0 / 5.0 / 6.0 trip units, configurable for LSI, LSIG protection (long‑time, short‑time delay, instantaneous, earth fault). NS1600 H integrates built‑in current transformers. When paired with advanced MicroLogic trip unit, it can measure three‑phase voltage, current, power, energy, power factor and harmonic data. The breaker supports optional motor operator, shunt release, undervoltage release, auxiliary and alarm contacts for remote control and status feedback. It supports Modbus communication to upload measurement data and fault records to SCADA and energy management systems.

Specs

Schneider ComPacT NS1600 H molded case circuit breaker

• Brand: Schneider Electric

• Series: ComPacT NS

• Model: NS1600 H

• Frame rated current: 1600 A

• Breaking grade: H

• Icu (415V): 70 kA

• Rated operational voltage Ue: Up to 690 V AC

• Poles: 3P / 4P

• Trip unit: MicroLogic 2.0 / 5.0 / 6.0 (separate selection)

• Mounting: Fixed / Withdrawable

• Standard: IEC 60947‑2

• Utilization category: B

Principle

Schneider ComPacT NS1600 H collects secondary current signals from internal CTs and sends them to the MicroLogic trip unit. The electronic trip unit compares the measured value with preset thresholds. Overload triggers long‑time delayed trip; selective short‑circuit fault triggers short‑time delay trip; severe short‑circuit triggers instantaneous trip. The arc chamber cools and cuts off the arc when contacts separate, isolating the fault circuit. Communication functions transmit real‑time electrical parameters and fault logs to upper monitoring platforms.

Applications

Schneider ComPacT NS1600 H is deployed in factory main distribution cabinets, commercial buildings, data center low‑voltage rooms, water treatment plants and auxiliary power systems of power stations. This Schneider large MCCB serves as protection for transformer outgoing feeders, bus tie breakers and heavy load branches. NS1600 H fits switchgear upgrade and spare replacement of ComPacT NS series 1600A frame breakers.

Installation & Maintenance Notes

Follow official Schneider ComPacT NS hardware manual during installation of NS1600 H. Torque the busbar terminals to the specified value to prevent overheating. Back up all protection settings before replacing the breaker or trip unit. After replacement, perform protection test and communication verification. Check the operating mechanism, contact condition and cabinet heat dissipation regularly. Confirm exact model NS1600 H, pole number and trip unit version before spare‑part swap‑out for compatibility.
