ABB SACE EMAX E2N/MS 20 Air Circuit Breaker Product Description

Product Overview

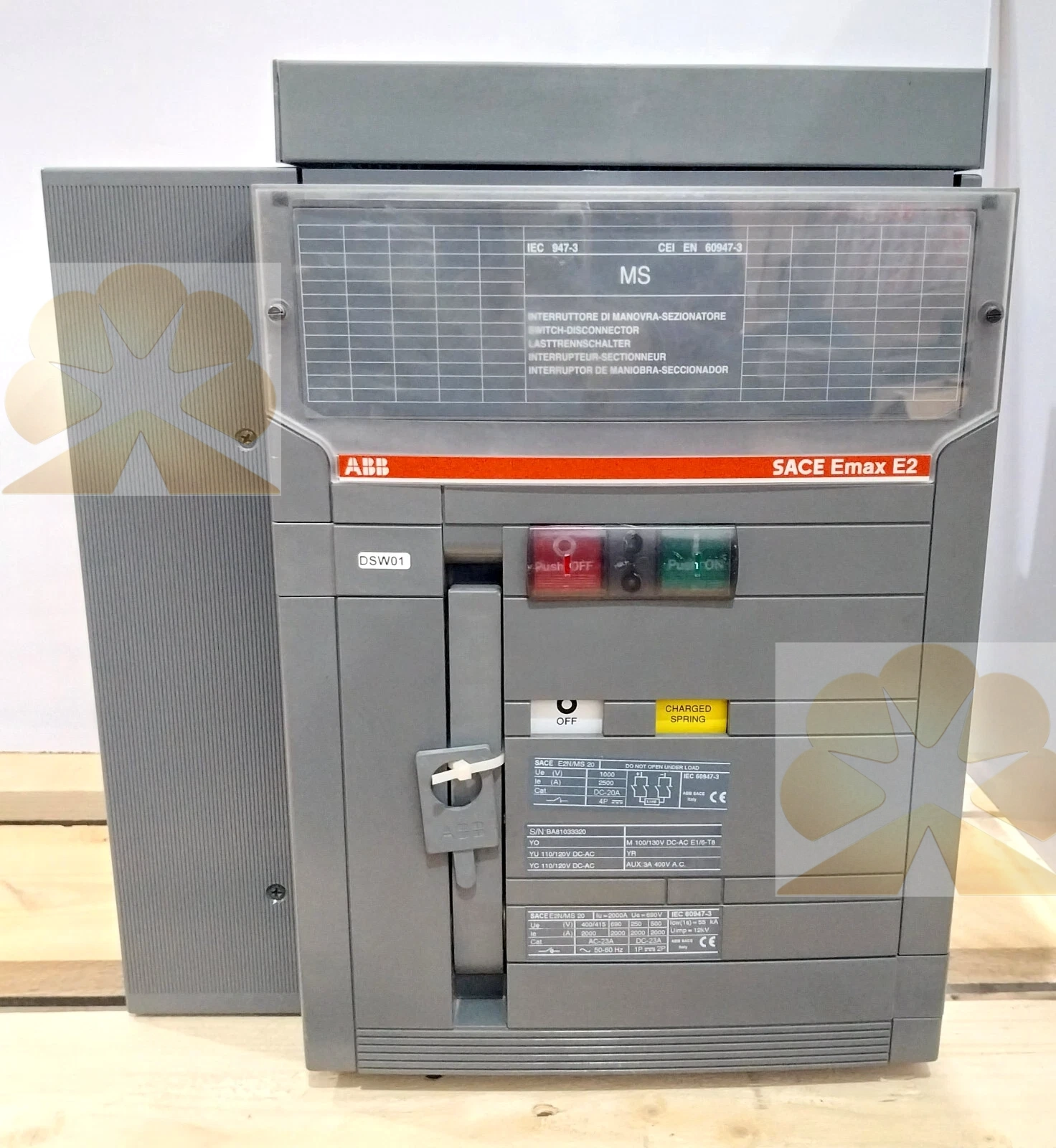

ABB SACE EMAX E2N/MS 20 is a heavy‑duty air circuit breaker from the ABB SACE Emax series, specially designed for DC and AC mixed‑use power distribution and energy storage systems. This ABB air circuit breaker delivers reliable fault isolation and multi‑directional short‑circuit protection for critical power loops. The ABB SACE EMAX E2N/MS 20 air circuit breaker features 2000A rated uninterrupted current, supporting AC and DC operating modes with high short‑circuit withstand capability. Available in both fixed and withdrawable configurations, ABB SACE EMAX E2N/MS 20 simplifies cabinet inspection, on‑site commissioning and spare‑part replacement inside low‑voltage and DC switchgear cabinets. As a dedicated MS variant breaker unit, ABB SACE EMAX E2N/MS 20 complies with IEC international standards for new energy, power conversion and industrial power distribution projects.

Core Technical Characteristics

ABB SACE EMAX E2N/MS 20 air circuit breaker adopts reinforced mechanical and arc‑extinguishing structure to handle bidirectional fault current in DC power circuits. This ABB air circuit breaker maintains stable mechanical and electrical durability for frequent switching cycles in energy storage and power conversion cabinets. ABB SACE EMAX E2N/MS 20 air circuit breaker can be equipped with PR121/P, PR122/P or dedicated DC protection trip units, allowing flexible configuration of overload, short‑time delay and instantaneous protection parameters according to AC or DC load requirements. The ABB SACE EMAX E2N/MS 20 air circuit breaker provides 1000V insulation voltage and 12kV impulse withstand voltage, resisting voltage surges and electromagnetic interference in high‑power converter environments. Its optimized short‑time withstand current performance ensures system stability under severe short‑circuit stress for both AC and DC busbars.

Main Functional Features

ABB SACE EMAX E2N/MS 20 air circuit breaker provides multi‑level electrical protection to safeguard power distribution infrastructure against AC and DC electrical faults. Long‑time overload protection prevents equipment damage caused by sustained over‑loading conditions. Short‑time delay function avoids unwanted tripping during large capacitor pre‑charge and motor startup current surges. Instantaneous short‑circuit protection cuts high fault current rapidly once short‑circuit incidents take place. The ABB SACE EMAX E2N/MS 20 air circuit breaker supports optional ground‑fault protection modules to raise safety levels for energy storage and critical power sites. This ABB air circuit breaker offers comprehensive status feedback signals, enabling remote monitoring and seamless connection with plant DCS, PLC and energy management control systems.

Typical Application Scenarios

ABB SACE EMAX E2N/MS 20 air circuit breaker serves as main protection device for energy storage converters, DC combiner cabinets and hybrid AC‑DC power distribution cabinets. This ABB air circuit breaker is widely deployed in battery energy storage stations, photovoltaic power stations, industrial power conversion rooms and heavy‑industry switch‑rooms. ABB SACE EMAX E2N/MS 20 air circuit breaker fits new energy system construction, switchgear retrofitting and replacement of aging Emax‑series MS breaker units. In bidirectional power flow busbar systems, the ABB SACE EMAX E2N/MS 20 air circuit breaker guarantees power supply continuity for vital power conversion and energy dispatch loads. Its withdrawable variant is highly preferred for sites requiring quick breaker swap‑out with minimal power‑off duration.

Installation & Maintenance Notes

Operators must follow official ABB hardware manuals while installing ABB SACE EMAX E2N/MS 20 air circuit breaker. Select compatible trip unit for AC or DC application, set correct wiring torque and protection parameters to guarantee stable performance of this ABB air circuit breaker. Conduct regular visual inspection and mechanical operation tests for ABB SACE EMAX E2N/MS 20 air circuit breaker under heavy‑load or high‑vibration working conditions. For withdrawable‑type ABB SACE EMAX E2N/MS 20, service technicians can extract the breaker main body without disconnecting primary busbars, effectively shortening maintenance downtime. Always confirm part designation SACE EMAX E2N/MS 20 before replacement to ensure full compatibility with existing AC‑DC power distribution rack systems.
