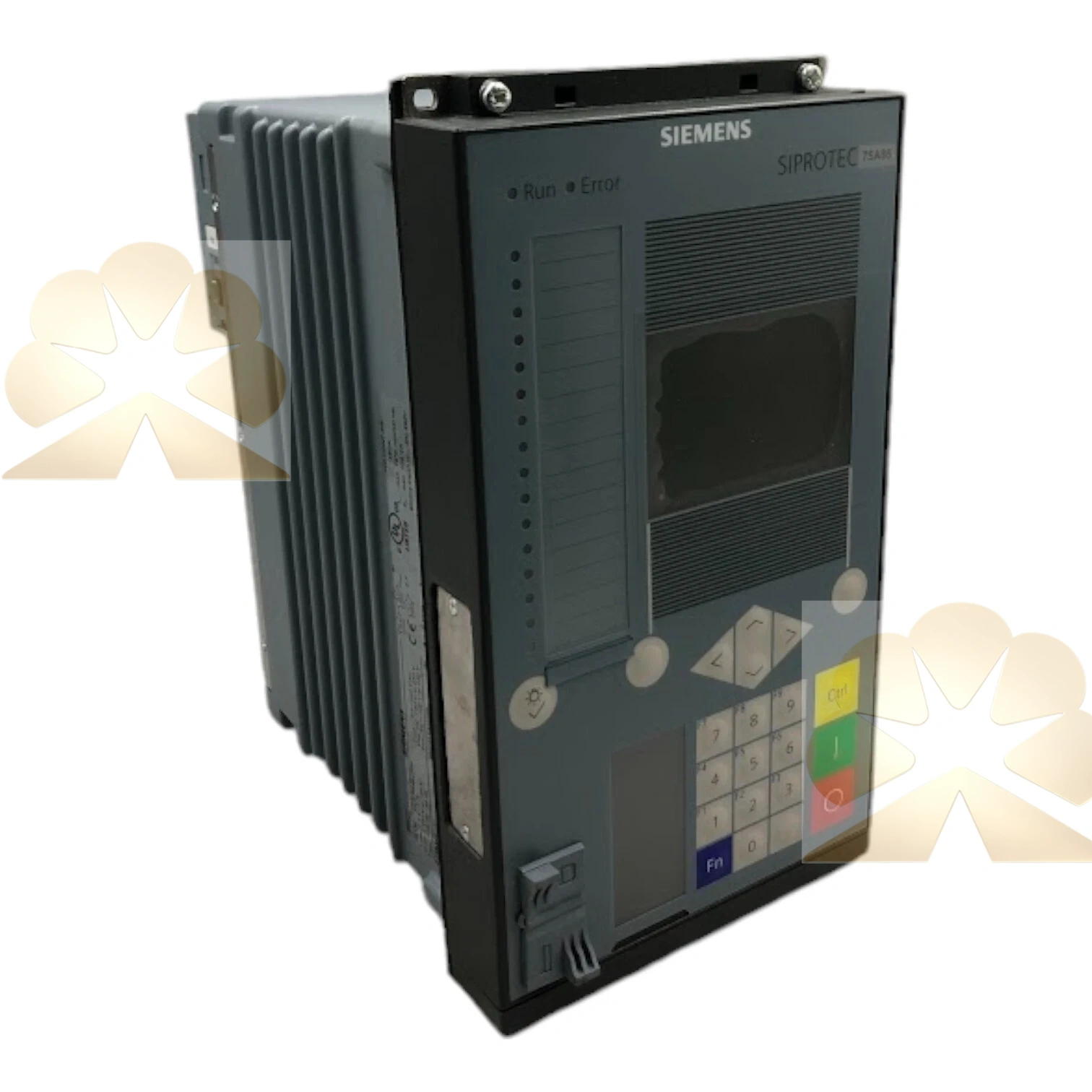

Siemens SIPROTEC 7SA86-P1A6392

The 7SA86-P1A6392 is a SIPROTEC 5 numerical distance protection relay for overhead lines and cable feeders, CT rated 5A, auxiliary supply range covering 240V AC/DC. This 7SA86-P1A6392 adopts multi-zone impedance distance protection, supporting phase-to-phase and earth fault measurement, minimum tripping time down to 9ms. It includes power swing blocking, out-of-step protection, CT saturation detection and Fault Locator Plus for accurate fault distance calculation. The suffix P1A6392 defines binary input/output quantity, communication option, housing type and conformal coating configuration of this specific variant.

This 7SA86-P1A6392 integrates 3-pole auto-reclosing, synchrocheck, bay control and switchgear interlock functions. It carries disturbance recorder, event sequence logging and power quality monitoring. It supports hot-plug communication modules for IEC 61850, IEC 60870-5-103 and Modbus TCP with PRP/HSR redundancy. Configuration and commissioning are completed via DIGSI 5 software. The front graphic display supports local measured value viewing, setting check and manual bay operation. It can also provide directional overcurrent and earth fault backup protection for transformers and generators.

The 7SA86-P1A6392 is widely used in transmission and sub-transmission substations, industrial power plants and large utility ring networks. The SIPROTEC 5 7SA86 is Siemens current mainstream line distance protection platform. Many substation maintenance teams stock the 7SA86-P1A6392 as spare relay for bay retrofit and emergency replacement of transmission line protection panels.
