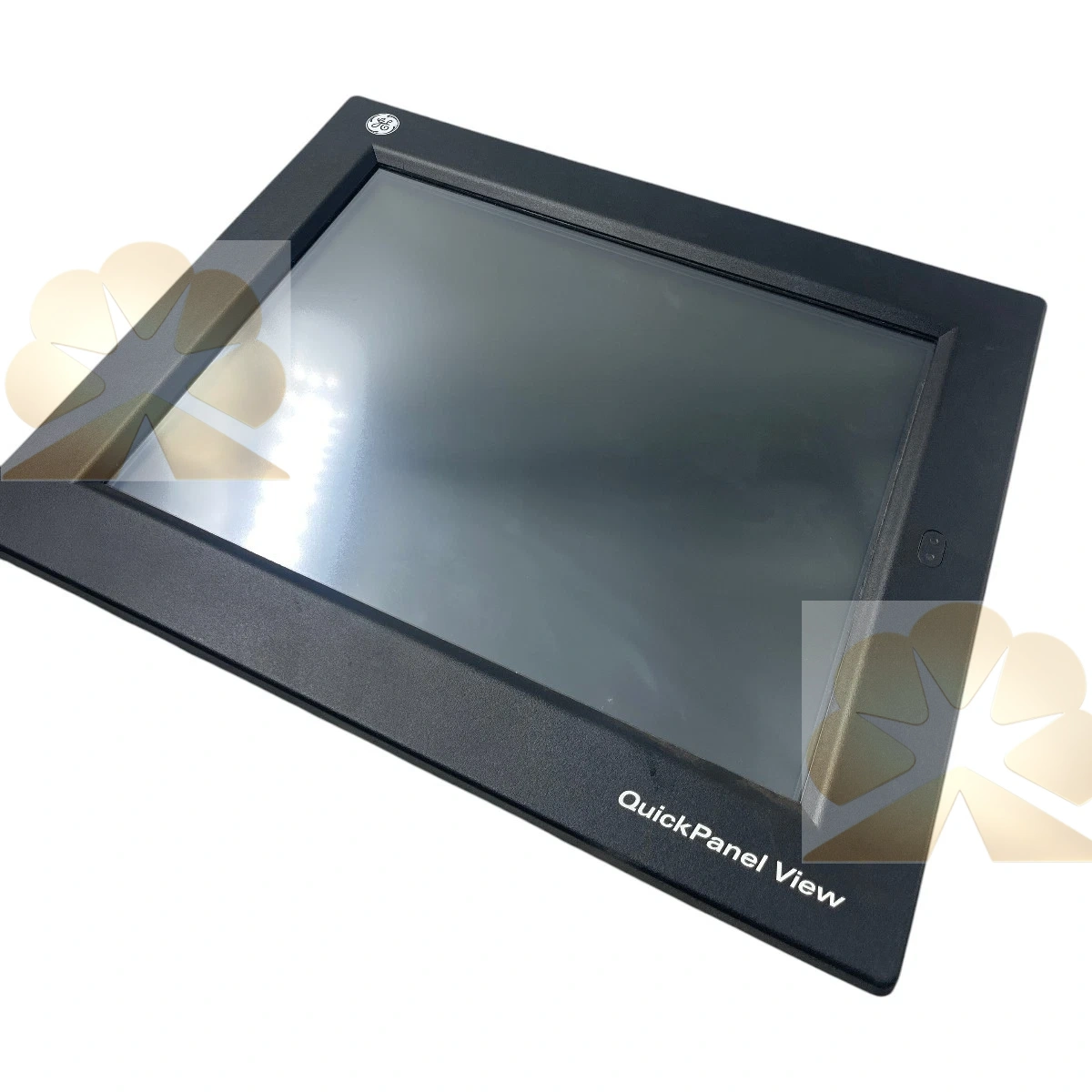

GE IC754VGF15CTD-KH

The IC754VGF15CTD-KH is a 15-inch QuickPanel View HMI operator terminal from GE Fanuc (now Emerson), running Windows Embedded operating system with Proficy Machine Edition visualization software. This IC754VGF15CTD-KH features a 1024×768 TFT color resistive touch screen, front panel rated IP66 / NEMA 4X for cabinet flush mounting. The IC754VGF15CTD-KH is powered by 24VDC, equipped with dual Ethernet ports, RS232/RS485 serial ports and USB interface, supporting Modbus TCP, EtherNet/IP and serial PLC communication.

This IC754VGF15CTD-KH supports real-time data display, trend recording, alarm management, recipe control and local manual operation. It has built-in data logging and web server function, multi-language screen support. The suffix KH defines the hardware revision, certification and configuration variant of this unit. It adopts fanless natural cooling design, suitable for continuous long-time operation in factory cabinet environments.

The IC754VGF15CTD-KH is widely used for machine tools, packaging lines, power plant auxiliary control and process skid local operator interface. The QuickPanel View series has been discontinued. Most available IC754VGF15CTD-KH units are tested surplus spare parts for HMI screen replacement and project retrofit of legacy GE Fanuc automation systems.
