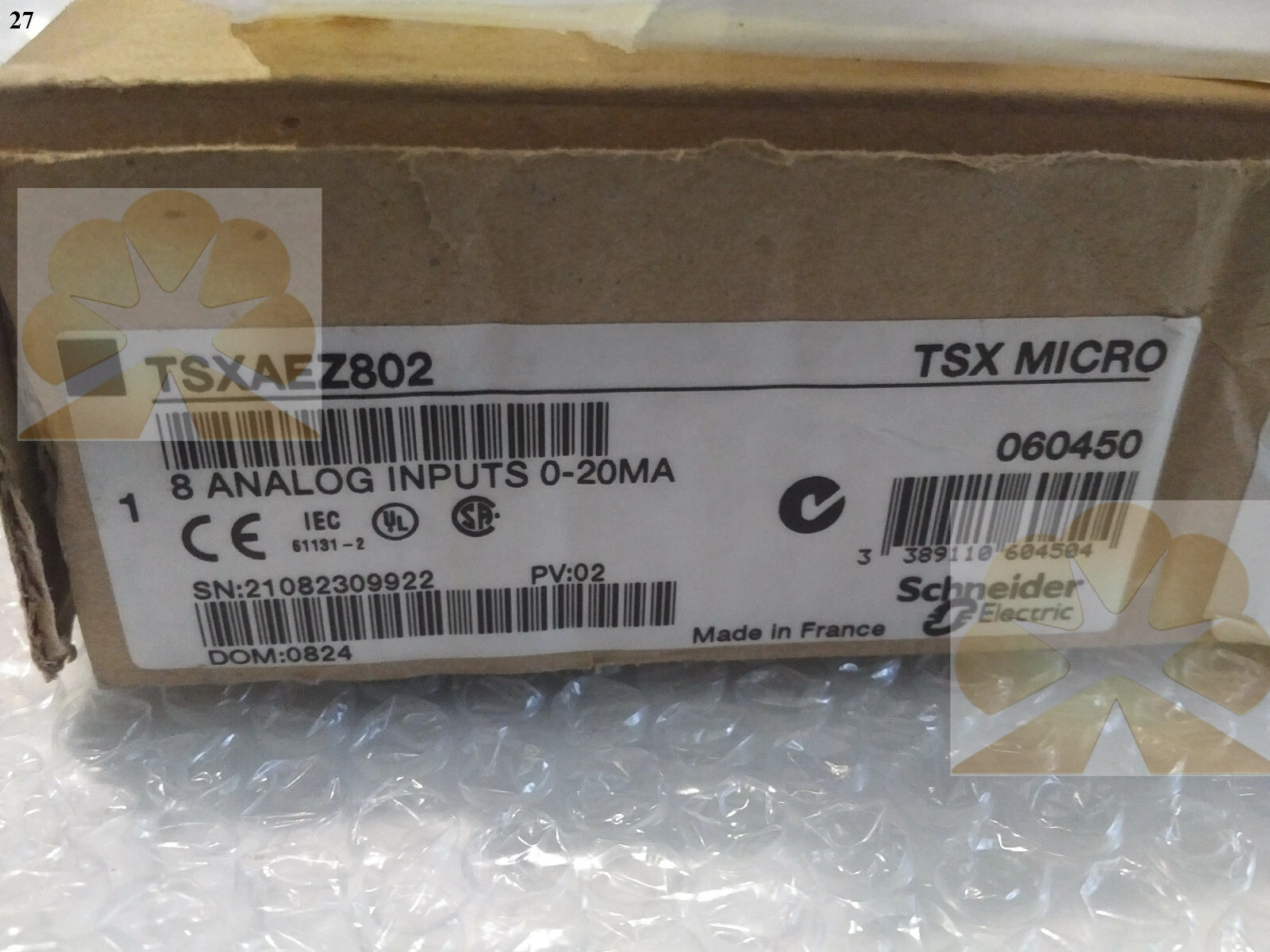

SCHNEIDER TSXAEZ802

Product Details SCHNEIDER TSXAEZ802 is a high-precision analog input module for Modicon TSX Micro PLC control systems. This analog input module provides 8 channels of current signal acquisition with 12-bit A/D conversion, supporting 0~20mA and 4~20mA input signals. This analog input module features 250Ω input impedance and 1000VAC isolation protection between field side and PLC internal circuit. This analog input module plugs directly onto TSX Micro backplane, consuming only 60mA rack current for low power operation.

This unit acts as core process signal acquisition unit for industrial process monitoring. The process signal acquisition unit receives real-time signals from pressure transmitters, temperature sensors and flow meters. The process signal acquisition unit converts analog current signals into digital values for PLC logic calculation and closed-loop regulation. The process signal acquisition unit has 32ms acquisition cycle and stable reading performance in workshop environments with electromagnetic interference.

This obsolete spare part is reliable legacy PLC expansion card for old automation system maintenance. The legacy PLC expansion card supports DIN rail installation and screw terminal wiring for convenient field connection. The legacy PLC expansion card is widely used in water treatment, hydraulic stations, packaging machinery and heating process control lines. The legacy PLC expansion card can replace damaged original modules to restore analog signal collection function and reduce production downtime.
