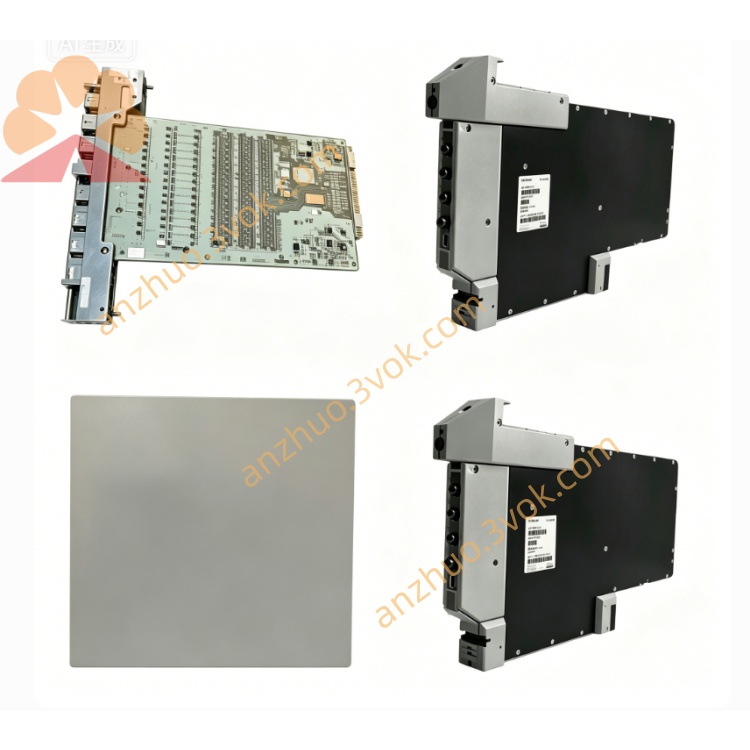

Foxboro FBM241D Product Description

The Foxboro FBM241D (part number P0914WP / RH914WP) is a compact, high-reliability 8-channel discrete input / 8-channel discrete output (8DI/8DO) module in the Foxboro I/A Series and EcoStruxure Foxboro DCS portfolio (Schneider Electric). As the enhanced high-density variant of the FBM241 family, it is optimized for external excitation, high-channel-count discrete control, and space-constrained panels, delivering robust galvanic isolation, wide voltage compatibility, and comprehensive diagnostics for harsh process industries. It serves as the critical interface between the DCS and field on/off devices—including limit switches, pushbuttons, relay contacts, solenoid valves, motor starters, and alarm beacons—supporting multi-voltage discrete signals without external conditioning. With hot-swap capability, redundant communication, and ruggedized construction, the FBM241D ensures reliable discrete control in demanding industrial environments.

The FBM241D provides 8 fully group-isolated discrete input channels designed exclusively for external excitation (no internal input power), making it ideal for systems using external 24 VDC, 120 VAC, or 240 VAC field power. Inputs accept a broad voltage range: 15–60 VDC, 120 VAC/125 VDC, or 240 VAC field signals, with logic thresholds defined as logic 0 (0–20 VAC/VDC) and logic 1 (65–150 VDC or 0–132 VAC). Each input includes hardware noise filtering and software-configurable debounce (4/8/16/32 ms or disabled) to stabilize signals in electrically noisy environments.

Complementing the inputs are 8 fully group-isolated solid-state discrete output channels, rated for external voltages up to 120 VAC/240 VAC or 125 VDC with a maximum current of 2 A per channel. Outputs are normally open (NO) switch-type, supporting inductive loads like relays and contactors, with per-channel fusing, short-circuit protection, and overcurrent limiting for enhanced safety. Blown-fuse indication is provided for rapid fault localization.

A defining feature of the FBM241D is high-density group galvanic isolation (channel group-to-group and group-to-backplane), with 2500 V RMS isolation (1-minute withstand), eliminating ground loops and protecting the module and DCS from electrical transients. This isolation scheme is optimized for external excitation systems, ensuring signal integrity even in high-noise environments.

The module supports hot-swap capability, allowing online installation or replacement without process shutdown, minimizing maintenance downtime. Communication with Foxboro controllers (FCP/ZCP) uses a redundant 2 Mbps HDLC fieldbus, ensuring continuous, error-checked data transmission. Onboard LED indicators display power, communication link, and individual channel status (active/fault), enabling fast on-site diagnostics. Advanced diagnostics monitor channel health, communication integrity, and power supply status, reporting faults to the DCS in real time.

The FBM241D features a ultra-compact, rugged design with a conformal-coated PCB and durable housing, rated for ISA S71.04 Class G3 harsh environments (dust, moisture, vibration). It accepts 24 VDC redundant power input for operational reliability, with automatic failover if the primary supply fails.

Manufacturer: Foxboro (Schneider Electric)Compatible Systems: Foxboro I/A Series DCS (v7.0+), EcoStruxure Foxboro (Foxboro Evo™) DCSModel/Part Number: FBM241D (P0914WP / RH914WP)Module Type: 8-channel discrete input (external excitation) / 8-channel discrete output (8DI/8DO)Digital Inputs: 8 group-isolated channels; external excitation only; supports 15–60 VDC, 120 VAC/125 VDC, 240 VAC signalsInput Logic: Logic 0 (open contact / 0–20 VAC/VDC), Logic 1 (closed contact / 65–150 VDC or 0–132 VAC)Input Filtering: Software-configurable debounce (4/8/16/32 ms or disabled)Digital Outputs: 8 group-isolated solid-state NO switches; 120 VAC/240 VAC or 125 VDC external source, 2 A max per channel, per-channel fuse protectionIsolation: Group-to-group and group-to-backplane galvanic isolation (2500 V RMS, 1-minute withstand)Communication: Redundant 2 Mbps HDLC fieldbus (to FCP/ZCP)Power Supply: 24 VDC (+5%/–10% tolerance), redundant input supported; no internal input powerPower Consumption: Max 4 W; typical 3 WOperating Temperature: –40 °C to +70 °C (extended range)Storage Temperature: –40 °C to +85 °CRelative Humidity: 5%–95% non-condensingVibration: 0.05 g rms, 5–500 HzShock: 5 g, 20 ms half-sineAltitude: –300 m to +3,000 mEnclosure: Rugged housing, conformal-coated PCB; IP20 ratingDimensions (W × H × D): Approximately 35 mm × 170 mm × 150 mmWeight: Approximately 0.4 kgCertifications: CE, UL, CSA, ATEX Zone 2, IECEx, ISA S71.04 Class G3; EMC Class A (IEC 61000-6-2)Reliability: MTBF > 100,000 hours; hot-swap capable; redundant communication and power support; high-density group isolation for external excitation systems.

The FBM241D is ideal for process industries requiring high-density discrete I/O with group isolation and external excitation support in space-constrained panels. In chemical and petrochemical plants, it monitors valve limit switches, reactor interlocks, and conveyor safety contacts powered by external 240 VAC sources, while driving solenoid valves, motor starters, and alarm beacons for batch and continuous processes.

In oil and gas facilities—including refineries, offshore platforms, and gas processing plants—it interfaces with wellhead pressure switches, safety shutdown contacts, and equipment status relays operating at 120/240 VAC, ensuring safe operation in hazardous areas with high noise immunity.

In power generation, the FBM241D monitors breaker status, turbine interlocks, and boiler safety sensors with external DC excitation, supporting safe startup, shutdown, and load regulation with fast fault detection.

In water and wastewater treatment, it tracks level switches, flow interlocks, and pump status using 15–60 VDC external power, controlling dosing pumps, valves, and aeration equipment for precise, compliant process control.

In pharmaceutical, food and beverage, and general manufacturing, its ultra-compact size, extended temperature range, high-density group isolation, and external excitation compatibility make it perfect for panel-side I/O consolidation, machine interlocking, and alarm management in both hygienic and harsh environments.

The FBM241D mounts on standard DIN rails in Foxboro I/A Series or EcoStruxure Foxboro cabinets, attaching to a dedicated baseplate for backplane power and redundant HDLC fieldbus communication. Field wiring connects to a mating termination assembly (TA) with screw terminals, per-channel fuses, and knife disconnect/test sockets for maintenance. The TA supports local/remote wiring and accommodates 15–60 VDC, 120 VAC/125 VDC, or 240 VAC signals.

Configuration is performed via Foxboro DCS software: set input debounce time, configure output fail-safe states (hold last value or off), map I/O channels to DCS tags, enable redundant communication/power, and set fault reporting parameters. The module is plug-and-play compatible with existing Foxboro systems and supports hot-swap replacement for minimal downtime.

For high availability, two FBM241D modules can be configured as a redundant pair with automatic fault detection and switchover, ensuring seamless control continuation if one module fails.

Routine maintenance includes visual inspection for physical damage, loose connections, or dust buildup, and verification of front-panel LEDs for normal power, communication, and channel status. Periodic testing of input accuracy, output switching performance, and redundant failover is recommended, especially in high-vibration or corrosive environments.

The conformal coating protects against moisture and dust, reducing cleaning frequency. Faulty modules can be repaired by authorized Schneider Electric service providers, with standard and expedited repair options available.

The FBM241D comes with a 12-month standard warranty against manufacturing defects, with extended warranty options available for long-term operational reliability.
