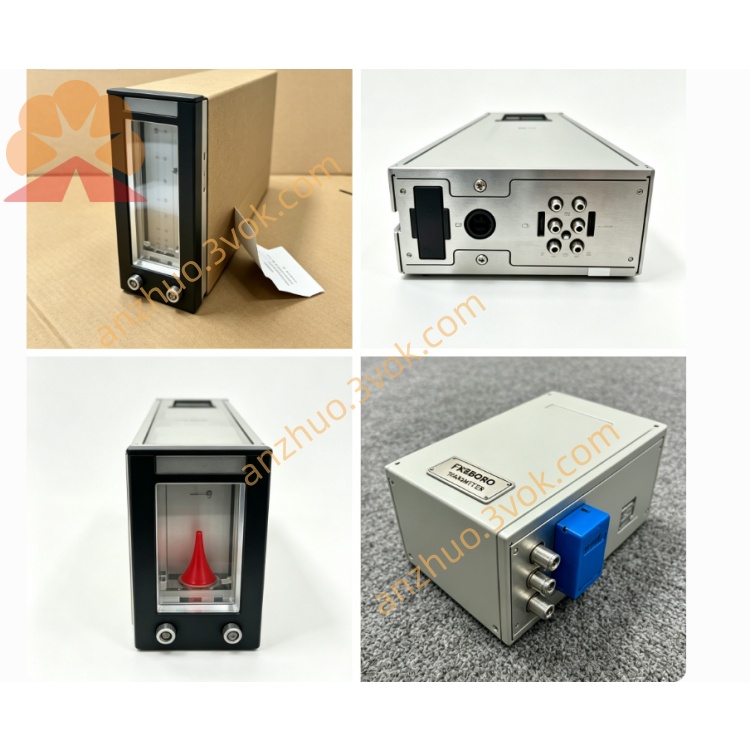

Foxboro FBM241C Product Description

The Foxboro FBM241C (part number P0914WM) is a compact, high-reliability 8-channel discrete input / 8-channel discrete output (8DI/8DO) module for the Foxboro I/A Series and EcoStruxure Foxboro DCS (Schneider Electric). Designed as an enhanced variant in the FBM241 family, it delivers flexible, multi-voltage signal handling with group galvanic isolation and ruggedized construction, optimized for external excitation applications and harsh industrial environments. It interfaces the DCS with field on/off devices—including limit switches, pushbuttons, relay contacts, solenoid valves, motor starters, and alarm beacons—supporting wide-range AC/DC signals without external conditioning. With hot-swap capability, redundant communication, and comprehensive diagnostics, the FBM241C ensures reliable discrete control in process industries.

The FBM241C provides 8 fully group-isolated discrete input channels designed for external excitation (no internal input power). Inputs accept a broad voltage range: 15–60 VDC, 120 VAC/125 VDC, or 240 VAC field signals, with logic thresholds defined as logic 0 (0–20 VAC/VDC) and logic 1 (65–150 VDC or 0–132 VAC). Each input includes hardware noise filtering and software-configurable debounce (4/8/16/32 ms or no filtering) to stabilize signals in electrically noisy environments.

Complementing the inputs are 8 fully group-isolated solid-state discrete output channels, rated for external voltages up to 120 VAC/240 VAC or 125 VDC with a maximum current of 2 A per channel. Outputs are normally open (NO) switch-type, supporting inductive loads like relays and contactors, with per-channel fusing, short-circuit protection, and overcurrent limiting for enhanced safety. Blown-fuse indication is provided for rapid fault localization.

A core characteristic of the FBM241C is group galvanic isolation (channel group-to-group and group-to-backplane), eliminating ground loops and protecting the module and DCS from electrical transients—ideal for systems using external power sources for field excitation. The module supports hot-swap capability, allowing online installation or replacement without process shutdown, minimizing maintenance downtime.

Communication with Foxboro controllers (FCP/ZCP) uses a redundant 2 Mbps HDLC fieldbus, ensuring continuous, error-checked data transmission. Onboard LED indicators display power, communication link, and individual channel status (active/fault), enabling fast on-site diagnostics. Advanced diagnostics monitor channel health, communication integrity, and power supply status, reporting faults to the DCS in real time.

The FBM241C features a rugged, compact design with a conformal-coated PCB and durable ABS housing, rated for ISA S71.04 Class G3 harsh environments (dust, moisture, vibration). It accepts 24 VDC redundant power input for operational reliability, with automatic failover if the primary supply fails.

Manufacturer: Foxboro (Schneider Electric)Compatible Systems: Foxboro I/A Series DCS (v7.0+), EcoStruxure Foxboro (Foxboro Evo™) DCSModel/Part Number: FBM241C (P0914WM)Module Type: 8-channel discrete input (external excitation) / 8-channel discrete output (8DI/8DO)Digital Inputs: 8 group-isolated channels; external excitation; supports 15–60 VDC, 120 VAC/125 VDC, 240 VAC signalsInput Logic: Logic 0 (open contact / 0–20 VAC/VDC), Logic 1 (closed contact / 65–150 VDC or 0–132 VAC)Input Filtering: Software-configurable debounce (4/8/16/32 ms or disabled)Digital Outputs: 8 group-isolated solid-state NO switches; 120 VAC/240 VAC or 125 VDC external source, 2 A max per channel, per-channel fuse protectionIsolation: Group-to-group and group-to-backplane galvanic isolation (2500 V RMS, 1-minute withstand)Communication: Redundant 2 Mbps HDLC fieldbus (to FCP/ZCP)Power Supply: 24 VDC (+5%/–10% tolerance), redundant input supported; no internal input powerPower Consumption: Max 4 W; typical 3 WOperating Temperature: –40 °C to +70 °C (extended range)Storage Temperature: –40 °C to +85 °CRelative Humidity: 5%–95% non-condensingVibration: 0.05 g rms, 5–500 HzShock: 5 g, 20 ms half-sineAltitude: –300 m to +3,000 mEnclosure: Rugged ABS housing, conformal-coated PCB; IP20 ratingDimensions (W × H × D): Approximately 35 mm × 170 mm × 150 mmWeight: Approximately 0.4 kgCertifications: CE, UL, CSA, ATEX Zone 2, IECEx, ISA S71.04 Class G3; EMC Class A (IEC 61000-6-2)Reliability: MTBF > 100,000 hours; hot-swap capable; redundant communication and power support; group isolation for external excitation systems

The FBM241C is ideal for process industries requiring multi-voltage discrete I/O with group isolation and external excitation support. In chemical and petrochemical plants, it monitors valve limit switches, reactor interlocks, and conveyor safety contacts powered by external 240 VAC sources, while driving solenoid valves, motor starters, and alarm beacons for batch and continuous processes.

In oil and gas facilities—including refineries, offshore platforms, and gas processing plants—it interfaces with wellhead pressure switches, safety shutdown contacts, and equipment status relays operating at 120/240 VAC, ensuring safe operation in hazardous areas with high noise immunity.

In power generation, the FBM241C monitors breaker status, turbine interlocks, and boiler safety sensors with external DC excitation, supporting safe startup, shutdown, and load regulation with fast fault detection.

In water and wastewater treatment, it tracks level switches, flow interlocks, and pump status using 15–60 VDC external power, controlling dosing pumps, valves, and aeration equipment for precise, compliant process control.

In pharmaceutical, food and beverage, and general manufacturing, its compact size, extended temperature range, group isolation, and external excitation compatibility make it perfect for panel-side I/O consolidation, machine interlocking, and alarm management in both hygienic and harsh environments.

The FBM241C mounts on standard DIN rails in Foxboro I/A Series or EcoStruxure Foxboro cabinets, attaching to a dedicated baseplate for backplane power and redundant HDLC fieldbus communication. Field wiring connects to a mating termination assembly (TA) with screw terminals, per-channel fuses, and knife disconnect/test sockets for maintenance. The TA supports local/remote wiring and accommodates 15–60 VDC, 120 VAC/125 VDC, or 240 VAC signals.

Configuration is performed via Foxboro DCS software: set input debounce time, configure output fail-safe states (hold last value or off), map I/O channels to DCS tags, enable redundant communication/power, and set fault reporting parameters. The module is plug-and-play compatible with existing Foxboro systems and supports hot-swap replacement for minimal downtime.

For high availability, two FBM241C modules can be configured as a redundant pair with automatic fault detection and switchover, ensuring seamless control continuation if one module fails.

Routine maintenance includes visual inspection for physical damage, loose connections, or dust buildup, and verification of front-panel LEDs for normal power, communication, and channel status. Periodic testing of input accuracy, output switching performance, and redundant failover is recommended, especially in high-vibration or corrosive environments.

The conformal coating protects against moisture and dust, reducing cleaning frequency. Faulty modules can be repaired by authorized Schneider Electric service providers, with standard and expedited repair options available.

The FBM241C comes with a 12-month standard warranty against manufacturing defects, with extended warranty options available for long-term operational reliability。
