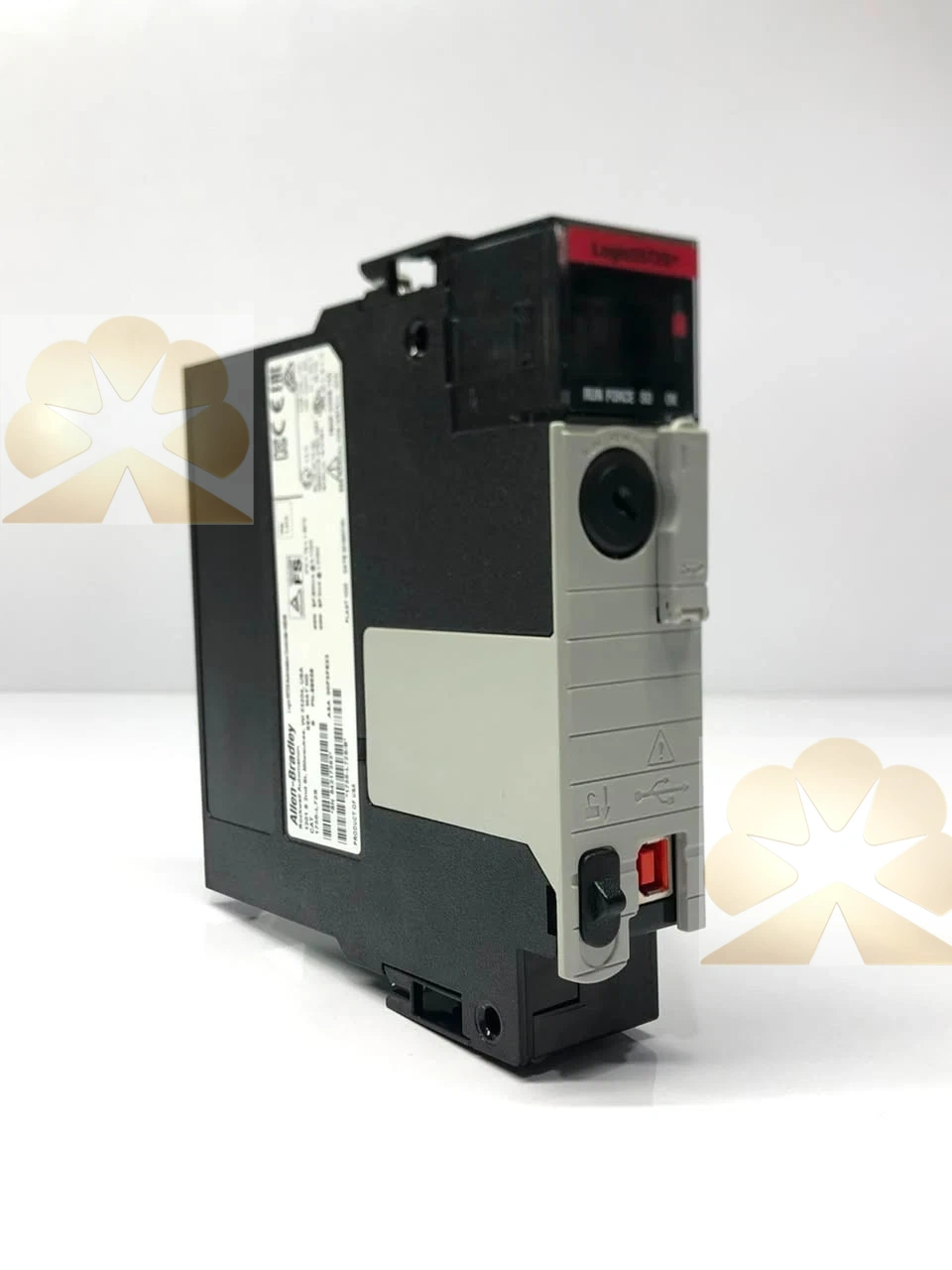

Allen‑Bradley 1756-L72 ControlLogix Controller Product Description

Overview

Allen‑Bradley 1756-L72 (Logix5572) belongs to the ControlLogix 1756-L7x series programmable automation controller from Rockwell Automation. This Allen‑Bradley 1756-L72 has 4 MB user memory, onboard USB programming port, SD card slot for non-volatile storage, no integrated Ethernet port, and mounts in the ControlLogix 1756 chassis backplane. It executes sequential logic, motion control, process regulation and interlock protection, widely used for new automation cabinet build, retrofit and spare‑part replacement of ControlLogix controller systems.

Features

Allen‑Bradley 1756-L72 supports multi-task scheduling, up to 32 tasks and 100 programs per task, supporting continuous, periodic and event-triggered tasks for high-speed interlock and motion synchronization. This Allen‑Bradley 1756-L72 works with 1756 series I/O, power supply and communication modules including EtherNet/IP, ControlNet, DeviceNet and ControlNet adapters. 1756-L72 supports controller redundancy when paired with redundancy modules, and supports CIP Motion, SERCOS and analog motion control for servo and drive axes. It supports online program edit, fault logging, tag-based programming, and data traceability via Studio5000 Logix Designer software. The SD card can store firmware, program files and tag data for fast recovery. It supports hot-swap of I/O modules and continuous operation under industrial cabinet environments, and complies with UL, cULus and CE certifications.

Specs

• Brand: Allen‑Bradley (Rockwell Automation)

• Series: ControlLogix 1756-L7x

• Model: 1756-L72

• Processor: Logix5572

• User memory: 4 MB

• I/O memory: 0.98 MB

• Local port: USB for programming

• Storage: SD card slot

• Max I/O: Up to 128,000 points

• Task: 32 tasks maximum

• Software: Studio5000 Logix Designer

• Mounting: Plug-in inside 1756 chassis

• Redundancy: Support redundant configuration with matching modules

• Standard: UL, cULus, CE

Principle

Allen‑Bradley 1756-L72 communicates with chassis backplane to exchange data with I/O modules, communication adapters and specialty modules. It executes tag-based control logic according to configured task priority, sends command signals to drives and servo axes, and receives feedback from field sensors. The USB port connects to PC for programming and monitoring; SD card retains program and firmware data independent of controller battery. The controller continuously monitors module health, backplane status and fault conditions, and triggers safe state logic when critical faults are detected.

Applications

Allen‑Bradley 1756-L72 is deployed in automotive assembly lines, material handling systems, packaging machinery, water treatment plants, petrochemical auxiliary control and large process automation skids. This Allen‑Bradley 1756-L72 controller is suitable for medium-scale control systems combining discrete logic, process control and multi-axis motion. 1756-L72 fits automation rack overhaul and spare replacement of ControlLogix L72 controllers.

Installation & Maintenance Notes

Follow official Rockwell ControlLogix user manual during installation of Allen‑Bradley 1756-L72. Use ESD protection before handling the controller. Back up the program, tag values, task configuration and firmware image before replacement. After replacement, verify backplane slot number, communication module routing and redundancy sync if redundant system. Confirm exact part number 1756-L72; 1756-L71 / L73 have different memory capacity and cannot be substituted directly.
