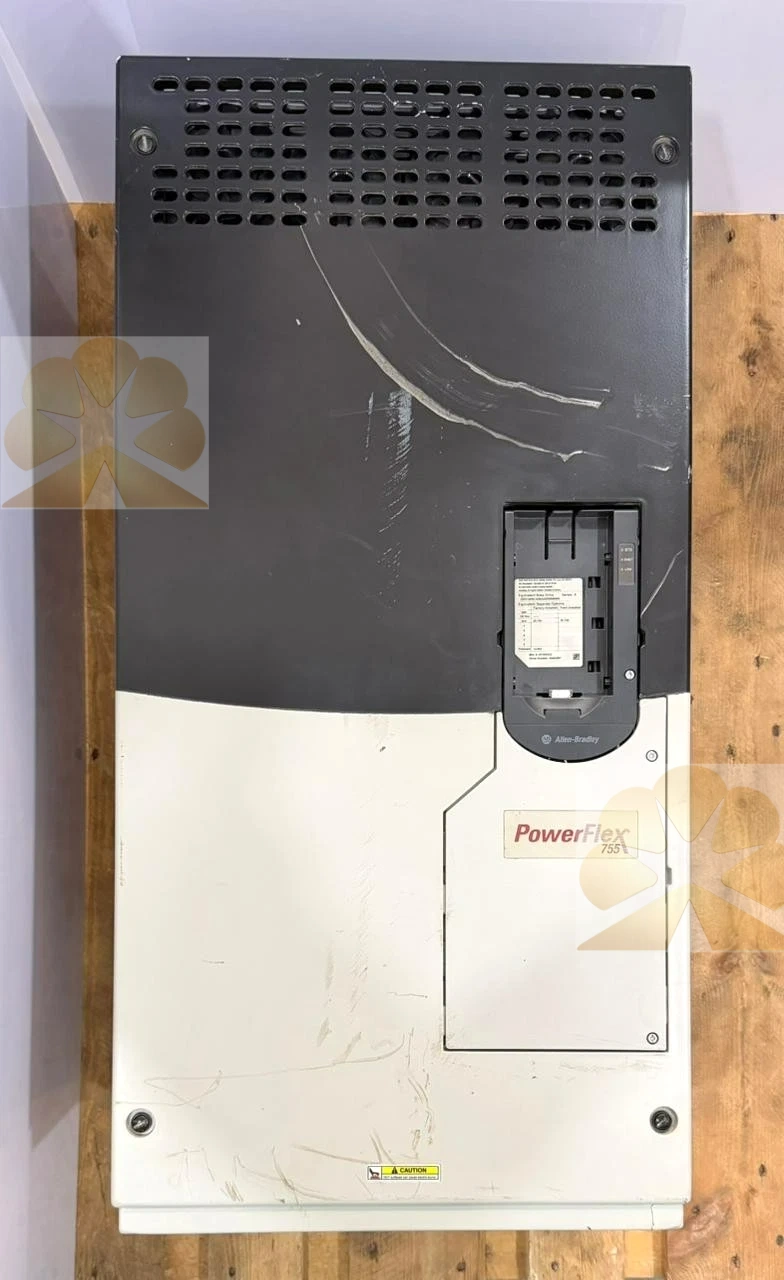

ALLEN-BRADLEY 20G1ANC456AA0NNNNN Variable Frequency Drive

Overview

The ALLEN-BRADLEY 20G1ANC456AA0NNNNN is an air-cooled PowerFlex 755 AC drive designed for high-performance industrial motor control. This ALLEN-BRADLEY 20G1ANC456AA0NNNNN belongs to the PowerFlex 755 series from Rockwell Automation, delivering stable torque and speed regulation for heavy-duty continuous process loads. The ALLEN-BRADLEY 20G1ANC456AA0NNNNN supports flexible network integration and optional safety functions to match modern automation system requirements. It operates on three-phase 400 VAC power supply and suits demanding factory environments where reliable variable speed control is required. This drive offers generous overload capacity and scalable hardware options for pumps, fans and process machinery.

Features

This variable frequency drive supports high-precision control for induction and permanent magnet motors, with built-in protection against overcurrent, overvoltage, undervoltage, overheating and motor thermal faults to protect the ALLEN-BRADLEY 20G1ANC456AA0NNNNN and connected motors. The ALLEN-BRADLEY 20G1ANC456AA0NNNNN comes with embedded Ethernet/IP capability and supports Device Level Ring topology for fault-tolerant network communication. Operators can configure parameters locally or remotely, enabling quick commissioning and convenient routine maintenance. Integrated dynamic braking transistor and EMC filter help reduce electrical interference and support fast deceleration control. Its forced-air cooling system maintains stable thermal performance under long continuous operation.

Specs

The ALLEN-BRADLEY 20G1ANC456AA0NNNNN is a Frame 7 unit with rated output current of 456 A, rated at 250 kW normal duty and 200 kW heavy duty. It adopts IP20 open type construction, with AC input and precharge circuit and no DC terminals. The model coding defines standard protection, air cooling and filter configuration without additional HIM fitted. It follows global industrial certification standards and supports adjustable switching frequency to balance acoustic noise and control response. Open-loop and closed-loop control modes are available for different motor feedback setups.

Principle

The ALLEN-BRADLEY 20G1ANC456AA0NNNNN converts fixed-frequency three-phase AC mains power into adjustable voltage and adjustable frequency AC output to regulate motor speed and torque. Internal power modules modify output signals in real time according to control setpoints from the automation host. The core control processor continuously samples motor running data and corrects output to preserve steady torque performance. The communication interface of the ALLEN-BRADLEY 20G1ANC456AA0NNNNN exchanges data with PLC and HMI systems to realize remote monitoring, fault diagnosis and automatic sequence control.

Applications

The ALLEN-BRADLEY 20G1ANC456AA0NNNNN is widely used in heavy-duty industrial drive scenarios. Typical loads include large fans, water supply and wastewater pumps, conveyors, extruders and other process equipment. It fits industries such as water treatment, mining, chemical, pulp and paper. With its EtherNet/IP connectivity, the ALLEN-BRADLEY 20G1ANC456AA0NNNNN can be integrated into distributed plant automation networks. It is applied for energy-saving upgrades and new production lines that require dependable high-power variable frequency control.
