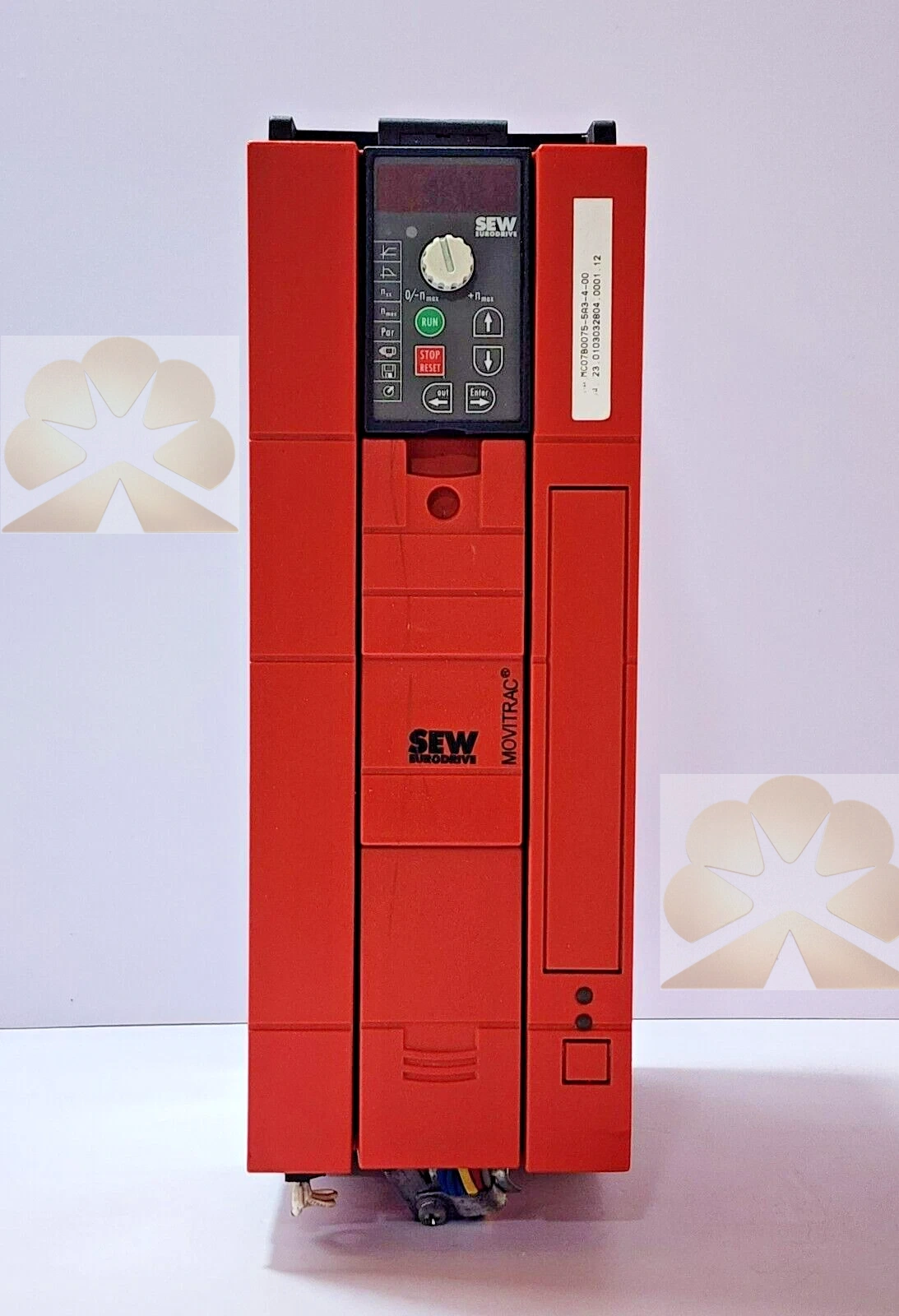

SEW MC07B0075-5A3-4-00 MOVITRAC B Frequency Inverter Product Description

Overview

SEW MC07B0075-5A3-4-00 is a MOVITRAC B series compact variable frequency drive from SEW-EURODRIVE. This SEW inverter is rated 7.5 kW, 3-phase 380–500 V AC, used for asynchronous motor speed regulation. MC07B0075-5A3-4-00 is the standard version with STO safe torque off safety function, widely used for conveyor, pump, fan and general automation drive renovation and spare‑part replacement.

Features

SEW MC07B0075-5A3-4-00 supports V/F control and sensorless vector SVC control, delivering stable low-speed torque for material handling and process equipment. This SEW drive integrates STO (Safe Torque Off) safety function conforming to EN ISO 13849-1 Cat.3 PLd. MC07B0075-5A3-4-00 has built‑in I/O terminals: 6 digital inputs, 3 digital outputs (1 relay), 1 analog input, and PTC motor temperature monitoring interface. It supports multiple fieldbus option cards including PROFIBUS, PROFINET and EtherCAT. It stores up to 5 fault snapshots for troubleshooting, and supports linear / S‑curve acceleration and deceleration, stall prevention and overvoltage control. The compact book‑style housing is designed for cabinet side‑by‑side mounting.

Specs

• Brand: SEW-EURODRIVE

• Series: MOVITRAC B MC07B

• Model: MC07B0075-5A3-4-00

• Rated motor power: 7.5 kW

• Rated output current: 16 A; 125% overload: 20 A

• Input: 3×380–500 V AC, 50/60 Hz

• Output frequency: 0–600 Hz

• Safety: STO Safe Torque Off (Cat.3 PLd)

• I/O: 6 DI, 3 DO (1 relay), 1 AI, PTC input

• Mounting: Cabinet mounting

• Dimensions: 105 × 335 × 238 mm

• Weight: ~5 kg

• Standard: CE, UL, cULus

Principle

SEW MC07B0075-5A3-4-00 rectifies three-phase AC mains into DC bus, then uses IGBT PWM modulation to generate adjustable frequency and voltage three-phase output for the motor. The control board calculates motor speed and torque via current sampling. SVC vector mode improves low-speed torque performance. When STO safety circuit is triggered, the IGBT drive pulses are safely disabled to prevent unintended motor rotation. The internal protection circuit detects overcurrent, earth fault, overheating and motor overtemperature and shuts down output when thresholds are exceeded.

Applications

SEW MC07B0075-5A3-4-00 is deployed on logistics conveyors, packaging lines, water supply pumps, cooling fans and general processing machinery. This SEW inverter is used for constant torque and variable torque speed control. MC07B0075-5A3-4-00 fits drive maintenance and spare replacement of MOVITRAC B series 7.5 kW inverters.

Installation & Maintenance Notes

Follow official SEW MOVITRAC B manual during installation of MC07B0075-5A3-4-00. Use shielded motor cable and separate routing from signal cables for EMC compliance. Discharge DC bus after power-off before opening the unit. Back up parameter set and safety configuration before replacement. After replacement, verify motor parameters, fieldbus address and STO safety loop. Confirm exact part number MC07B0075-5A3-4-00 before swap; variants with different suffix may lack STO or have different I/O definitions.
