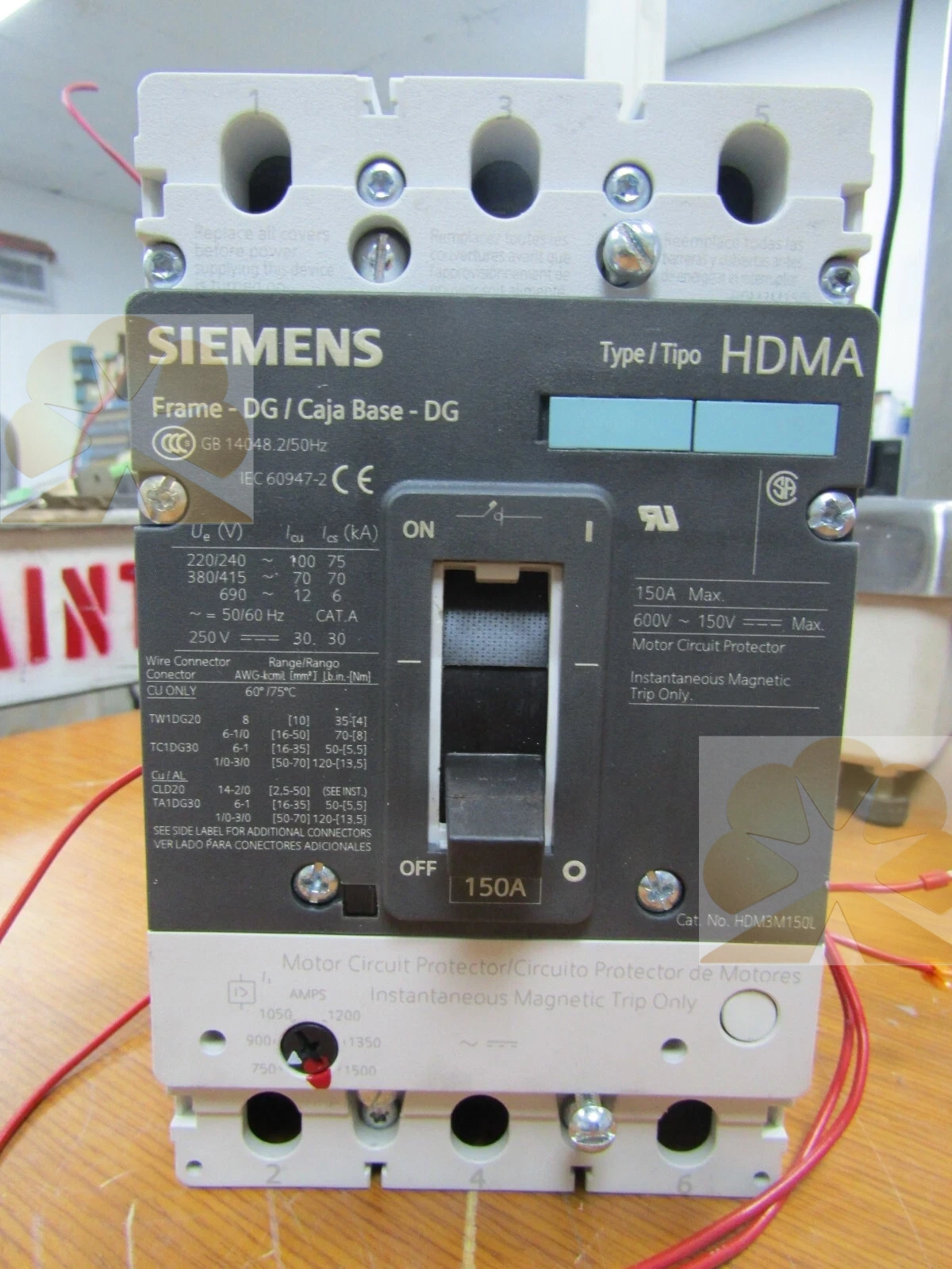

SIEMENS HDM3M150L Product Description

The SIEMENS HDM3M150L is HD series motor circuit protector (MCP) with 3-pole, 150A rating, designed for short-circuit protection of three-phase motor branch circuits in combination motor starter assemblies. This motor circuit protector features adjustable instantaneous magnetic trip function, with 65kA short-circuit breaking capacity and lug type terminal connection for heavy-duty power wiring. This motor circuit protector adopts toggle operating handle for manual on/off control, and it must be paired with separate overload relay to achieve full motor running overcurrent protection. This motor circuit protector is widely used inside industrial control cabinets to provide fast short-circuit isolation for pumps, fans and conveyor motors.

This SIEMENS protector is built with rugged molded case housing and precision magnetic trip mechanism for reliable fault response. Its high-sensitivity magnetic trip assembly detects sudden high short-circuit current and triggers instant contact opening without time delay. The magnetic trip assembly allows trip setting adjustment above motor peak inrush current to avoid false tripping during normal motor startup. The magnetic trip assembly undergoes strict factory testing to guarantee stable breaking performance under high fault current. The sealed structure of the magnetic trip assembly reduces impact from dust and cabinet temperature variation for long-term consistent operation.

The unit is installed upstream of motor contactors and overload relays to form a complete motor protection combination. Secure motor branch circuit protection isolates short-circuit faults rapidly and prevents cable burnout and upstream equipment damage. Stable motor branch circuit protection provides selective coordination within power distribution systems to limit fault spreading across the whole plant power network. Reliable motor branch circuit protection meets North American electrical code requirements for motor feeder protection. Robust motor branch circuit protection minimizes downtime risk when short-circuit failure occurs on motor and field wiring.

The SIEMENS HDM3M150L is a discontinued legacy model, mainly available as spare replacement parts for existing motor control centers and starter cabinets. It carries UL and cULus certifications, suitable for North American industrial low-voltage power distribution applications. The molded case construction offers good mechanical strength and resistance to vibration in factory environments. It can be assembled with contactors and thermal overload relays to build combination starters for various heavy machinery. Widely applied in water treatment, chemical processing, material handling and HVAC systems, this SIEMENS motor circuit protector serves as critical short-circuit protection component for industrial motor control circuits worldwide.
