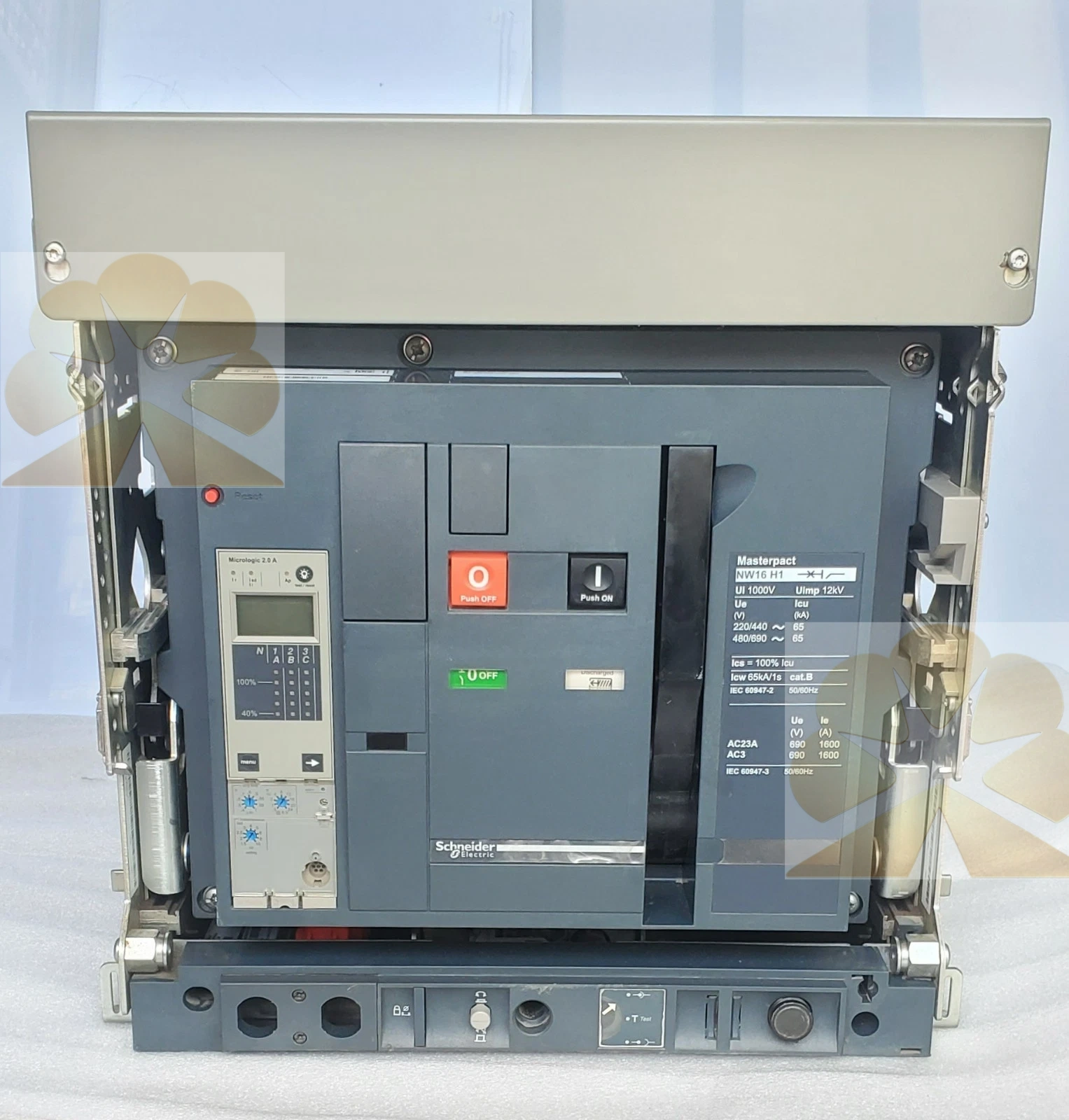

Schneider Electric NW16H1 Air Circuit Breaker Product Description

Product Overview

Schneider Electric NW16H1 is a heavy‑duty air circuit breaker belonging to the Schneider Electric MasterPact NW series for low‑voltage power distribution systems. This Schneider Electric air circuit breaker delivers superior short‑circuit withstand capability for main incoming and outgoing circuits in industrial and commercial switchgear. The Schneider Electric NW16H1 air circuit breaker features 1600A rated current and supports maximum 690V AC operating voltage, with H1‑grade breaking performance up to 65kA at 440V ACSchneider .... Available in both fixed and drawout configurations, Schneider Electric NW16H1 simplifies inspection, maintenance and spare‑part replacement inside low‑voltage switch cabinets. As a core Schneider Electric air circuit breaker unit, Schneider Electric NW16H1 complies with IEC 60947 international standards for global power distribution projectsdocs.rs-on....

Core Technical Characteristics

Schneider Electric NW16H1 air circuit breaker adopts reinforced mechanical construction to ensure stable long‑term operation in demanding power distribution environments. This Schneider Electric air circuit breaker achieves reliable mechanical and electrical durability for frequent switching cycles within main power panels. Schneider Electric NW16H1 air circuit breaker is a breaker frame unit without built‑in trip unit, allowing users to match different Micrologic trip units for flexible overload, short‑time delay and instantaneous protection setup according to site load conditions. The Schneider Electric NW16H1 air circuit breaker offers 1000V insulation voltage and 12kV impulse withstand voltage to resist voltage surges and electromagnetic interference from heavy‑industry plant sites. Its high short‑time withstand current performance guarantees system stability under severe short‑circuit stress.

Main Functional Features

Schneider Electric NW16H1 air circuit breaker provides robust circuit isolation and protection foundation for power distribution infrastructure against various electrical faults. After matched with suitable trip unit, this air circuit breaker supports long‑time overload protection to prevent equipment damage caused by sustained over‑loading. Short‑time delay function avoids unwanted tripping during large‑motor startup current surges. Instantaneous short‑circuit protection cuts high fault current rapidly once short‑circuit incidents take place. The Schneider Electric NW16H1 air circuit breaker supports optional ground‑fault protection when equipped with corresponding modules to raise safety levels for critical power distribution sites. This Schneider Electric air circuit breaker supports auxiliary status signal output, enabling remote monitoring and seamless connection with plant DCS and PLC control systems.

Typical Application Scenarios

Schneider Electric NW16H1 air circuit breaker serves as main protection device for large‑capacity low‑voltage power distribution cabinets. This Schneider Electric air circuit breaker is widely deployed in manufacturing factories, data centers, large‑scale commercial complexes and power station switch‑rooms. Schneider Electric NW16H1 air circuit breaker fits new power distribution system construction, switchgear retrofitting and replacement of aging MasterPact‑series breaker frames. In high‑current busbar systems, the Schneider Electric NW16H1 air circuit breaker maintains power‑supply continuity for vital production and business loads. Its drawout variant is highly preferred for sites requiring quick breaker swap‑out with minimal power‑off duration.

Installation & Maintenance Notes

Operators must follow official Schneider Electric hardware manuals while installing Schneider Electric NW16H1 air circuit breaker. Select and install compatible Micrologic trip unit before commissioning, and set correct wiring torque as well as protection parameters to guarantee stable performance of this Schneider Electric air circuit breaker. Conduct regular visual inspection and mechanical operation tests for Schneider Electric NW16H1 air circuit breaker under heavy‑load or high‑vibration working conditions. For drawout‑type Schneider Electric NW16H1, service technicians can extract the breaker main body without disconnecting primary busbars, effectively shortening maintenance downtime. Always confirm part designation NW16H1 before replacement to ensure full compatibility with existing power distribution rack systems.
