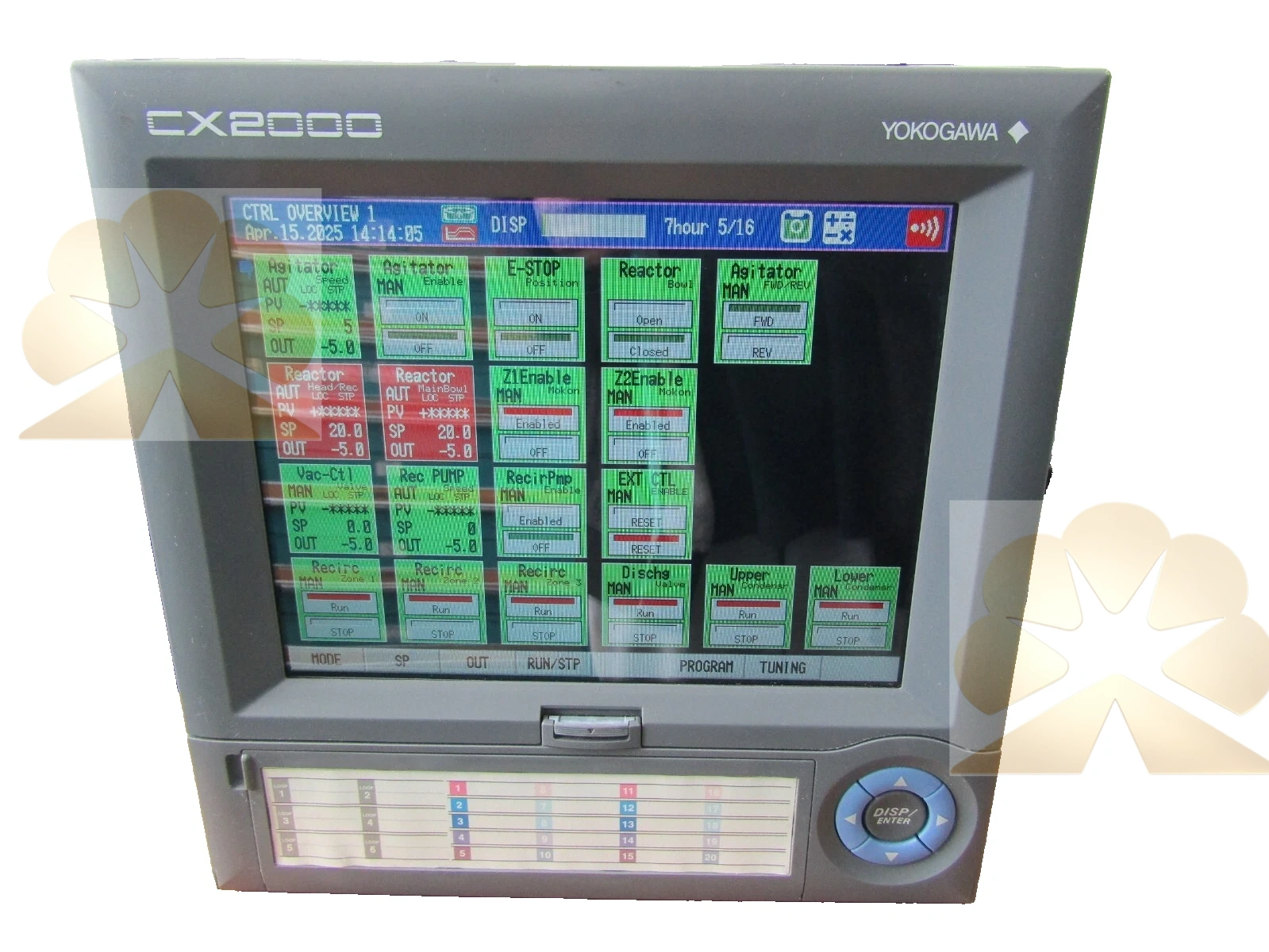

Yokogawa CX2000

Yokogawa CX2000 (DAQSTATION CX2000) is a panel-mounted control and measurement station combining PID control, multi-channel data acquisition and paperless recording, officially discontinued on Feb 29,2016. It supports up to 20 analog input channels and maximum 6 built-in PID control loops, equipped with standard Ethernet, built-in web server, email alarm and FTP data upload function. It accepts universal input signals including thermocouple, RTD, 4-20mA and DC voltage, supports batch program control and mathematical calculation, and can meet FDA 21 CFR Part11 electronic signature requirement for pharmaceutical and food industries. The control & measurement station collects temperature, pressure, flow and liquid level signals from field transmitters, the control & measurement station performs closed-loop PID regulation and continuously archives process trend and alarm data. Instrumentation engineers rely on the control & measurement station for heat treatment furnaces, pharmaceutical drying, food batch production and small chemical pilot process monitoring. The control & measurement station supports PLC ladder communication and can connect to SCADA for centralized plant management.

Yokogawa CX2000 features a high-resolution color LCD screen, capable of real-time display of trend curves, digital values and PID loop PV/SP/OUT parameters. It supports multiple control output types: 4-20mA current output, relay contact output and voltage pulse proportional output. Optional RS232/RS485 communication ports are available for connection with peripheral instruments. The process data recording saves historical trend, alarm events and batch records for quality traceability and audit review. Reliable process data recording provides complete data archives for batch production quality analysis. Technicians configure PID parameters, alarm limits and batch program segments to optimize process data recording. Ethernet web access enables remote real-time browsing and automatic data backup to guarantee stable process data recording.

Yokogawa CX2000 is widely used in thermal treatment, pharmaceutical manufacturing, food processing and legacy industrial batch control renovation projects. Every unit undergoes signal calibration, communication port test and aging inspection before shipment. The PID recording control assembly consists of the station, field sensors and actuators to realize complete closed-loop process control. This DAQ station provides dependable PID recording control assembly performance for continuous batch production. Standard panel cutout installation and comprehensive diagnostic functions preserve stable PID recording control assembly performance over long service cycles. Process maintenance customers select this unit for spare parts replacement and maintenance of existing PID recording control assembly systems.
