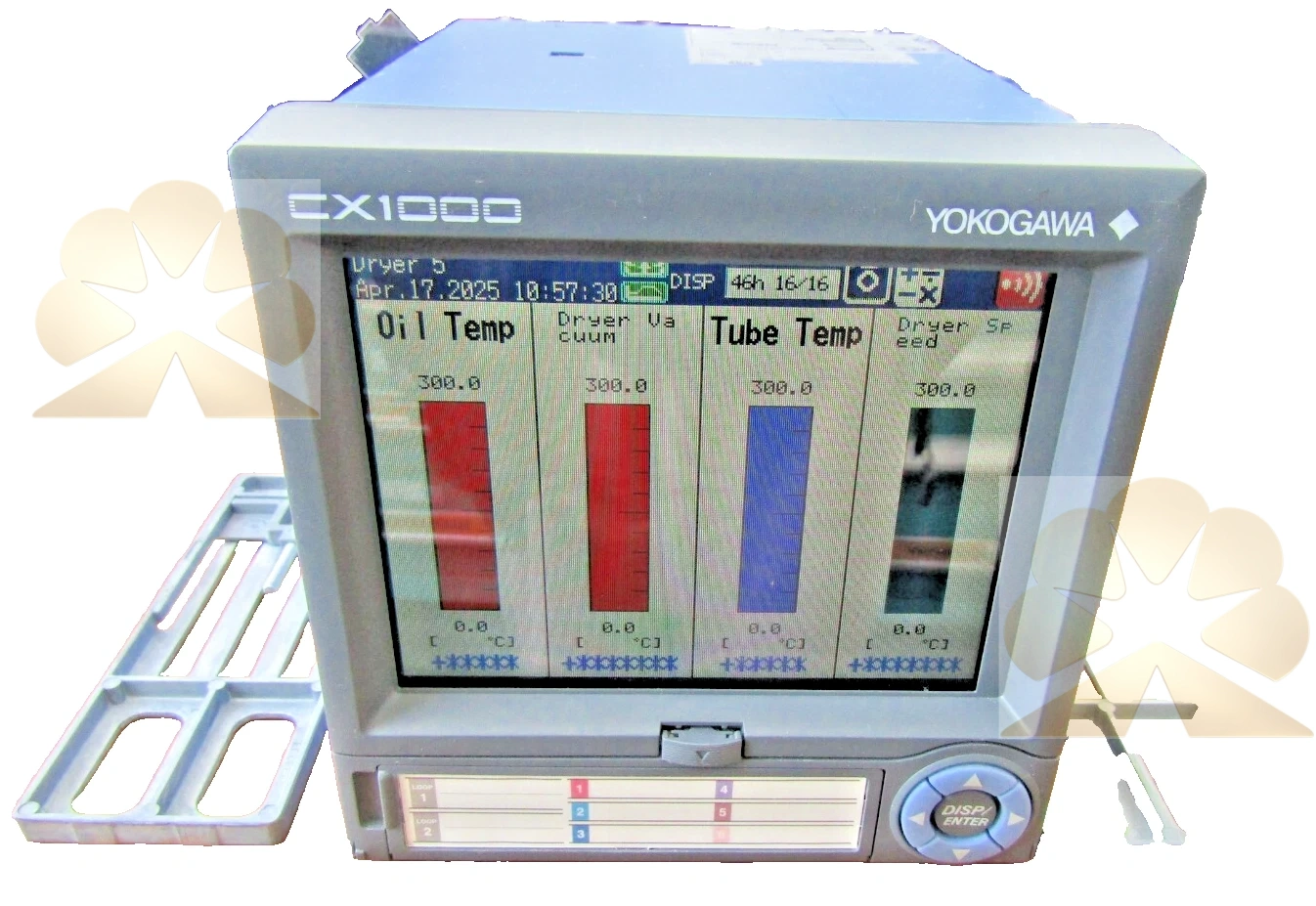

Yokogawa CX1000

Yokogawa CX1000 (DAQSTATION CX1000) is a discontinued panel-mounted control and measurement station integrating PID control, data acquisition and paperless recording, ceased production in Feb 2014. It supports max 6 measurement channels and built-in 2 PID control loops, equipped with standard Ethernet port for web remote monitoring, email alarm and FTP data file transfer. It adopts no-program configuration, supports PV/SP/logic math calculation and optional program control function. The control & measurement station collects temperature, pressure and flow signals from field transmitters, the control & measurement station executes closed-loop PID regulation and stores historical process data. Instrumentation engineers rely on the control & measurement station for thermal treatment furnaces, pharmaceutical processes, food production and small chemical pilot plant monitoring. The control & measurement station can link with PLC and SCADA systems for centralized process management.

Yokogawa CX1000 has high-visibility color LCD display, supports trend curve, digital value and control loop PV/SP/OUT real-time display. It accepts universal input including thermocouple, RTD, 4-20mA and voltage signals, with data saved in internal memory or external storage media. It supports event alarm recording and electronic signature function to meet FDA 21 CFR Part11 compliance requirements. The process data recording continuously archives production trend data and alarm events. Reliable process data recording provides traceable records for quality audit and process analysis. Technicians configure PID parameters, alarm thresholds and program segments to optimize process data recording. Ethernet communication realizes remote browsing and backup for stable process data recording.

Yokogawa CX1000 is widely applied in thermal processing, pharmaceutical drying, laboratory test systems and legacy industrial process control projects. Every unit undergoes signal calibration, communication test and aging inspection before shipment. The PID recording control assembly combines the station, field sensors and actuators to build complete closed-loop process control solution. This DAQ station provides dependable PID recording control assembly performance for continuous batch production. Simple panel cutout installation and comprehensive diagnostic functions preserve stable PID recording control assembly performance over long service cycles. Process maintenance customers select this unit as spare parts replacement and maintenance of existing PID recording control assembly systems.
