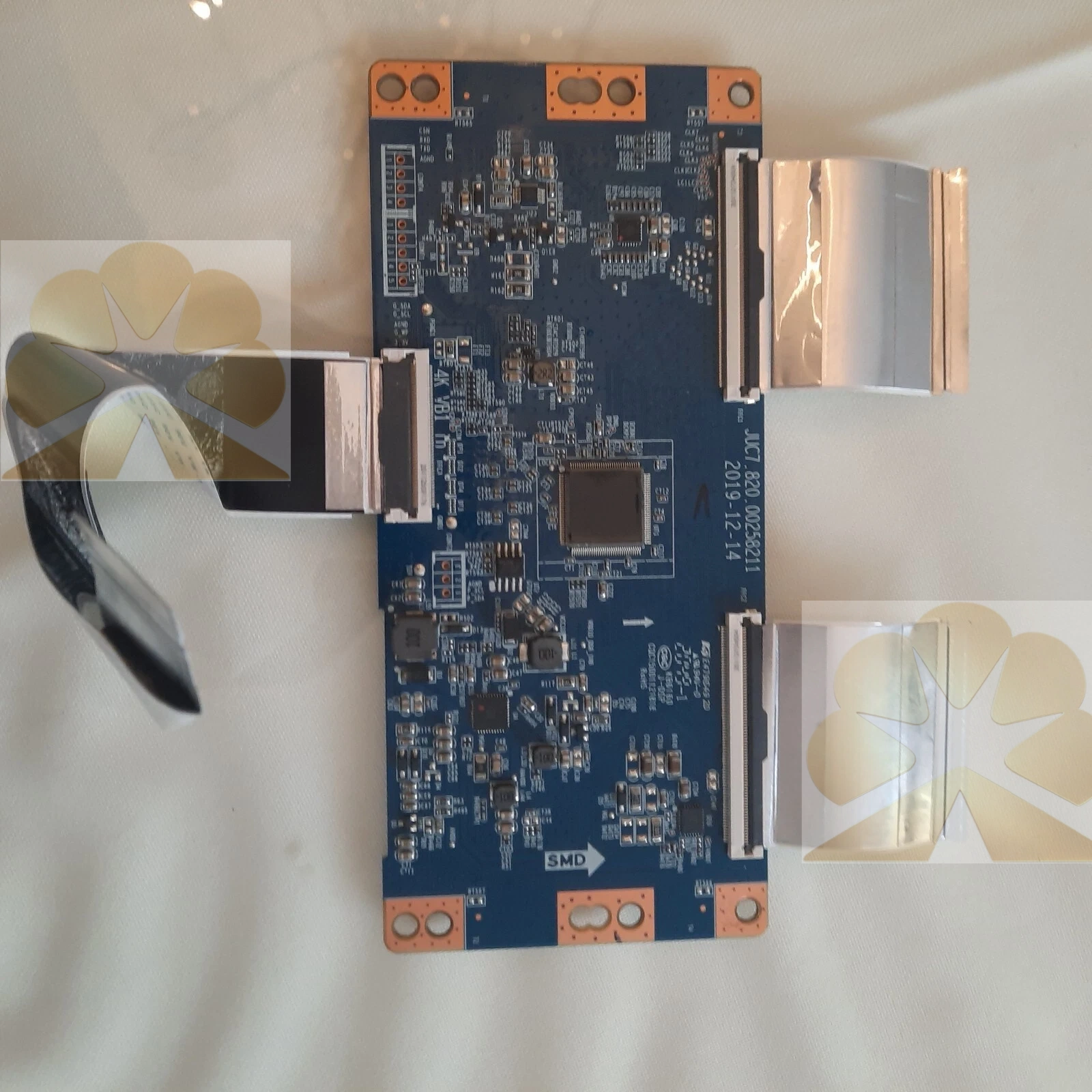

JUC7.820.00258211 Product Description

JUC7.820.00258211 is a professional TV T-con timing control board for 4K LED LCD television image signal processing. This TV T-con timing control board receives LVDS/V-by-One video signal from mainboard, then generates pixel driving signal to control LCD panel display. The compact TV T-con timing control board adopts double FFC flat cable sockets and PCB soldered circuit design. This TV T-con timing control board is the core signal conversion unit to realize image segmentation and color calibration for 4K TV panels.

JUC7.820.00258211 delivers reliable pixel signal redistribution for converting mainboard input signal into panel row and column driving signals. Precise pixel signal redistribution adjusts brightness, contrast and gamma value to restore original image details. Stable pixel signal redistribution ensures uniform screen display without vertical/horizontal lines. Dependable pixel signal redistribution supports long-time continuous display for monitoring terminals.

This unit features dual FFC flat cable interface assembly for direct connection between T-con board and LCD display panel. The robust dual FFC flat cable interface assembly transfers high-speed differential image signals steadily. The gold-plated dual FFC flat cable interface assembly reduces signal attenuation and poor contact under vibration. This durable dual FFC flat cable interface assembly simplifies disassembly and spare replacement during TV maintenance.

JUC7.820.00258211 is widely matched with ONN 100012585, Philco PTV50G70, PTV58F80 series 4K LED televisions. It works under 12V DC power supply and integrates ESD protection circuit on PCB. It is original replacement spare board for repairing 50/58 inch 4K LCD TV screen display faults.
