Detailed Description 6AV2124-0GC01-0AX0 belongs to Siemens SIMATIC Comfort Panel series, model TP700 Comfort. It adopts 7-inch widescreen TFT LCD with 16 million colors, 800×480 pixel resolution, analog resistive touch screen. The backlight MTBF reaches 80,000 hours with adjustable brightness. Rated power supply DC24V (19.2~28.8V), approx. 12W power consumption. It is equipped with 12 MB configuration memory, running Windows CE 6.0 operating system, supporting SD card and USB flash disk for data logging, recipe backup and program transfer.

This HMI integrates multi communication interfaces: built-in 2-port PROFINET switch, MPI / PROFIBUS DP interface, RS422/485 and USB 2.0 port. It supports PROFINET, PROFIBUS DP, MPI, Modbus TCP, Modbus RTU, EtherNet/IP and other mainstream PLC protocols, compatible with Siemens S7-1200, S7-1500, S7-300, S7-400 and third-party controllers. Project configuration and download are completed via WinCC Comfort within TIA Portal. It supports real-time data display, alarm logging, trend curves, recipe management, user access control and web server function. Front panel IP65 dust and splash resistant, rear housing IP20. LED indicators show power and communication status for quick field troubleshooting.

Operating temperature range 0~50℃, suitable for cabinet flush mounting. It has built-in comprehensive self-diagnosis function to detect communication failure, backlight fault and memory abnormality.

6AV2124-0GC01-0AX0 is widely applied in new and retrofitted automation machines. When the original panel fails, replacing it with identical 6AV2124-0GC01-0AX0 can reuse existing panel cutout, wiring and original WinCC Comfort project without redesign. Technicians install the touch panel, download HMI program and verify PLC communication, so the machine visualization and operation system resumes operation and reduces downtime.

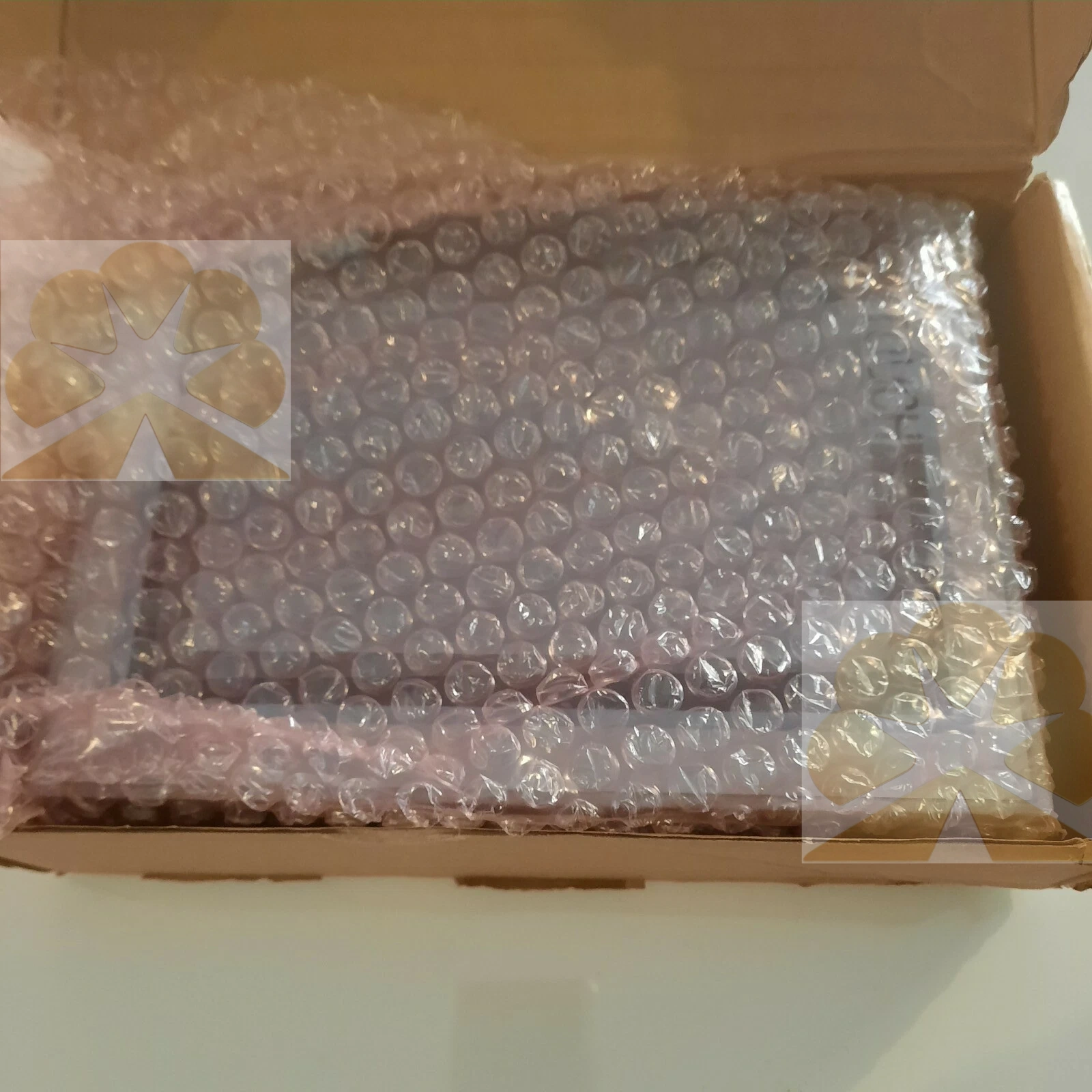

Before shipment, every 6AV2124-0GC01-0AX0 undergoes comprehensive functional inspection including power-on self-test, touch calibration, TFT display test, PROFINET / PROFIBUS communication verification, USB/SD card read-write test and memory check. All products come with 12-month warranty. Our automation technical team provides remote support for project backup, screen download, wiring guidance and communication fault diagnosis. Fast global shipping available for urgent maintenance orders.

For automation maintenance engineers and system integrators, 6AV2124-0GC01-0AX0 is reliable SIMATIC HMI operator panel for industrial control systems. It restores local machine operation and process data monitoring, extends service life of automation assets and avoids high-cost whole control system renovation.
