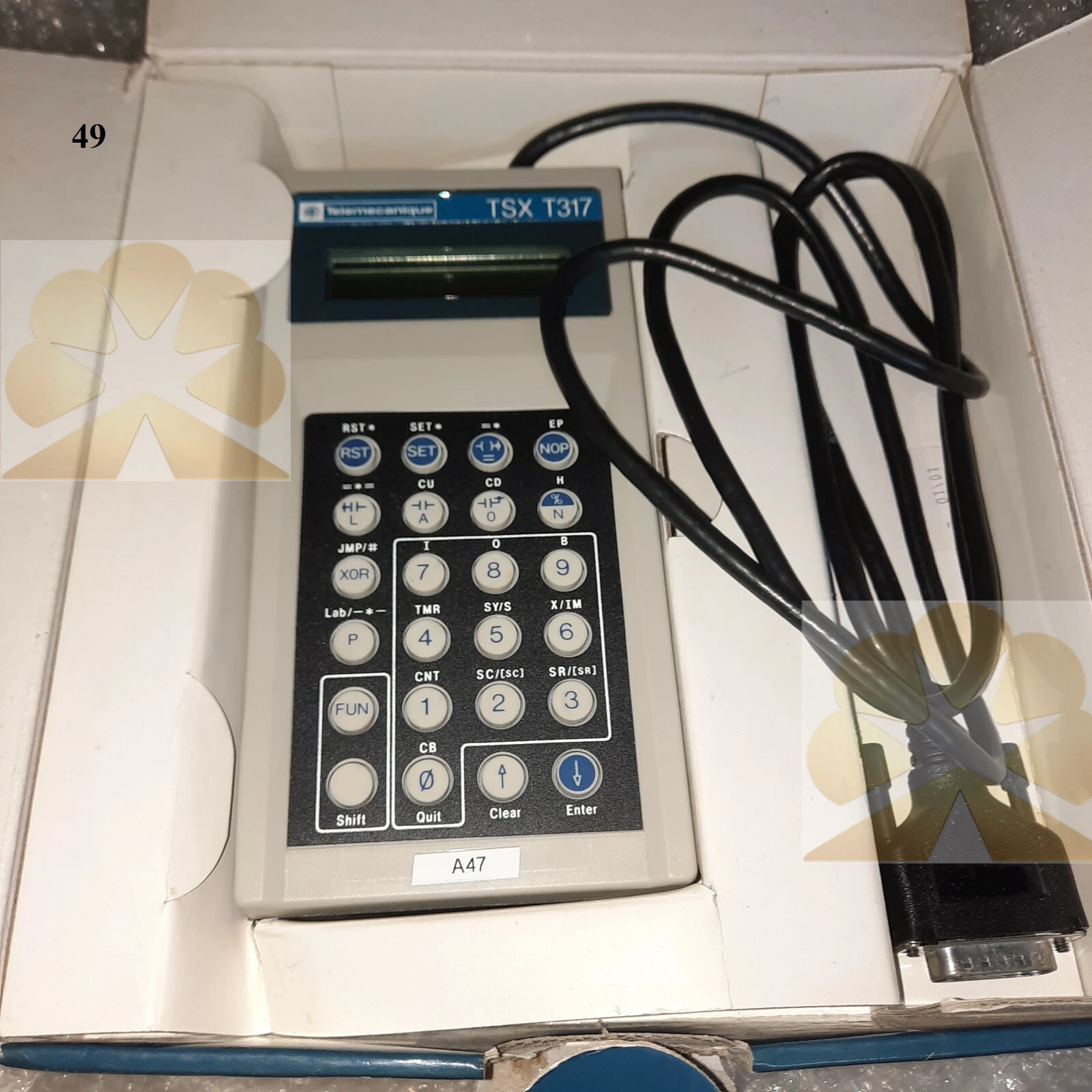

TSX-T3170 (TSXT3170) is a portable handheld programming terminal developed for Schneider Modicon TSX Micro series PLC. It adopts compact handheld industrial housing, equipped with small monochrome LCD display and full membrane numeric/function keypad. Powered from the PLC side through dedicated connection cable, no separate external power supply required. It can work independently without laptop on site, to read/write PLC program, monitor register and bit status, force I/O, view alarm codes and execute online debugging for TSX Micro controllers. Widely applied for maintenance and commissioning of old packaging machines, textile equipment and material handling automation systems based on TSX Micro platform.

This handheld terminal communicates with TSX Micro PLC through proprietary Uni-Telway interface. It supports basic online operations: ladder monitoring, variable real-time viewing, I/O forcing, program upload/download and fault code inquiry. The keypad includes function shortcut keys for quick page switching and parameter modification. It is mainly used as temporary commissioning/maintenance tool, not designed for continuous long-time operation as formal HMI.

Operating temperature range 0~50℃, industrial dust-resistant keypad design, suitable for workshop field maintenance. Front panel status LED helps technicians quickly confirm communication status. It requires matching dedicated communication cable to connect TSX Micro PLC port.

TSX-T3170 is discontinued legacy Schneider spare part. Many old automation machines still run with TSX Micro PLC. When the original handheld programmer fails, replacing it with identical TSX-T3170 can directly connect existing TSX Micro PLC and original cable. No program modification needed, convenient for field maintenance staff to perform PLC debugging and troubleshooting.

Before shipment, every TSX-T3170 undergoes comprehensive functional inspection including power-on self-test, LCD display test, keypad full test, Uni-Telway communication test and cable connection test. All products come with 12-month warranty. Our automation technical team provides remote support for wiring guidance, PLC online operation and fault diagnosis. Fast global shipping is available for urgent maintenance orders.

For automation maintenance engineers and system integrators, TSX-T3170 is reliable spare handheld programming terminal for legacy Schneider TSX Micro control systems. It facilitates on-site PLC commissioning and fault troubleshooting, extends service life of old automation assets.
