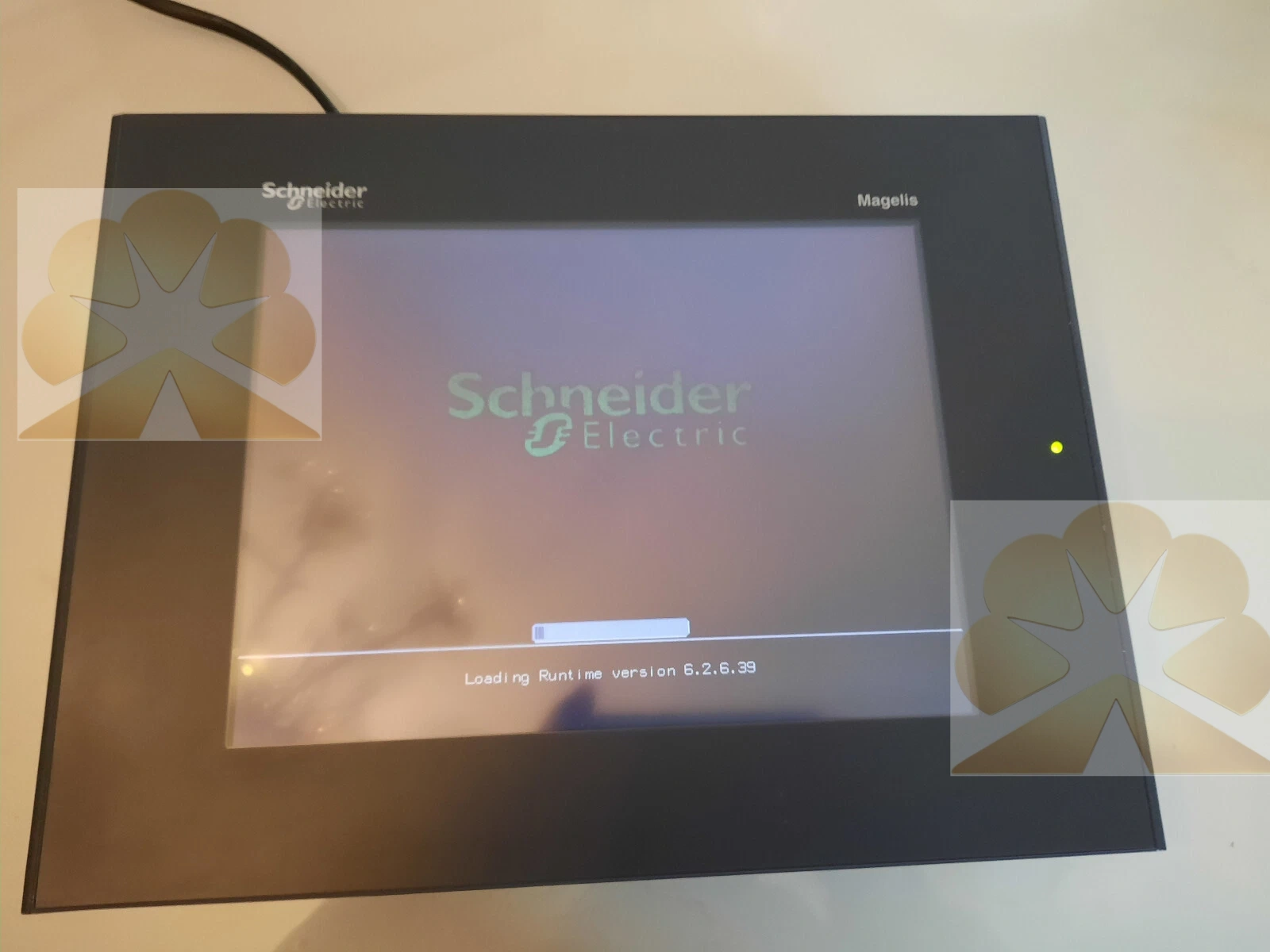

Detailed Description XBTGT5230 is a classic industrial touch operator terminal of Schneider Magelis XBTGT series, for cabinet door embedded installation. It adopts 10.4-inch STN color LCD, VGA 640×480 resolution, 4096 colors, CCFL backlight with service life up to 54000 hours. Power supply DC24V (19.2~28.8V wide input), max power consumption 26W, front panel IP65 dust and splash protection, rear IP20. RISC 266MHz processor, 32MB flash memory for HMI project storage, 512KB battery-backed SRAM to retain recipe parameters, alarm logs and RTC clock data after power failure.

This HMI integrates 10/100Mbps Ethernet port, COM1 RS232 and COM2 RS485 serial ports, with CompactFlash card slot for data logging and program backup, also supports optional fieldbus expansion card (Profibus-DP / DeviceNet). It supports Modbus TCP, Modbus RTU, Uni-TE, Mitsubishi, Omron, Allen‑Bradley and other mainstream PLC protocols. Project configuration and download are completed by Vijeo Designer software. It supports real-time data display, parameter input, alarm logging, trend curve, recipe management and multi-language switching. The 4-wire analog resistive touch supports glove operation, suitable for workshop environments with dust, vibration and oil mist.

The hardware adopts aluminum front panel, natural cooling without fan, operating temperature range 0~50℃. External dimension 313×239×56mm, panel cutout size 301.5×227.5mm. Front LED indicator shows power and backlight fault status for fast on-site troubleshooting. Built-in watchdog circuit prevents system crash caused by industrial electromagnetic interferenceSchneider ....

XBTGT5230 is discontinued legacy Schneider HMI spare part. Many old automation production lines still run with this XBTGT touch panel. When the original unit fails, replacing it with identical XBTGT5230 can reuse existing cabinet cutout, field wiring and original Vijeo Designer project without redevelopment. Operators directly use familiar touch operation screens with no extra training. This replacement greatly reduces renovation cost and shortens equipment downtime, avoiding expensive full HMI system upgrade.

Before shipment, every XBTGT5230 undergoes comprehensive functional inspection including power-on boot test, touch calibration, display quality inspection, serial & Ethernet communication verification, CF card read-write test and backup battery health check. All products come with 12-month warranty. Our automation technical team provides remote support for project backup, wiring guidance, communication parameter setup and fault diagnosis. Fast global shipping is available for urgent maintenance orders.

For automation maintenance engineers and system integrators, XBTGT5230 is reliable spare touch HMI for legacy Schneider Magelis XBTGT control systems. It maintains stable on-site machine monitoring and manual operation functions, extends service life of automation assets and prevents costly reconstruction of human-machine interface.
