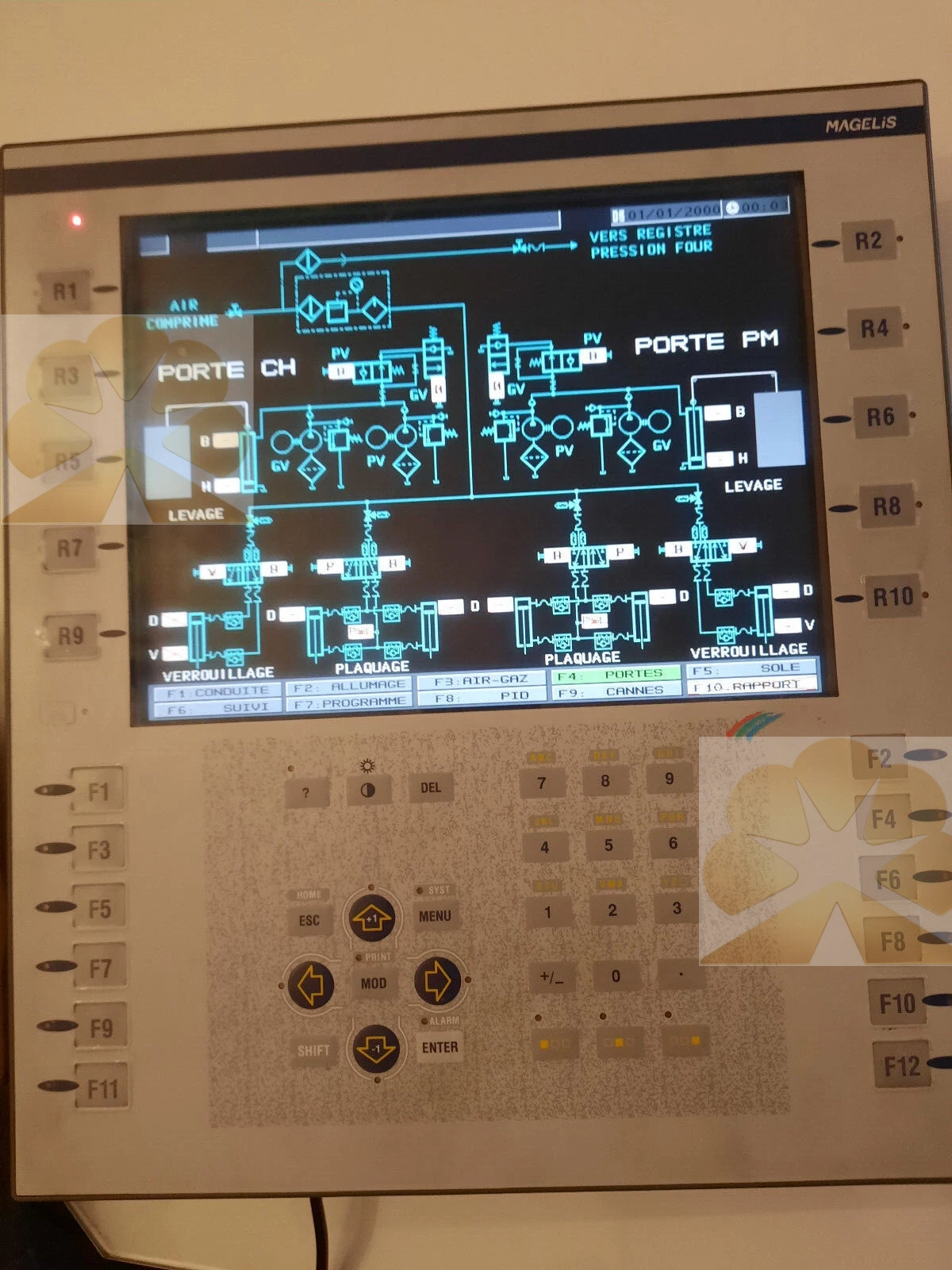

Detailed Description XBTF024510 is a classic keypad graphic operator terminal of Schneider Magelis XBT-F series, designed for panel door embedded installation. It adopts 10.4-inch TFT color LCD, resolution 640×480, 256 display colors, CCFL backlight. Power supply DC24V, power consumption 35W, front panel IP65 dust and splash protection. This model is keypad type without touchscreen, equipped with 12 static function keys, 10 soft keys and numeric/navigation membrane keys, suitable for high vibration workshop environments where touchscreen is easy to fail. It has built-in flash memory for HMI project storage, battery-backed SRAM retains recipe parameters, alarm logs and RTC clock data after power failure.

This HMI integrates RS232 and RS485 serial ports, supporting Modbus, Uni-Telway and other protocols, compatible with Schneider Twido, Premium, Quantum and many third-party PLCs. PCMCIA slot can be inserted with communication or storage card to expand network functions. The programming software is XBT-L1000 (original) or Vijeo Designer for project conversion. It supports real-time data display, alarm event logging, recipe management, multi-language switching and printer output function.

The hardware is rugged industrial construction, operating temperature range 0~45℃. Front panel LED indicators show power and communication status for fast on-site troubleshooting. Built-in watchdog circuit prevents system crash caused by industrial electromagnetic interference. Standard panel cutout for cabinet door installation. The modern replacement model is HMIGK5310.

XBTF024510 is discontinued legacy Schneider HMI spare part. Many old automation production machines still run with this XBTF keypad panel. When the original unit fails, replacing it with identical XBTF024510 can reuse existing cabinet cutout, field wiring and original HMI project after project conversion, operators directly use familiar keypad operation interface with no extra training. This replacement greatly reduces renovation cost and shortens equipment downtime, avoiding expensive full HMI system upgrade.

Before shipment, every XBTF024510 undergoes comprehensive functional inspection including power-on boot test, keypad function test, display quality inspection, serial communication verification, PCMCIA slot read-write test and backup battery health check. All products come with 12-month warranty. Our automation technical team provides remote support for project backup, wiring guidance, communication parameter setup and fault diagnosis. Fast global shipping is available for urgent maintenance orders.

For automation maintenance engineers and system integrators, XBTF024510 is reliable spare keypad HMI for legacy Schneider Magelis XBT-F control systems. It keeps on-site machine monitoring and manual operation functions stable, extends service life of automation assets and prevents costly reconstruction of human-machine interface.
