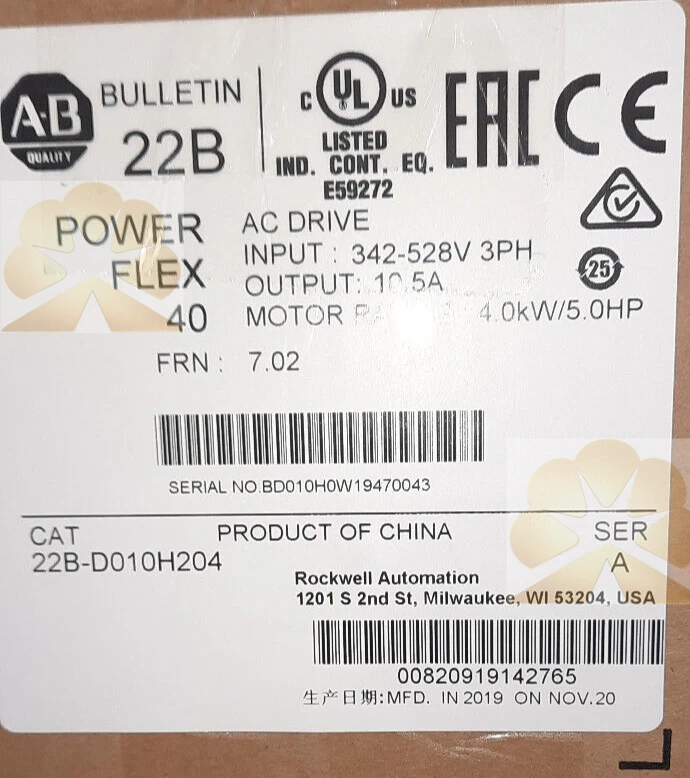

22B-D010H204 Allen-Bradley PowerFlex 40 4kW AC Variable Frequency Drive
22B-D010H204 (also written as 22bd010h204) is Allen-Bradley PowerFlex 40 series compact AC variable frequency drive, rated 4kW (5HP), 380–480V three-phase input. This general-purpose inverter adopts sensorless vector control technology, delivering stable torque output even at low motor speed, widely used for speed regulation of three-phase asynchronous motors in factory automation. It supports V/F control and sensorless vector modes, meeting constant torque and variable torque load requirements for conveyors, fans, pumps and packaging machinery.
The drive integrates a digital keypad and 4-digit LED display on the front panel. Operators can directly adjust frequency, read running current, check fault codes and modify parameters locally. It has built-in RS485 Modbus communication port, supporting connection with PLC and HMI for remote frequency setting, status reading and fault monitoring. Multiple digital and analog I/O terminals are reserved, which can be configured for start-stop command, multi-speed selection, fault relay output and analog speed reference signal. It supports panel mounting with IP20 protection grade for installation inside control cabinets.
22B-D010H204 is equipped with comprehensive built-in protection functions, including overcurrent, overvoltage, undervoltage, over-temperature, motor overload, ground fault and stall prevention protection. When abnormal conditions occur, the inverter will trigger an alarm and stop output automatically to protect both the drive and the connected motor. The compact mechanical structure saves cabinet space and simplifies wiring layout. It can work continuously within wide industrial temperature range and has good anti-electromagnetic interference capability, adapting to common workshop environments with vibration and dust. The parameter group is user-friendly, with frequently used parameters grouped for quick setup and commissioning.
This model is discontinued legacy Rockwell automation spare part. A large number of old production lines, conveying systems, packaging machines and water treatment equipment still adopt PowerFlex 40 inverters. When the original VFD fails, replacing it with identical 22B-D010H204 can reuse the existing motor, power cable, control wiring and original parameter settings. There is no need to redesign control logic or modify PLC programs, which effectively cuts maintenance cost and shortens production downtime. Technicians can directly restore backup parameters, and equipment can resume operation rapidly without complicated re-tuning.
We supply fully tested 22B-D010H204 variable frequency drives. Before shipment, each unit undergoes complete functional inspection including power-on test, keypad operation check, communication port verification, motor loading test and protection function simulation. We verify frequency response and stability under simulated load condition. All products come with 12-month warranty. Our automation technical team provides remote support for wiring guidance, parameter backup, Modbus configuration and fault diagnosis. Fast global shipping is available for urgent maintenance orders.
For automation maintenance engineers and system integrators, 22B-D010H204 is a reliable spare inverter for legacy PowerFlex40 motor control systems. It maintains stable motor speed regulation performance of production equipment, extends service life of existing automation assets and avoids high-cost renovation of the whole motor driving system.
