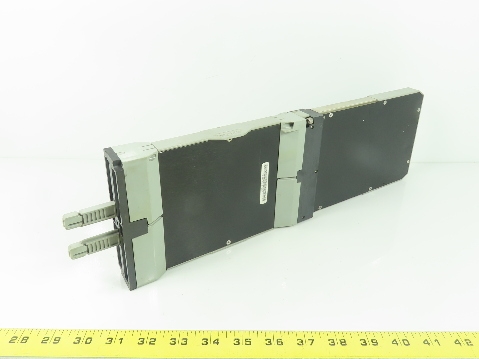

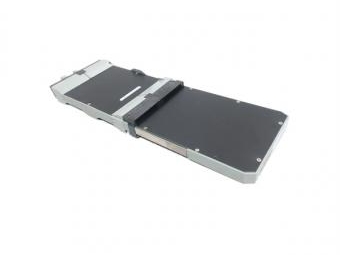

Product Specification for Foxboro P0902UT Intelligent Transmitter Termination Module

P0902UT belongs to Foxboro P0902 full-series wiring termination assembly under I/A Series DCS distributed control system, a dedicated intelligent signal conversion terminal base matched with HART-type analog input FBM modules, used for on-site transmitter signal conditioning, power distribution and channel short-circuit protection between field instruments and cabinet FBM mainboard. It follows unified rack mechanical size and hot-swap design of the whole P0902 family, supports live online plug-and-replace without cutting rack power or stopping running control loops. Internal PCB adopts ISA S71.04 G3 anti-corrosion conformal coating plus integrated aluminum alloy shell, resisting cabinet dust, damp air and trace corrosive industrial gas to ensure long-term stable 4~20mA+HART signal transmission. Widely used as original spare replacement part for renovation and maintenance of in-service petrochemical, power plant DCS cabinets, as well as standard supporting terminal component for new-built process automation projects.

P0902UT is specified for indoor sealed control cabinet slot installation with IP20 protection grade; open-air mounting under direct sunlight, continuous dew, severe vibration and corrosive chemical steam is forbidden. Working power is supplied with rated 24VDC from AP rack Z-Bus backplane, low-power circuit layout lowers self-heating and avoids power interference to adjacent CPU and I/O modules. Overall dimension complies with universal P0902 series installation standard for direct plug-in on standard AP rack, passive natural heat dissipation without built-in fan. The module passes UL, CE, CSA certification and full EMC anti-interference test, capable of continuous full-load operation near high-frequency inverters and large driving motors. Normal operating ambient temperature: 0℃～60℃; storage temperature: -40℃～85℃ for long-distance transit and warehouse storage; applicable relative humidity: 5%～95% non-condensing.

Positioned as intermediate signal bridge for intelligent field transmitters and FBM analog input modules inside I/A DCS system, core functions cover field loop 24VDC auxiliary power supply, 4~20mA analog signal access, HART digital signal superimposed transmission and independent per-channel overcurrent protection. All site pressure, temperature, flow HART transmitters connect field cables to front terminal blocks of P0902UT; after internal power distribution and surge suppression, analog+HART compound signals are transmitted to matched FBM main modules via Z-Bus backplane for A/D conversion and data acquisition. Front panel multi-channel LED indicators display module power status, loop power supply condition and single-channel short-circuit fault alarm for rapid troubleshooting without extra test instruments. Independent channel fuse protection design ensures single-loop short-circuit cuts only faulty channel without impacting other measurement loops. Supports online parameter checking and channel diagnosis via I/A configuration software without module removal from rack, multiple units side-by-side mounted for centralized instrument wiring arrangement to simplify cabinet internal harness layout.

Supports standard industrial 4~20mA analog current input and embedded HART V7 digital communication protocol for bidirectional remote parameter calibration and self-diagnosis of site intelligent transmitters. Built-in isolated loop power circuit provides stable 24VDC field instrument excitation power, each channel equipped independent fuse and anti-reverse wiring, anti-surge protection circuit to prevent damage caused by field miswiring and instantaneous surge voltage. Terminals adopt anti-loose locking structure against poor contact from long-term cabinet vibration; internal wiring uses shielding separation layout to reduce inter-channel signal crosstalk. Strictly follows I/A proprietary Z-Bus bus specification for one-to-one signal mapping with matched FBM units, single module supports multi-channel independent loop access of HART transmitters. Full hardware power-on self-test routine automatically detects internal circuit, power unit and all access channels after power-up, uploading fault codes to upper monitoring system for record and query. Rated low power consumption under full-load working condition.

Standard fittings include terminal fastening screws for field cable locking, shielding wire fixing clips for cabinet harness sorting and DIN auxiliary brackets for flexible installation spacing adjustment. Full mechanical & electrical compatibility with all AP master racks, full-range P0902 series terminal modules and matched HART-type FBM analog input modules; mixed installation with CPU and other I/O modules on same rack without transition adapter. Optional maintenance spare parts: channel replacement fuses, shielding extension cables for remote instrument wiring, spare front indicator components for periodic overhaul replacement.

Installed on I/O slot of AP central control cabinet and remote auxiliary cabinet of Foxboro I/A DCS system, extensively applied in petroleum refining, thermal power generation, fine chemical, natural gas pipeline transportation and wastewater treatment industries. Typical scenarios: boiler instrument centralized wiring cabinet, reactor feed measurement signal termination cabinet, oil-gas pipeline flow-pressure monitoring terminal cabinet and environmental dosing control instrument wiring cabinet. Used as original matching terminal hardware for new DCS project construction and certified alternative spare part for damaged original terminal base of running production cabinets, quickly restoring field instrument measurement loop after original module breakdown to secure uninterrupted automatic production operation.
