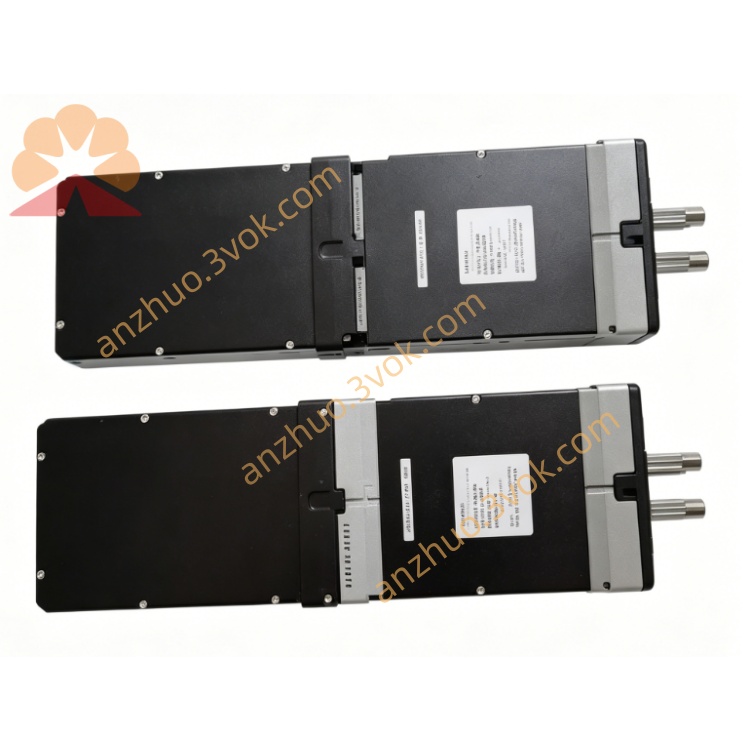

Product Specification for Foxboro P0700KT

P0700KT belongs to Foxboro I/A Series P0700 family redundant processor module, manufactured per US original industrial standards and designed for cabinet installation under Foxboro Evo DCS distributed control system framework. It is constructed as plug-in card form factor to mount on exclusive I/A dedicated backplane, functioning as core control and data gateway linking upper Evo Mesh high-speed control network and field FBM distributed I/O modules. The module undertakes real-time acquisition of field analog and digital process signals, multi-loop PID closed-loop computing, process safety interlock logic execution and cyclic process data uploading to upper operator monitoring stations. Its die-cast aluminum casing conforms to ISA S71.04 G3 anti-corrosion environmental specification and supports live hot-swap under powered cabinet running condition, effectively shortening production downtime during on-site maintenance and spare part replacement. It is widely adopted as standard redundant master controller for newly-built Evo DCS projects and certified replacement spare for defective control cabinets of legacy I/A Series DCS across continuous-process industries.

P0700KT follows unified dimensional specification of entire P0700 product lineup and is limited to fully enclosed indoor cabinet mounting with IP20 protection grade; outdoor deployment under dew accumulation, corrosive gas erosion, intense sunlight exposure and mechanical impact is strictly prohibited. The module is powered by standard industrial 24VDC input, with typical full-load power consumption around 10 watts, overall outer dimension of 140mm width, 165mm depth and 45mm thickness and net weight approximately 0.6 kilogram. The integrated alloy housing realizes passive natural heat dissipation and internal circuit anti-vibration protection. The product gains CE and UL industrial safety certifications and passes complete EMC anti-interference testing, enabling long-term continuous stable operation inside standard control cabinets under regular industrial surroundings with moderate dust and conventional electromagnetic interference.

Positioned as universal redundant core controller under Foxboro Evo DCS centralized control architecture, P0700KT can run complete independent local closed-loop control when upper backbone Ethernet communication connecting monitoring workstations is abnormally disconnected. It receives temperature, pressure, flow rate, liquid level analog measuring signals and digital switch feedback data from field transmitters and executing actuators, then independently completes fixed-value PID regulation, compound safety interlock judgment, sequential step programming and customized batch production control algorithms. Equipped with dedicated master-backup synchronous calibration circuit for 1+1 redundant pairing, the module implements bitwise data comparison between primary and standby controllers to keep runtime operating parameters fully synchronized and eliminate system data deviation for improved overall operational stability. Multi-layer embedded hardware self-check program works together with front panel status indicator lamps to send clear fault alarms once internal component breakdown, Z-Bus backplane communication failure or field signal over-range happens, shortening on-site troubleshooting period remarkably. Via proprietary Z-Bus internal cabinet bus, it supports flexible expansion of maximum 256 configurable field I/O points to match diversified on-site engineering layout requirements. Bidirectional real-time data exchange, control logic download and fault alarm transmission with upper monitoring platform are realized via auto-adaptive 10/100Mbps copper Evo Mesh Ethernet with optional fiber communication access channel. Reserved open communication interfaces support cross-system data interconnection with mainstream third-party SCADA platforms including InTouch and Wonderware System Platform, and maintain compatibility with Modbus TCP/IP and ControlNet mainstream industrial communication protocols. Two matched P0700KT modules installed on identical backplane slots form hot redundant group, achieving millisecond-grade automatic master-slave switching upon main unit fault to guarantee zero interruption of continuous industrial production.

The core computation unit is configured with industrial dedicated 32-bit RISC processor, with single boolean logic instruction execution speed of 0.1 microsecond and floating-point control algorithm operation speed of 0.5 microsecond to meet fast response demand of multi-loop continuous closed-loop regulation. Internal storage consists of 8MB non-volatile program memory for permanent storage of user-edited control logic and customized application algorithms, plus 4MB high-speed volatile data memory for temporary caching of real-time process variables, periodic trend sampling data and intermediate operational parameters generated in each control scan cycle. Integrated multiple communication ports cover auto-adaptive 10/100BaseTX copper Ethernet port, optional 100Mbps fiber Ethernet for Evo network access, ControlNet fieldbus interface and RS232 local maintenance serial port, respectively responsible for upper backbone network docking, backplane bus connection and offline on-site parameter debugging tasks. Rated powered operating ambient temperature ranges from 0℃ to 60℃, while spare storage temperature spans -40℃ to 85℃ to adapt long-distance cross-regional shipment and long-term warehouse spare preservation. Remote online firmware upgrade can be accomplished through upper system configuration software without pulling out module from cabinet slot; field parameter modification can be finished either via exclusive local RS232 debugging cable or remote upper configuration platform to reduce extra on-site wiring transformation workload.

Standard matching accessory set includes exclusive Z-Bus backplane signal connector for precise pin docking with original I/A Series cabinet backplane, certified 24VDC redundant power supply module complying with factory cabinet power distribution specification, standard I/A chassis fixed installation guide rail and auxiliary signal transition terminal blocks for tidy on-site wiring arrangement. P0700KT retains full hardware compatibility with all Foxboro I/A Series FBM analog input, analog output, digital input and digital output I/O modules, allowing arbitrary quantity combination and flexible layout matching according to actual on-site I/O counting without extra intermediate conversion adapters. Optional maintenance spare accessories include dedicated RS232 debugging cable for local fault diagnosis and parameter calibration, regular anti-vibration mounting gaskets for standard cabinet installation and spare front panel indicator components for daily routine maintenance replacement.

P0700KT is installed inside central master control cabinet and field remote auxiliary cabinet of complete Foxboro Evo DCS automation system, supplying high-reliability core automatic control service for mainstream continuous-production industries such as petrochemical processing, coal-fired thermal power generation, municipal wastewater treatment, pulp & papermaking and fine chemical manufacturing. Typical application scenarios involve chemical reactor constant temperature closed-loop adjustment, pipeline medium flow fine trimming control, boiler combustion proportion safety interlock control, wastewater PH fixed-value regulation and full-workshop sequential safety protection interlock system construction. It acts as standard redundant core controller for newly-built complete Evo DCS engineering projects and qualified alternative spare part for overhaul maintenance of faulty redundant control stations on existing aging I/A Series DCS operation sites to rapidly restore regular running status of malfunctioned control cabinets.
