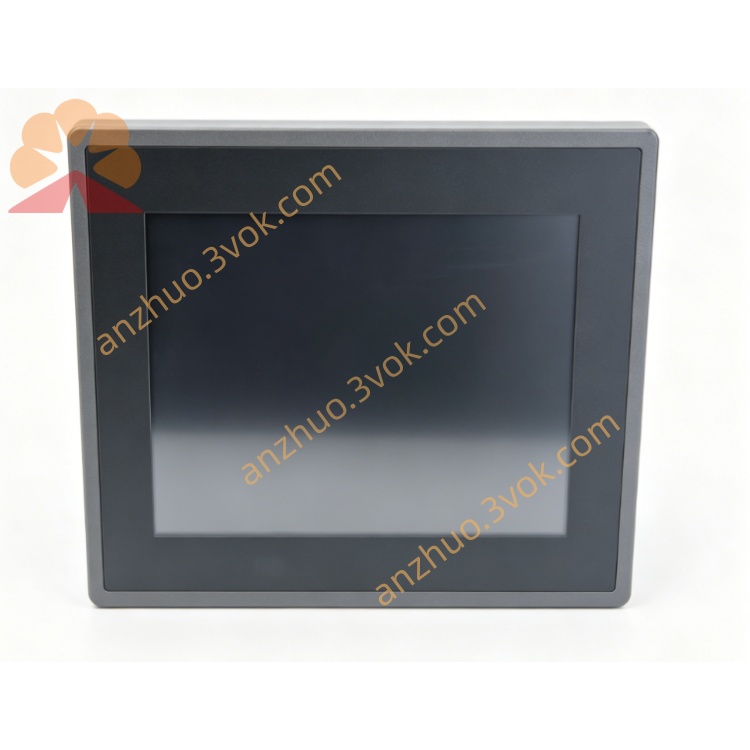

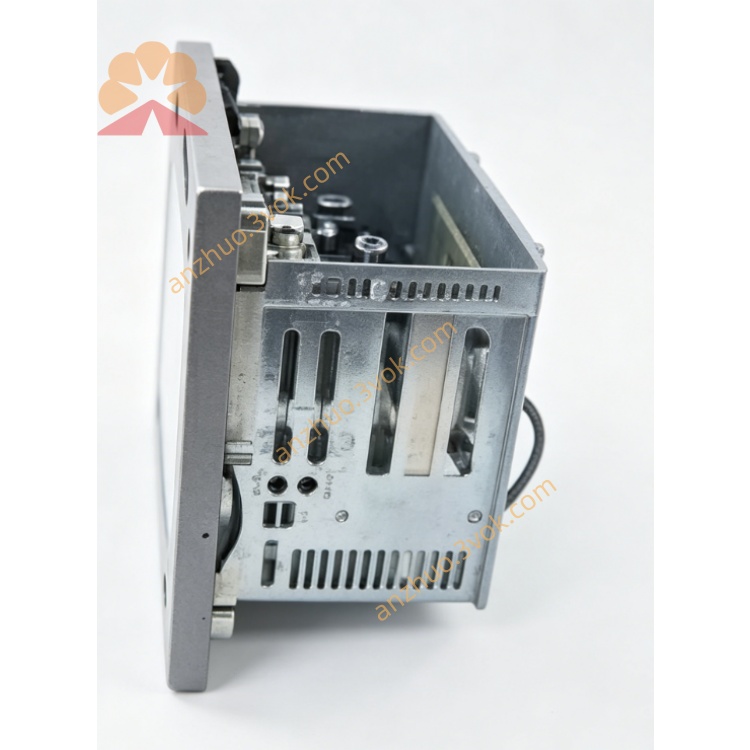

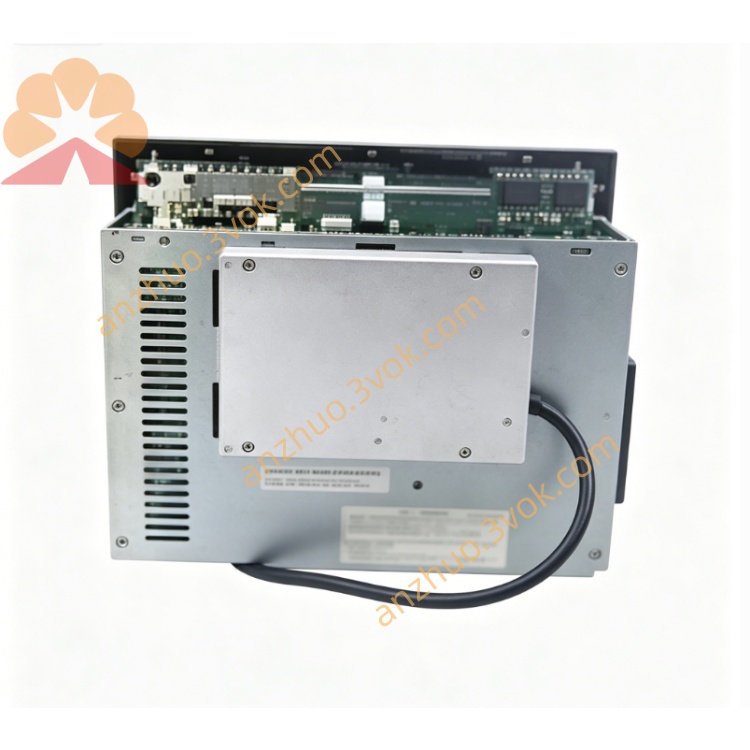

3512T
Description
1. General Information
Part Number: 3512T
Manufacturer: XYCOM Automation (Schneider Electric / Pro‑face)
Product Type: 12.1” Industrial Flat Panel PC with Touchscreen (HMI/IPC)
Series: 3500 Series
Status: Discontinued (EOL); refurbished/used available
Mounting: Panel mount
Weight: ~7.2 kg (16.0 lbs)
2. Display
Size: 12.1” TFT active matrix color LCDXYCOM
Resolution: 800 × 600 (SVGA)XYCOM
Brightness: Standard industrial grade
Backlight: CCFL, long life
Touchscreen: Analog resistive touchscreen (no keypad)XYCOM
3. System Hardware
CPU: Intel Celeron (600 MHz) / Pentium III (up to 1.26 GHz)
Memory: 128 MB DRAM (expandable to 512 MB / 2 GB max)
Storage: IDE HDD (80 GB typical; up to 320 GB), floppy/CD‑ROM options
Graphics: PCI video controller
Expansion: 3× slots (1 ISA, 1 PCI, 1 shared ISA/PCI)XYCOM
4. Power Supply
Input Voltage: 115/230 VAC, 50/60 Hz, autosensing
Power Consumption: ~30 W max
Protection: Overvoltage, overcurrent, surge
5. I/O Ports
Serial: 1×RS‑232, 1×RS‑232/485
Parallel: 1×SPP/EPP
Ethernet: 1×10/100 Mbps (RJ45, optional)XYCOM
PS/2: Keyboard/mouse
Infrared: IrDA‑compatible
Audio: Line in/out, mic
VGA: External monitor portXYCOM
6. Mechanical Specifications
Front Panel (W×H): 419 × 330 mm (16.5” × 13.0”)
Depth: 127 mm (5.0”); ~102 mm (4.0”) behind panel
Front Panel Rating: NEMA 4/4X/12, IP65XYCOM
Housing: Rugged metal, industrial grade
7. Environmental Ratings
Operating Temperature: 0 °C to +50 °C
Storage Temperature: −20 °C to +60 °C
Humidity: 10%–90% RH, non‑condensing
Vibration/Shock: IEC 60068 compliant
8. Software & OS
Preloaded OS: MS‑DOS, Windows 95/98/NT/2000XYCOM
Compatible OS: QNX, VxWorks
9. Certifications
Safety: UL 508, CE; UL Class I Div 2, Class II Div 2XYCOM
EMC: FCC Class A, CE EN 61000‑6‑2/4
10. Availability & Replacement
Original New: Discontinued
Supply: Tested refurbished, used spares
Recommended Replacement: Pro‑face GP5000/GP6000 series 12.1” industrial touch panel
