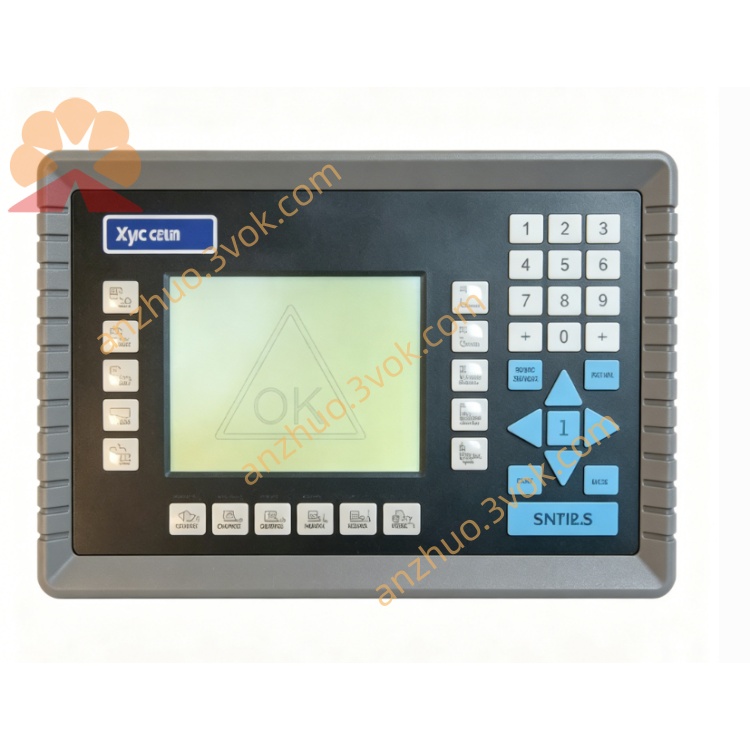

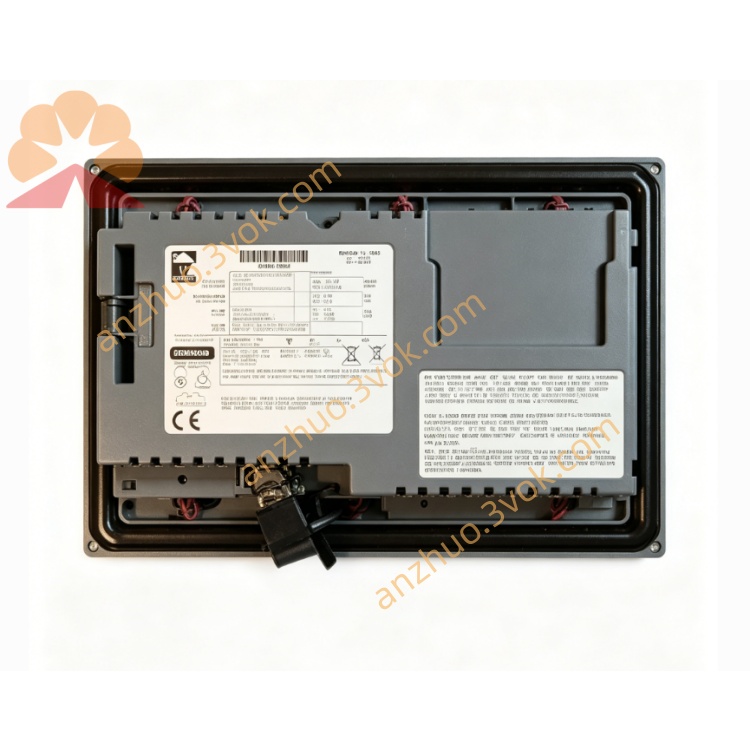

1. General Information

• Part Number: 3100M (3100-000000000)

• Manufacturer: XYCOM Automation (Schneider Electric / Pro‑face)

• Product Type: 5" Industrial Operator Interface Panel (HMI)

• Series: 3100 Series

• Status: Discontinued (EOL); Refurbished/Used Available

• Weight: 2.5 kg (5.5 lbs) approx

• Mounting: Panel mount

2. Display

• Size: 5" Industrial LCD

• Type: Monochrome/Color TFT

• Resolution: 320 × 240 QVGA

• Backlight: LED, long life

• Brightness: Typical 250 cd/m²

3. Keypad & User Interface

• Keyboard: 48‑key membrane keypad

• Keys: Function keys, numeric keypad, arrow keys, ENTER

• Key Legends: Relegendable

• Front Panel: Sealed, industrial grade

4. Power Supply

• Input Voltage: 90–250 VAC, 50/60 Hz, 0.6 A

• Type: Internal wide‑range switching power supply

• Protection: Overvoltage, overcurrent, surge

5. Communication & I/O

• Serial: 1 × RS‑232 (DB9)

• Protocols: XYCOM proprietary, Modbus RTU

• Expansion: Optional I/O modules (system dependent)

6. Mechanical Specifications

• Dimensions (W×H×D): 241 × 172 × 56 mm (9.5 × 6.8 × 2.2 in)

• Front Panel Rating: NEMA 4/4X/12, IP65 (sealed)

• Housing: Rugged metal, industrial environment

7. Environmental Ratings

• Operating Temperature: 0 °C to +50 °C

• Storage Temperature: −20 °C to +70 °C

• Humidity: 10%–90% RH, non‑condensing

• Vibration: IEC 60068‑2‑6 compliant

• Shock: IEC 60068‑2‑27 compliant

8. Certifications

• Safety: UL 508, CE

• EMC: FCC Class A, CE EN 61000‑6‑2/4

9. Compatibility

• Host Systems: XYCOM 2000T, 2050T, 2225‑0036, 278229‑P, 3015KPM, 3015T, VME‑based motion systems

• OS Compatibility: Windows 2000/XP, DOS, QNX, VxWorks (via host)

10. Availability & Replacement

• Original New: Discontinued

• Supply: Tested refurbished units, used spares

• Recommended Replacement: Pro‑face GP4000 series 5" HMI
