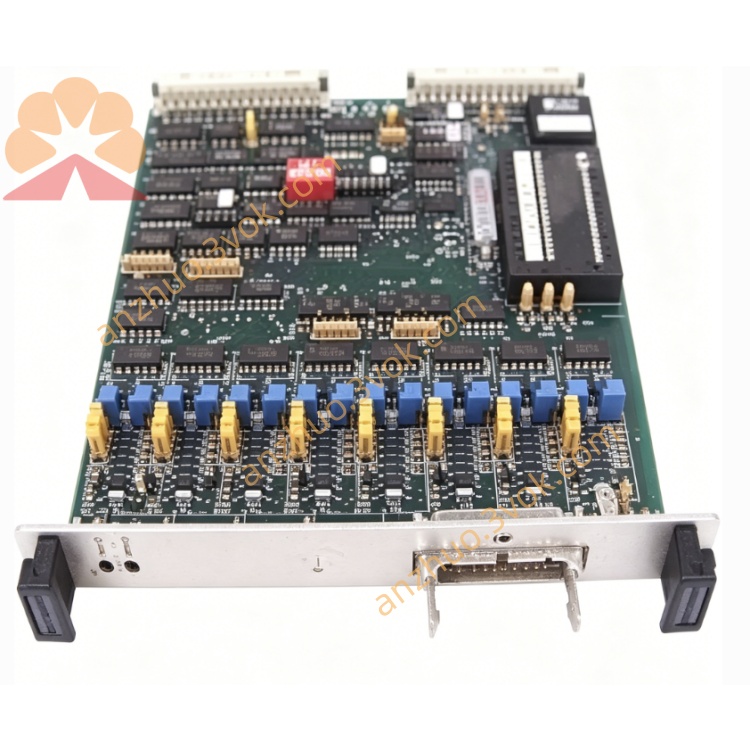

General Information

• Part Number: 121470-001

• Manufacturer: XYCOM Automation (Schneider Electric)

• Type: Printed Circuit Board (PCB) / Industrial Accessory Board

• Status: Legacy EOL (discontinued; available as refurbished/used)

• Weight: Approx. 1 lb (0.45 kg)

• Used In: XYCOM legacy industrial PCs & workstations (complementary to 90630204, 90636107, 513018503)

Product Description

Key Features

• Form Factor: Compact, standard embedded PCB size for XYCOM chassis

• Function: Signal routing, auxiliary I/O, or power distribution (factory-configured)

• Compatibility: Matches XYCOM 9000/9900 series industrial computers; pin-compatible with related legacy boards

• Construction: Industrial-grade PCB, high-temperature components, conformal coating option

Electrical & Environmental

• Voltage: 5/12/24 VDC (industrial standard)

• Protection: Overvoltage, surge, and ESD protection

• Operating Temp: 0 °C to +50 °C

• Storage Temp: −40 °C to +85 °C

• Humidity: 10%–90% non-condensing

Compatibility & Applications

• Direct Replacements: For 121470-series XYCOM PCBs

• Systems: XYCOM 9487, 9960, 9987 panel PCs; VMEbus workstations

• Use Cases: Factory automation, process control, HMI systems, legacy PLC/DCS monitoring

Availability

• Original: Discontinued by Schneider Electric

• Spare Parts: Refurbished, used, or surplus units available from industrial repair/recycling vendors
