General Information

• Part Number: 90636107 (also marked 83060C)

• Manufacturer: XYCOM Automation (Schneider Electric)

• Type: Industrial Embedded CPU Board / SBC

• Status: Legacy EOL (discontinued; available as refurbished/used)

• Weight: Approx. 2 lb (0.9 kg)

• Used In: XYCOM 9000/9900 series industrial panel PCs (e.g., 9960, 9987)

Product Description

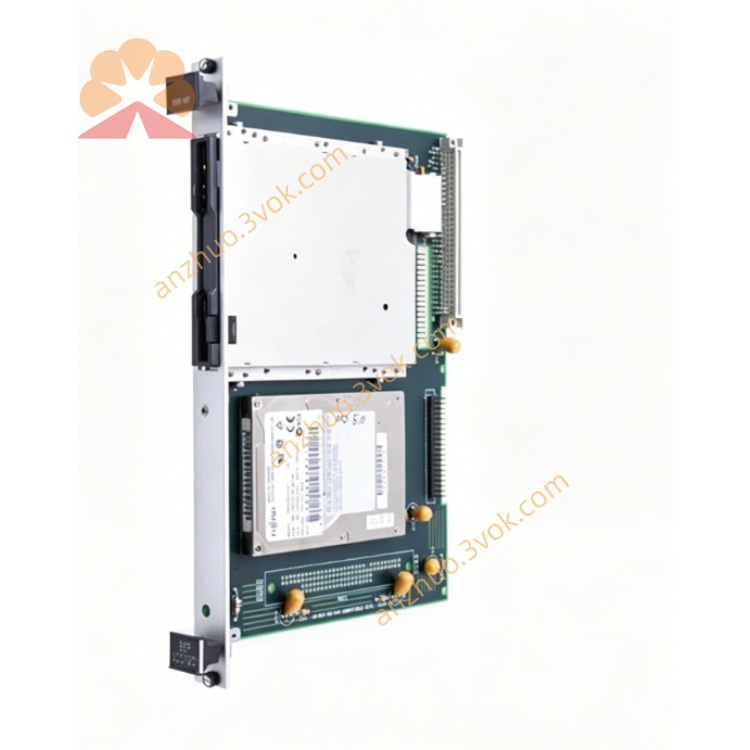

• 90636107 (83060C) is a compact industrial single-board computer (SBC) serving as a replacement/alternate CPU board for XYCOM’s legacy 9000-series panel-mount IPCs. It shares the same form factor and ISA bus interface as the 90630204 (83594B) but with a different PCB revision (83060C vs. 83594B).

System Hardware

• CPU: Intel 486/Pentium-class industrial processor (varies by revision)

• Memory: Up to 256 MB DRAM (max 512 MB)

• Storage Interfaces:

  • 3.5-inch 1.44 MB floppy (front-accessible)

  • IDE port for hard disk/CompactFlash (up to 512 MB)

• Video: Onboard VGA (640×480, compatible with 10.4” TFT LCDs in 9960/9987)

I/O & Communication

• Serial: 2× RS-232 (COM1/COM2)

• Parallel: Standard printer port

• PS/2: Keyboard & mouse ports

• USB: 1.1 ports (later revisions)

• Ethernet: Optional 10/100 BaseT (add-on module)

• Expansion: ISA bus (connects to 4-slot passive backplane in 9987)

Electrical

• Power: 110 W industrial power supply (90–250 VAC, 47–63 Hz)

• Protection: Surge/noise filtering; CE/FCC Class A certified

Environmental

• Operating Temp: 0 °C to +50 °C

• Storage Temp: −40 °C to +85 °C

• Humidity: 10%–90% non-condensing

• Shock/Vibration: Industrial-grade (IEC 60068 compliant)

Key Differences from 90630204 (83594B)

• PCB Revision: 83060C (90636107) vs. 83594B (90630204)

• Component Layout: Minor differences in I/O connector placement and chipset

• Compatibility: Pin-to-pin compatible with 90630204; direct replacement for 9960/9987 systems

Applications

• XYCOM 9960/9987 portrait-style panel PCs (main CPU board replacement)

• Factory automation, process control, and production line HMIs

• Legacy PLC/DCS monitoring, data acquisition, and machine control
