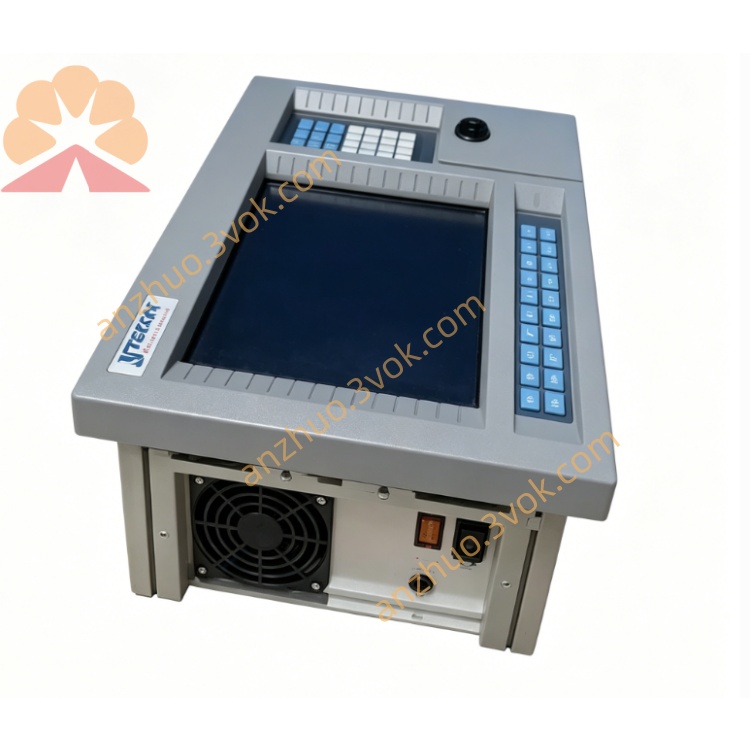

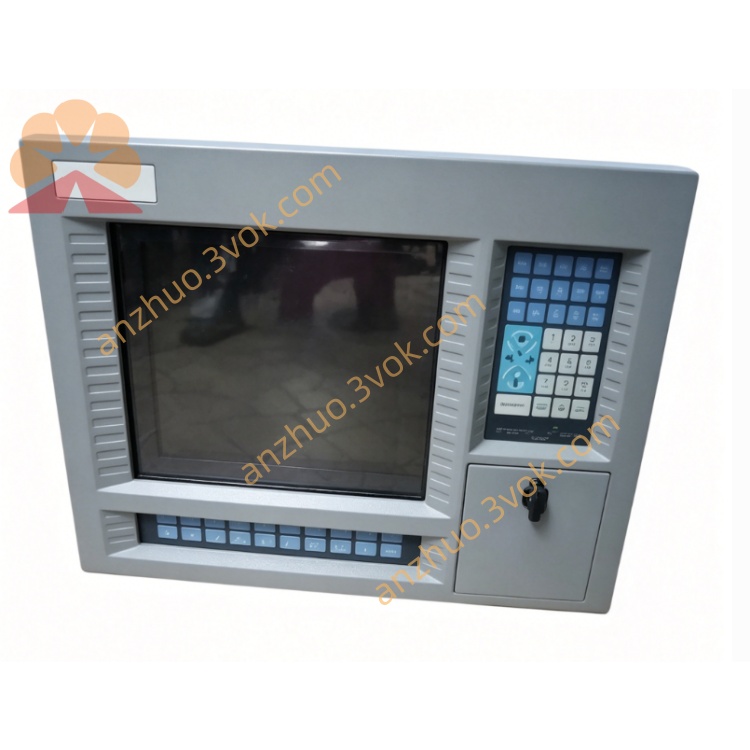

9487
Model: XYCOM 9487
Manufacturer: XYCOM Automation
Product Type: Panel-mounted flat-panel industrial workstation & HMI
Installation: Panel mount, compatible with standard 19-inch EIA rack mounting
Front Panel Protection: NEMA 4, NEMA 4X, NEMA 12, IP65 dustproof and waterproof
Mounting Depth: 143mm
Net Weight: Approx. 31 lb
Product Status: Discontinued, only for legacy equipment maintenance and spare part replacement
Optional hazardous location certification: Class I Division 2, Class II Division 2, Temperature Code T4
Description
Model: XYCOM 9487Manufacturer: XYCOM AutomationProduct Type: Panel-mounted flat-panel industrial workstation & HMIInstallation: Panel mount, compatible with standard 19-inch EIA rack mountingFront Panel Protection: NEMA 4, NEMA 4X, NEMA 12, IP65 dustproof and waterproofMounting Depth: 143mmNet Weight: Approx. 31 lbProduct Status: Discontinued, only for legacy equipment maintenance and spare part replacementOptional hazardous location certification: Class I Division 2, Class II Division 2, Temperature Code T4XYCOM
Electrical Specifications
AC Power Input: 90–250 VAC universal wide voltage, 50/60Hz autosensingOptional DC Power: 20–25 VDC nominal 24V input, max 25W, 8A peak currentDC Outputs: +5V, +12V, -12VWhole Machine Max Power Consumption: 150WBuilt-in industrial isolated power, surge protection and anti-interference designCertifications: UL, cUL, CE, FCC Class A
Display & Operation
Display: 10.4-inch active matrix TFT color LCDNative Resolution: 640×480 VGAOptional: 5-wire resistive industrial touchscreen with safety toughened glassKeypad: Programmable sealed industrial keypad, 20 function keys + 32 data keys, relegendable key labelsFront Panel: Physical keys for brightness and contrast adjustment, power, disk and communication status LED indicators, built-in system fault diagnosis functionXYCOM
System Hardware Configuration
Processor: Intel Pentium 233MHz MMX industrial CPUSystem Memory: 64MB DRAM, expandable to higher capacityStorage: Up to 10GB IDE hard disk; optional front/rear accessible 1.44MB floppy disk driveMotherboard: PCI video controller, PCI EIDE storage controllerExpansion Backplane: 4-slot full-length ISA passive backplane, 3 usable expansion slotsSupported Operating Systems: MS-DOS, Windows 95, Windows NT 4.0Modular slide-out internal structure, convenient for quick component maintenance and replacementXYCOM
External Communication Interfaces
Serial Ports: 2 channels switchable RS232 / RS485Parallel Port: Standard printer parallel interfaceEthernet: Optional 10/100Mbps adaptive network portPeripheral Interfaces: PS/2 keyboard & mouse, multi-channel USB industrial expansion interfaces
Environmental Performance
Operating Temperature: -10°C to 50°CStorage Temperature: -40°C to 60°CAmbient Humidity: 10%–90% non-condensingIndustrial-grade shock resistance and vibration resistance, stable long-term operation in harsh workshop dust, humidity and vibration environments
Application Fields
On-site industrial automation control, production line parameter monitoring and debuggingMatching old-fashioned PLC, DCS and industrial control systemWidely applied in machinery manufacturing, chemical processing, electric power, metallurgy and dangerous area industrial sites
