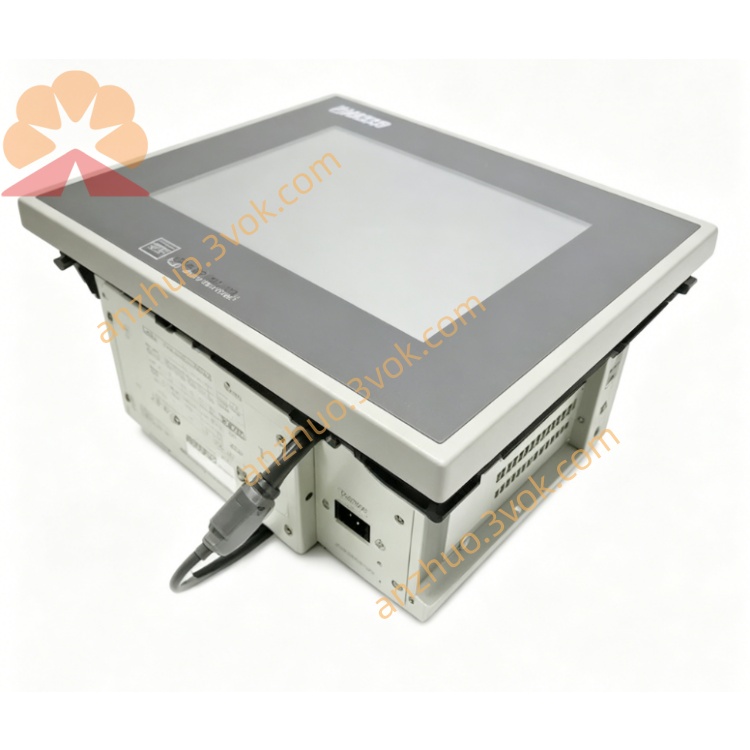

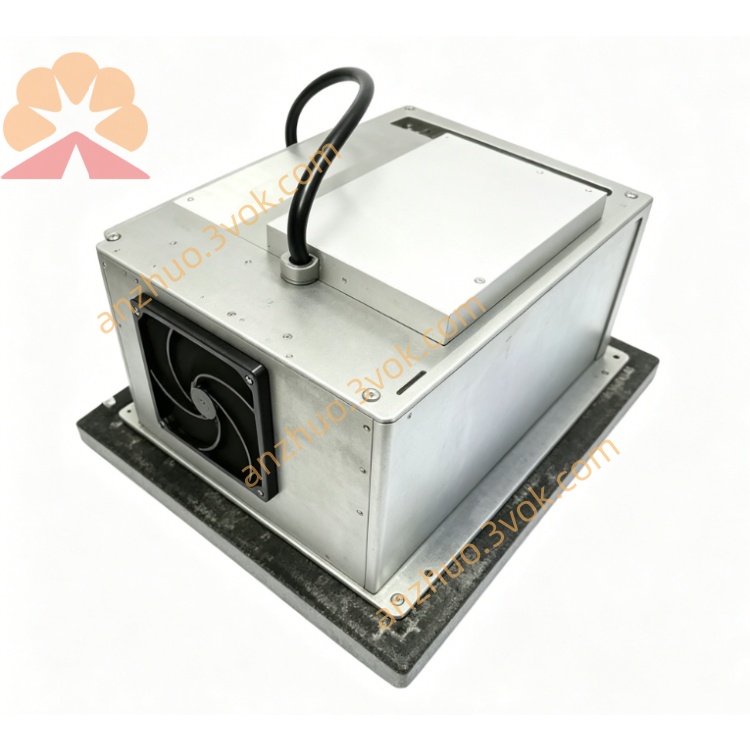

Model: XYCOM 9460Manufacturer: XYCOM AutomationProduct Type: PC/AT compatible flat panel industrial computerInstallation Type: Embedded panel mountingFront panel protection standard meets NEMA 4, NEMA 4X, NEMA 12 and IP65 degreeTotal weight is about 10.4 kilogramsThis product has been officially discontinued, mainly used for maintenance and replacement of old industrial control equipment on site

Wide range AC power input with automatic voltage switching function, applicable input voltage ranges from 90V to 132V and 180V to 264VWorking frequency supports 50Hz and 60HzOptional 20V to 36V DC power supply version for special industrial occasionsThe maximum overall power consumption is 150 wattsAdopts industrial isolated power supply design, built-in surge protection and electromagnetic interference suppression circuit to adapt to complex power environment

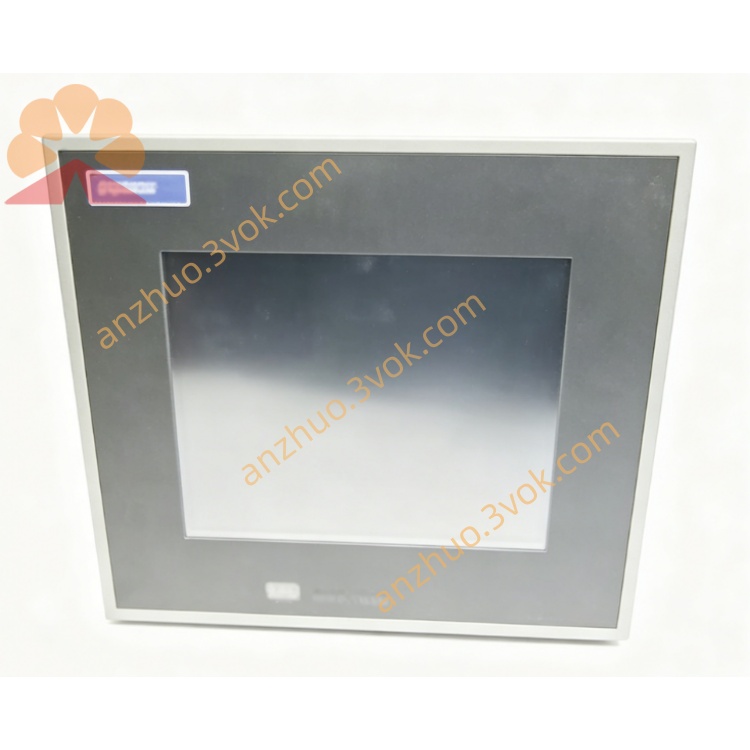

Equipped with 10.4 inch industrial color LCD display screenStandard display resolution is 640 by 480 pixelsSupport optional five-wire resistive industrial touch screen operationModel 9460KP version is equipped with integrated fully sealed industrial membrane keyboardFront panel reserved installation position for optional floppy disk driveFront side equipped with physical adjustment keys for screen contrast brightness

Built-in Intel Pentium and Pentium MMX series industrial processorEquipped with 72 pin EDO industrial memory slot, the maximum expandable memory capacity is 128MBAdopts standard IDE interface mechanical hard disk as main storage deviceEquipped with PCI bus independent graphics card with 2MB video memory, and reserved external VGA display expansion interfaceBuilt-in multiple PCI and ISA standard expansion slots to meet various functional expansion demandsSystem operating system supports DOS, Windows 95 and Windows NT 4.0 classic industrial versions

Dual serial communication ports are configured, one is fixed RS232 signal, the other can be switched to RS232 or RS485 signal modeStandard DB25 parallel printer interface is reservedOnboard 10/100 megabit adaptive Ethernet communication interfaceComplete PS2 keyboard and mouse expansion interface and dual USB1.1 external ports are providedOptional rear infrared communication interface can be installed according to actual use needs

Normal continuous working temperature range is 0 degree Celsius to 50 degree CelsiusSafe storage temperature range is minus 40 degree Celsius to 60 degree CelsiusApplicable ambient humidity range is 20 percent to 80 percent relative humidity, no condensation phenomenon is allowedIt has industrial grade anti-shock and anti-vibration performance, fully conforms to on-site harsh working environment standards

Passed UL, cUL, CE and FCC Class A industrial safety and electromagnetic compatibility certificationCan be applied to conventional industrial workshops and partial hazardous area control occasions

Suitable for on-site data monitoring, parameter setting and operation control of industrial automation production linesPerfectly matched with various old models of PLC control systems to realize stable data communicationWidely used in mechanical manufacturing, chemical industry, electric power, metallurgy and other traditional industrial control fields
