1. General Information

• Model: 8503

• Manufacturer: XYCOM Automation (Pro‑face)

• Type: Industrial CRT Operator Interface / HMI Console

• Mounting: Panel mount / freestanding industrial console

• Enclosure: Heavy‑duty steel, NEMA 4/12, IP65 front

• Weight: ~43 lb (19.5 kg)

• Status: Legacy / discontinued (refurbished & spare parts only)

2. Electrical

• Input Voltage: 115 / 230 VAC, 50/60 Hz, auto‑range

• Current: 0.7 A @ 115V; 0.35 A @ 230V

• Power Supply: Isolated industrial PSU, surge & EMI protected

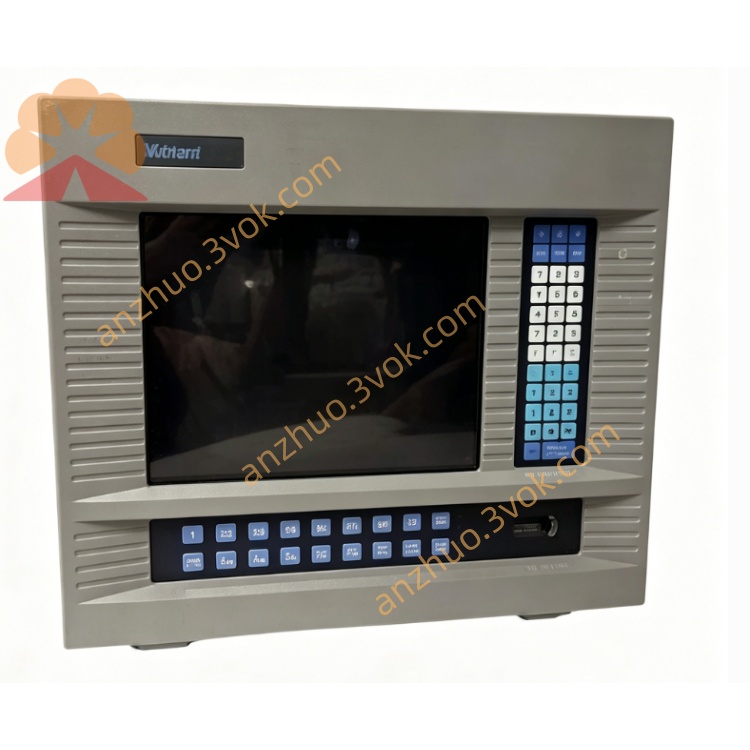

3. Display & Input

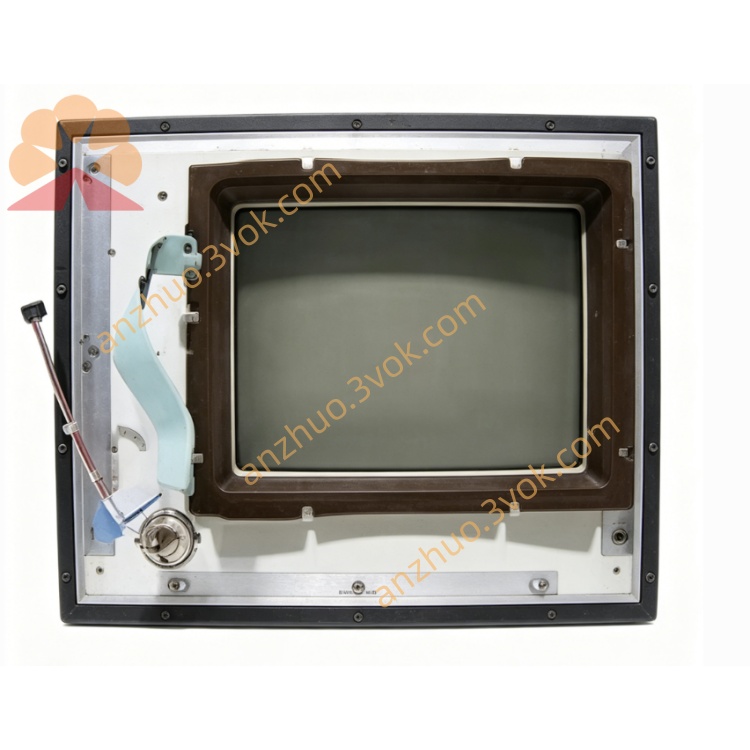

• Display: 14” CRT color monitor

• Resolution: 800×600 SVGA

• Keypad: Integrated industrial membrane keyboard (sealed)

• Touch: Optional 5‑wire resistive touchscreen

• Front Panel: Sealed, dust/water resistant (IP65)

4. System Hardware

• Form Factor: Integrated industrial PC (AT‑compatible)XYCOM

• CPU: Intel Pentium III (up to 1.26 GHz)XYCOM

• Memory: 256 MB standard, up to 512 MB DRAMXYCOM

• Storage: 3.5” IDE HDD + floppy disk drive

• Expansion: 4× ISA/PCI slotsXYCOM

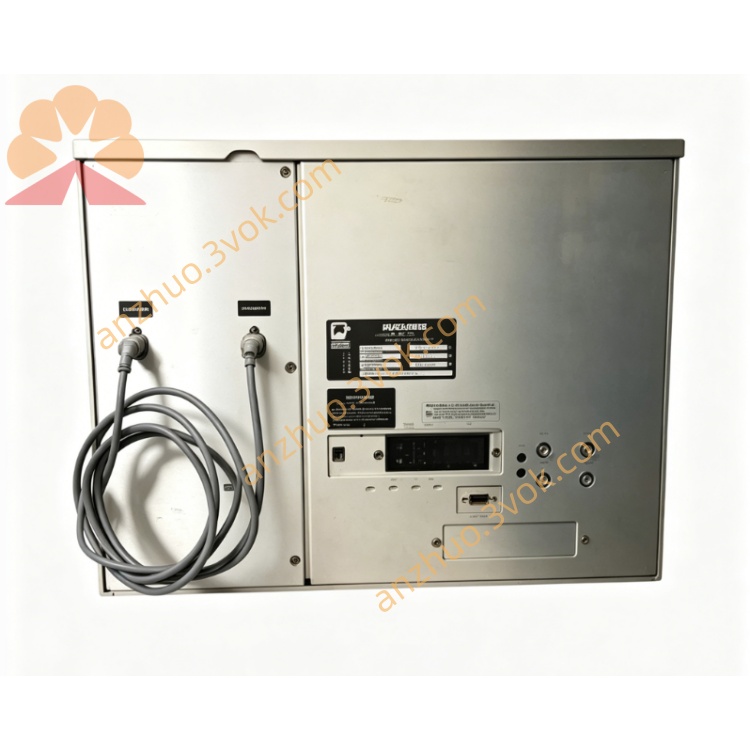

5. Interfaces (Rear)

• Serial: RS‑232 ×2 (one supports RS‑485)XYCOM

• Parallel: Printer port (DB25)XYCOM

• USB: USB 1.1 ×2XYCOM

• Ethernet: 10/100 Base‑TXYCOM

• PS/2: Keyboard & mouseXYCOM

6. Environmental

• Operating Temp: 0 °C to +50 °CXYCOM

• Storage Temp: −20 °C to +60 °CXYCOM

• Humidity: 20%–80% RH, non‑condensingXYCOM

• Vibration: IEC 60068‑2‑6 compliant (industrial grade)XYCOM

7. Certifications

• UL, cUL, CE, FCC Class AXYCOM

• Hazardous Location: Class I/II, Division 2, Groups A–D, F–G; T5XYCOM

8. Applications

• Factory floor HMI, process control, SCADA nodes

• Legacy system replacement, industrial console upgrades

• Harsh manufacturing, chemical, and food & beverage environments
