General Information

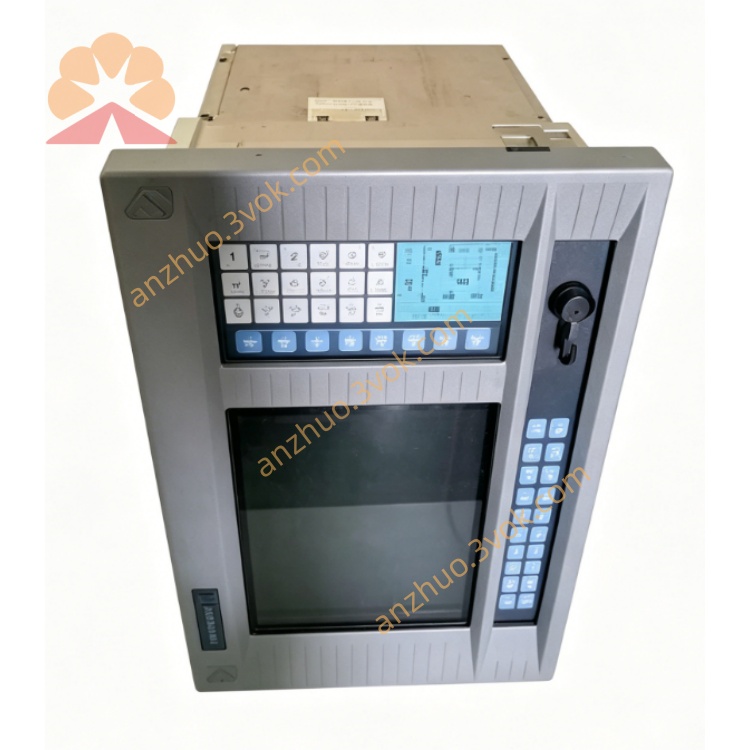

• Model: XYCOM 2050 (Industrial CRT Operator Interface / Workstation)

• Manufacturer: XYCOM (Xycom Automation, USA)

• Product Type: Panel-mount industrial HMI/workstation, integrated PLC & monitor

• Part Numbers: 2050, 98033-021 (LCD upgrade kit)

• Application: Factory automation, process control, heavy industry (power, petrochemical, metallurgy)

• Mounting: Panel mount (bezel for standard cutout)

• Protection Class: Front NEMA 4 / IP65; rear IP20

• Weight: 45.0 lb (20.4 kg)

• Dimensions (H×W×D): 14.5 × 18.5 × 12 in (368 × 470 × 305 mm)

Electrical Specifications

• Supply Voltage: 110 / 240 V AC, 50/60 Hz (universal)

• Current Draw: 1.12 A @ 110 VAC; 0.7 A @ 240 VAC

• Power Consumption: ~120 W max.

• Isolation: Industrial-grade isolation on all comms ports

• Protection: Overvoltage, surge, ESD, reverse polarity

Display & Input

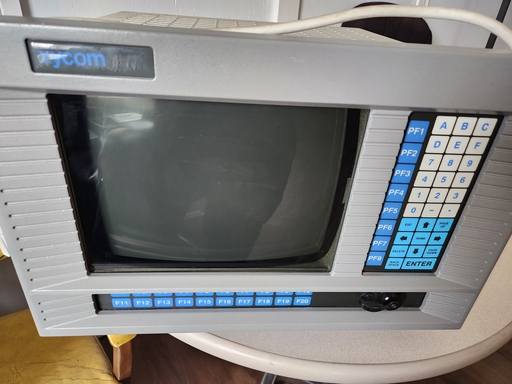

• Display: 12-inch industrial monochrome CRT (standard); upgradeable to 10.4-inch LCD (kit ML104LN2050)

• Resolution: 640 × 480 (VGA)

• Brightness: High-brightness, factory-floor readable

• Keypad: 24 dedicated function keys + 32-key alphanumeric keypad

• Touchscreen: Not equipped (CRT + keypad only)



System & Memory

• CPU: 32-bit industrial processor (proprietary)

• RAM: 512 KB (expandable to 2 MB)

• Flash Memory: 2 MB (firmware, apps, logs)

• Real-Time Clock: Battery-backed (10-year retention)

• OS: Proprietary real-time OS (RTOS)

Communication Interfaces

• Ethernet: Optional 10/100 Base‑T (RJ45)

• Serial:

  • COM1: RS‑232/422/485 (DB9)

  • COM2: RS‑232 (DB9)

• Fieldbus: Optional PROFIBUS‑DP, DeviceNet, Modbus RTU/TCP

• Parallel: Centronics‑compatible (DB25, printer port)

Environmental Conditions

• Operating Temperature: 0 °C to +50 °C (32 °F to 122 °F); extended: -20 °C to +60 °C

• Storage Temperature: −40 °C to +70 °C (−40 °F to 158 °F)

• Relative Humidity: 10%–95%, non‑condensing

• Altitude: ≤ 2000 m (6562 ft)

• Vibration: 5–200 Hz, 0.15 mm amplitude (EN 61131‑2)

• Shock: 15 g, 11 ms duration (EN 61131‑2)

Compliance & Standards

• EMC: CE mark (2004/108/EC), EN 55022, EN 55024

• Safety: UL 508, cUL, EN 61131‑2

• Hazardous Locations: Class I, Div. 2 (optional)

Compatibility

• Protocols: Modbus RTU/TCP, Allen‑Bradley DF1, Siemens S7, Omron FINS

• Software: XYCOM HMI Configurator, third‑party SCADA

• Legacy Systems: Compatible with XYCOM 1840, 2000, 2005, 3300 series

Notes

• Status: Obsolete (EOL); available as refurbished/legacy stock

• Upgrade: CRT can be replaced with LCD kit (P/N 98033‑021) for lower power & longer life

• Specifications: Subject to change; refer to official XYCOM manual
