General Information

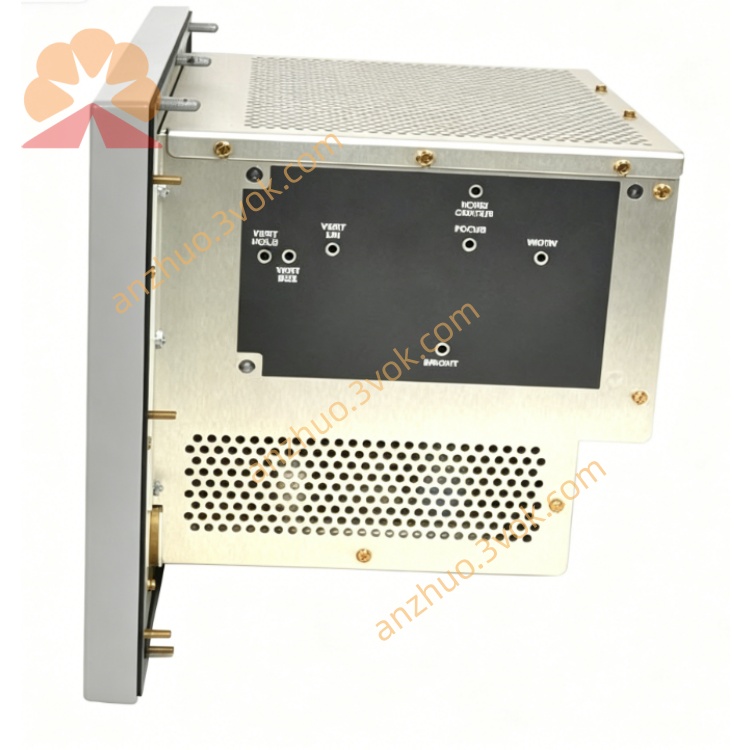

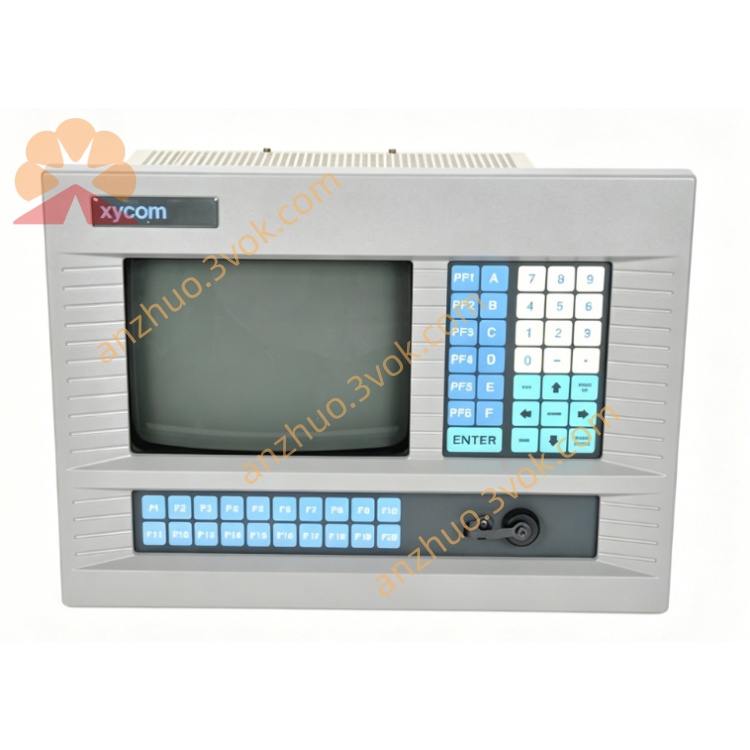

• Model: XYCOM 2005 (Industrial Workstation / Operator Terminal)

• Manufacturer: XYCOM (Xycom Automation, USA; Pro‑face subsidiary)

• Product Type: CRT‑based industrial operator interface / workstation

• Part Numbers: 2005, 97958, 97958‑021

• Application: Factory automation, process control, machine monitoring

• Mounting: Panel mount (bezel for standard cutout)

• Protection Class: Front NEMA 4 / IP65; rear IP20

• Weight: 20–24 lb (9.1–10.9 kg)

• Dimensions (H×W×D): 12.2 × 16.25 × 10.13 in (310 × 413 × 257 mm)

Electrical Specifications

• Supply Voltage: 90–250 V AC, 47–63 Hz (universal)

• Current Draw: 0.86 A max.

• Power Consumption: ~75 W max.

• Isolation: Industrial‑grade isolation on communication ports

• Protection: Overvoltage, surge, ESD, reverse polarity

Display & Input

• Display: 9‑inch monochrome CRT (industrial grade)

• Resolution: 640 × 480 (VGA)

• Brightness: High‑brightness, factory‑floor readable

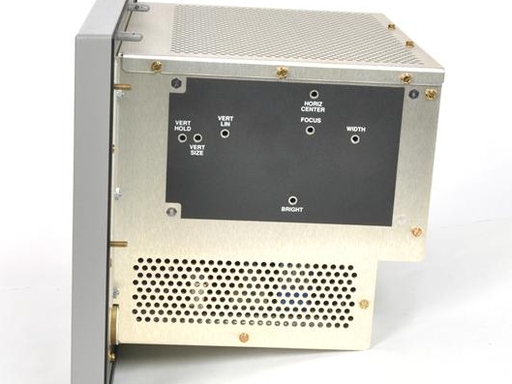

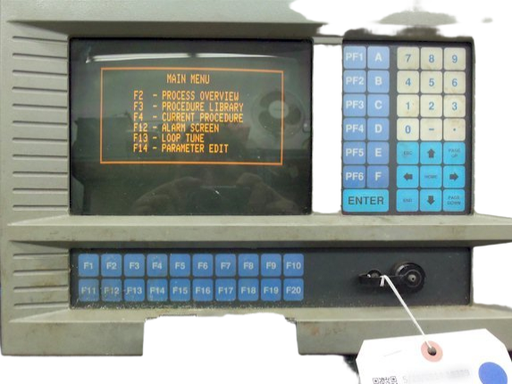

• Keypad: 20 dedicated function keys + 34‑key alphanumeric keypad

• Touchscreen: Not equipped (CRT + keypad only)

System & Memory

• CPU: 32‑bit industrial processor (proprietary)

• RAM: 512 KB (expandable to 2 MB)

• Flash Memory: 2 MB (firmware, applications, logs)

• Real‑Time Clock: Battery‑backed (10‑year retention)

• OS: Proprietary real‑time OS (RTOS)

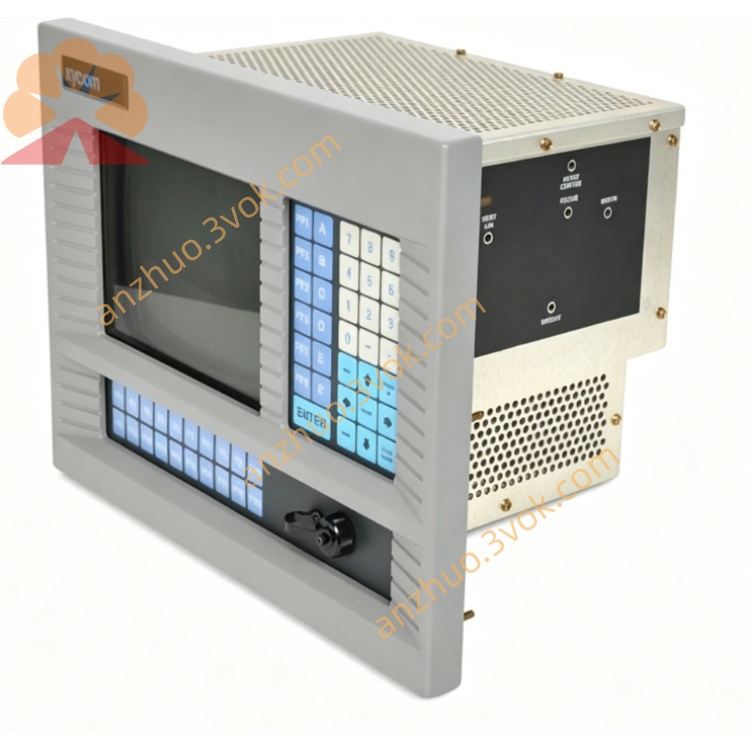

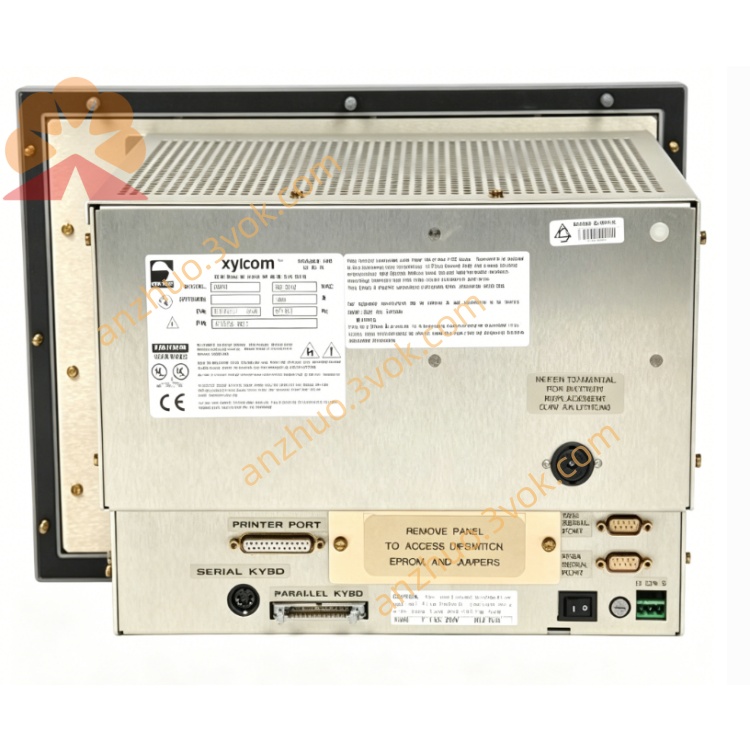

Communication Interfaces

• Ethernet: Optional 10/100 Base‑T (RJ45)

• Serial:

  • COM1: RS‑232/422/485 (DB9)

  • COM2: RS‑232 (DB9)

• Fieldbus: Optional PROFIBUS‑DP, DeviceNet, Modbus RTU/TCP

• Parallel: Centronics‑compatible (DB25, printer port)

Environmental Conditions

• Operating Temperature: 0 °C to +50 °C (32 °F to 122 °F)

• Storage Temperature: −40 °C to +70 °C (−40 °F to 158 °F)

• Relative Humidity: 10%–95%, non‑condensing

• Altitude: ≤ 2000 m (6562 ft)

• Vibration: 5–200 Hz, 0.15 mm amplitude (EN 61131‑2)

• Shock: 15 g, 11 ms duration (EN 61131‑2)

Compliance & Standards

• EMC: CE mark (2004/108/EC), EN 55022, EN 55024

• Safety: UL 508, cUL, EN 61131‑2

• Hazardous Locations: Class I, Div. 2 (optional)

Compatibility

• Protocols: Modbus RTU/TCP, Allen‑Bradley DF1, Siemens S7, Omron FINS

• Software: XYCOM HMI Configurator, third‑party SCADA

• Legacy Systems: Compatible with XYCOM 1840, 2000, 3300 series

Notes

• Status: Obsolete (EOL); available as refurbished/legacy stock

• Specifications: Subject to change; refer to official XYCOM manual
