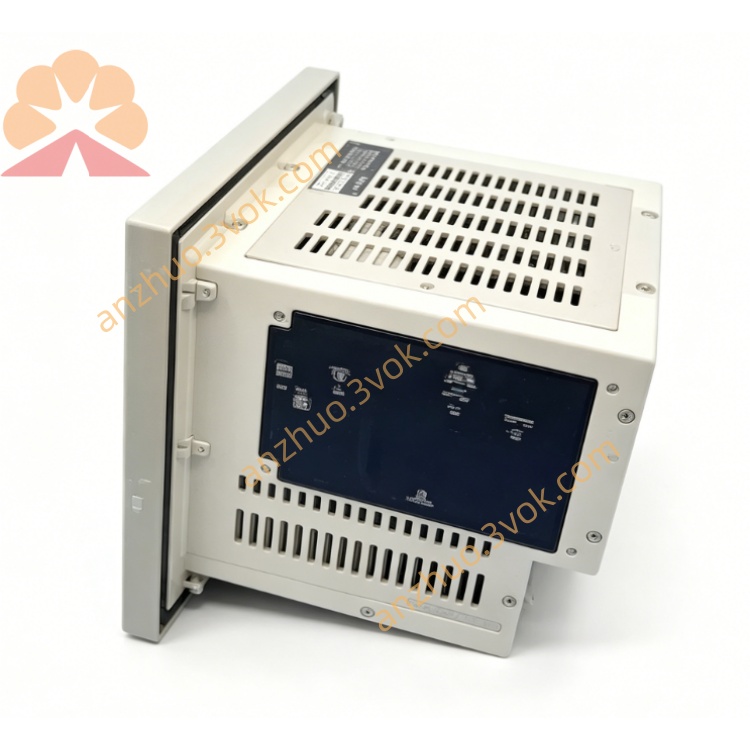

• Model: 2000 (2000‑T variant)

• Manufacturer: XYCOM (Xycom Automation, USA)

• Product Type: Industrial Operator Interface Terminal (HMI)

• Application: Factory automation, machine control, process monitoring

• Mounting: Panel mount (standard cutout)

• Protection Class: Front panel NEMA 4 / IP65; rear IP20

• Weight: Approx. 1.5 kg (3.3 lb)

• Dimensions (W×H×D): 200 × 150 × 120 mm (7.9 × 5.9 × 4.7 in)

Electrical Specifications

• Supply Voltage: 90–250 V AC, 50/60 Hz (universal)

• Current Draw: 0.86 A max.

• Power Consumption: ~75 W max.

• Isolation: Input/output isolation for industrial noise immunity

• Protection: Overvoltage, surge, ESD, reverse polarity

Display & Input

• Display: 9‑inch industrial LCD, monochrome/color option

• Resolution: 640 × 480 (VGA) typical

• Brightness: High‑brightness, sunlight‑readable

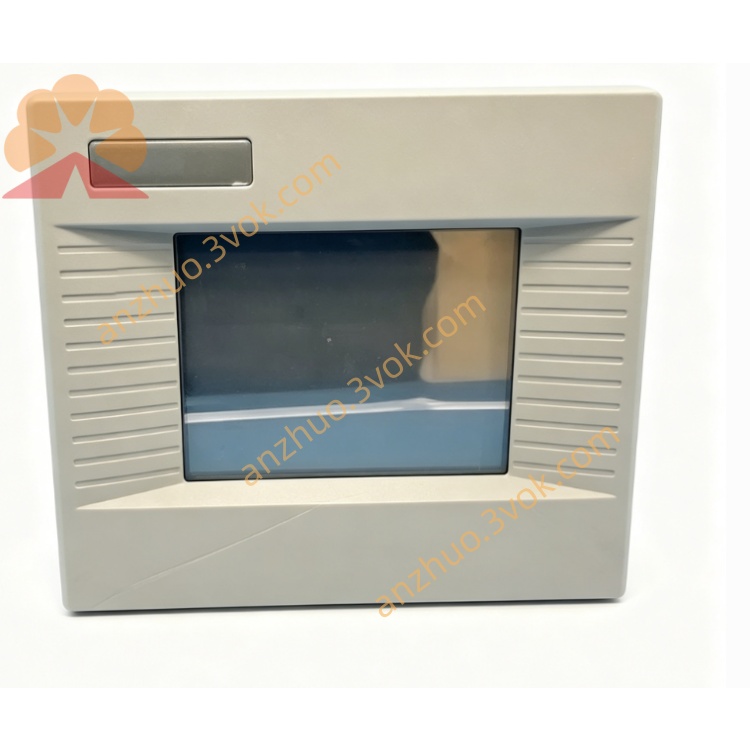

• Touchscreen: Resistive analog (2000‑T); optional keypad

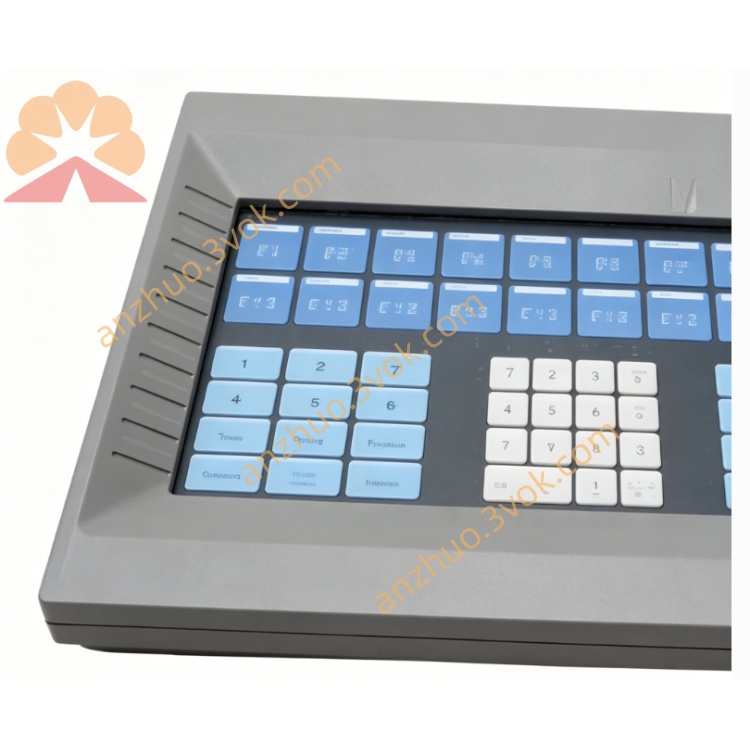

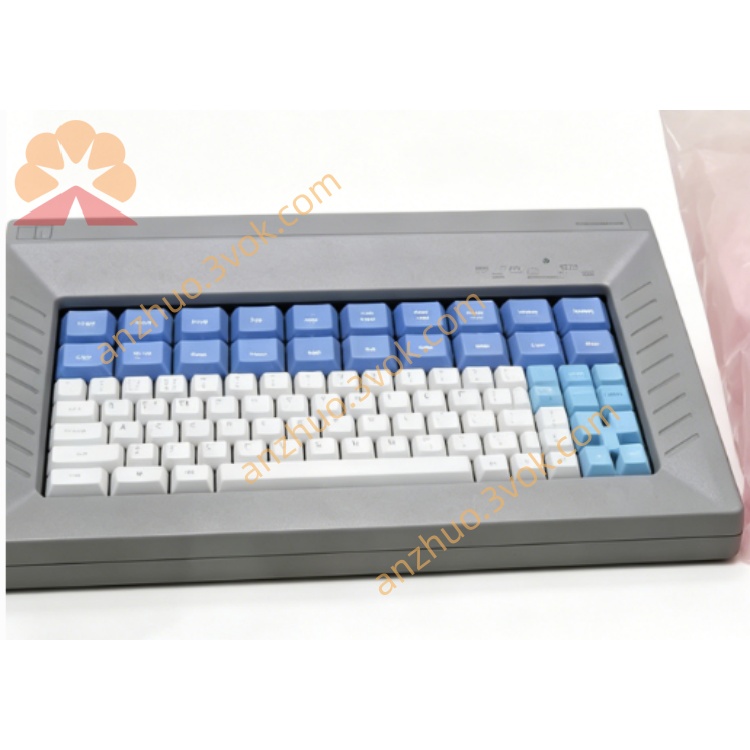

• Keypad: 20+ tactile function keys (standard on 2000)

System & Memory

• CPU: Industrial 32‑bit processor

• RAM: 512 KB (expandable to 2 MB)

• Flash Memory: 2 MB (firmware, application, logs)

• Real‑Time Clock: Battery‑backed, 10‑year retention

• OS: Proprietary real‑time OS (RTOS)

Communication Interfaces

• Ethernet: 10/100 Base‑T (RJ45, optional)

• Serial:

  • COM1: RS‑232/422/485 (DB9)

  • COM2: RS‑232 (DB9)

• Fieldbus: Optional PROFIBUS‑DP, DeviceNet, Modbus RTU/TCP

• USB: 1 × USB 1.1 (front/rear, optional)

Environmental Conditions

• Operating Temperature: 0 °C to +50 °C (32 °F to 122 °F)

• Storage Temperature: −40 °C to +70 °C (−40 °F to 158 °F)

• Relative Humidity: 10%–95%, non‑condensing

• Altitude: ≤ 2000 m (6562 ft)

• Vibration: 5–200 Hz, 0.15 mm amplitude (EN 61131‑2)

• Shock: 15 g, 11 ms (EN 61131‑2)

Compliance & Standards

• EMC: CE (2004/108/EC), EN 55022, EN 55024

• Safety: UL 508, cUL, EN 61131‑2

• Hazardous Locations: Class I, Div. 2 (optional)

Compatibility

• Protocols: Modbus RTU/TCP, Allen‑Bradley DF1, Siemens S7, Omron FINS

• Software: XYCOM HMI Configurator, third‑party SCADA

• Legacy Systems: Compatible with XYCOM 1840, 3300 series

Notes

• Status: Obsolete (EOL); available as refurbished/legacy stock

• Specifications: Subject to change; refer to official XYCOM manual
