1. General Data

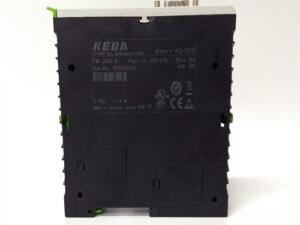

• Model: FM265/A

• Manufacturer: KEBA AG

• Order No.: 067215

• Type: PROFIBUS DP Slave Communication Module (KeConnect C2 series)

• Application: For KeControl C2/K2 controllers (e.g., CP033/Y) to connect PROFIBUS DP slave devices (sensors, drives, I/O stations).

• Mounting: KEBA K2/C2 backplane / DIN rail.

• Protection Class: IP20KEBA.

• Weight: Approx. 135 g.

• Dimensions (W×H×D): 22.5 × 120 × 100 mm.

2. Electrical Specifications

• Supply Voltage: 24 V DC (±10%) via K‑bus.

• Current Consumption: ≤ 0.25 A (≈ 6 W).

• Protocol: PROFIBUS DP‑V1 (Slave).

• Baud Rate: Up to 12 Mbit/s.

• Data Exchange: Cyclic process data + acyclic parameter data.

• Isolation: 500 V AC (bus vs. internal electronics).

• Protection: Overvoltage, reverse polarity, ESD, short‑circuit.

• Parameter Storage: Electronic parameter chip (battery‑free).

3. Interfaces & Indicators

• PROFIBUS: DB9 female connector (slave).

• Backplane: K2/C2 bus (connects to CPU).

• Configuration: Via KEBA KAS IDE software.

• LEDs:

  • PWR: Green (power on).

  • RUN: Green (running; blinking = startup).

  • FLT: Red (fault).

  • BUS: Yellow (PROFIBUS activity).

4. Environmental Conditions

• Operating Temperature: +5 °C … +55 °C.

• Storage Temperature: −40 °C … +70 °C.

• Relative Humidity: 10 %–95 %, non‑condensing.

• Altitude: ≤ 2000 m above sea levelKEBA.

• Vibration/Shock: Compliant with EN 61131‑2.

5. Compliance & Standards

• EMC: 2004/108/EC, EN 55022, EN 55024KEBA.

• Safety: EN 61131‑2, Protection Class III.
