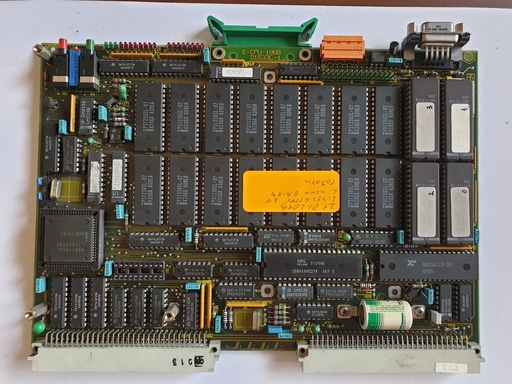

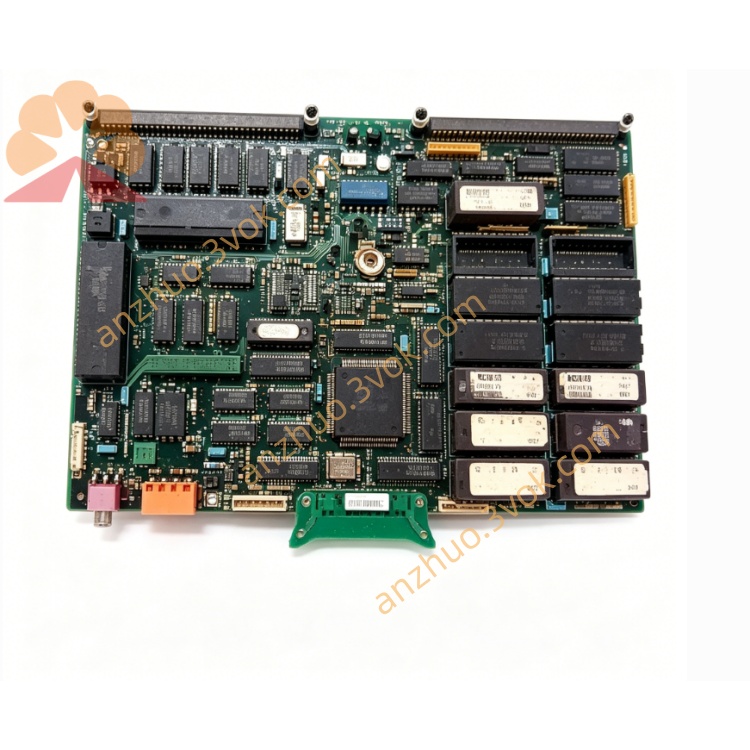

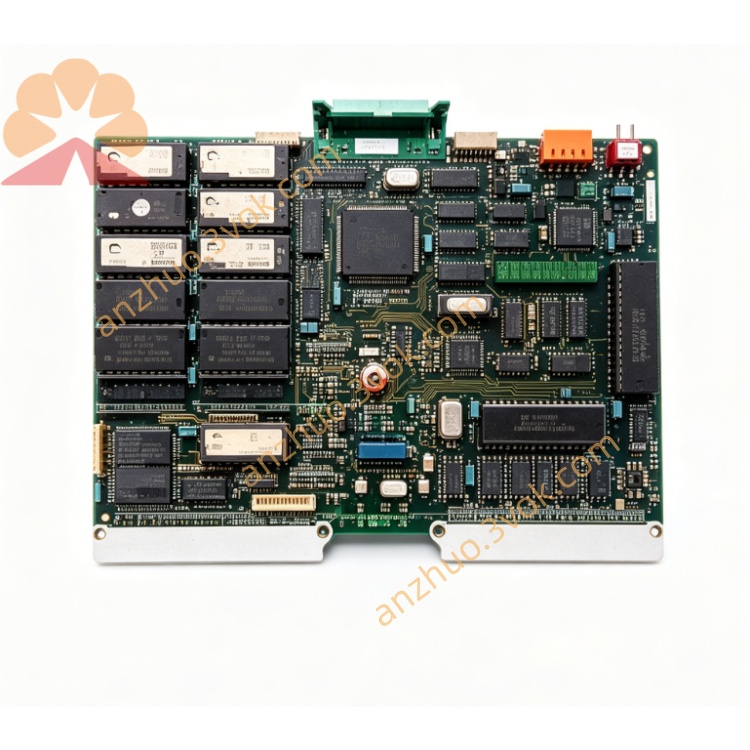

E-CPU-186

1. General Information

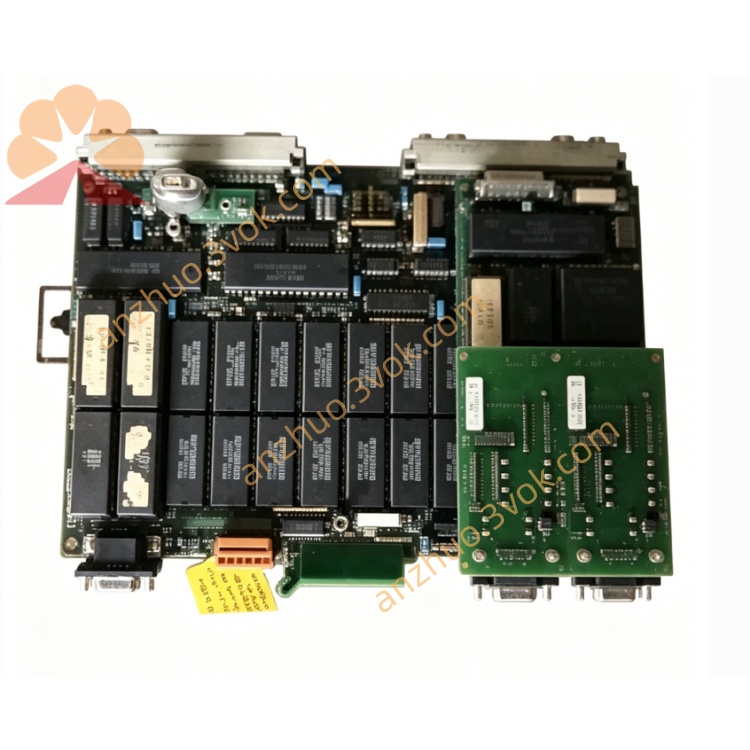

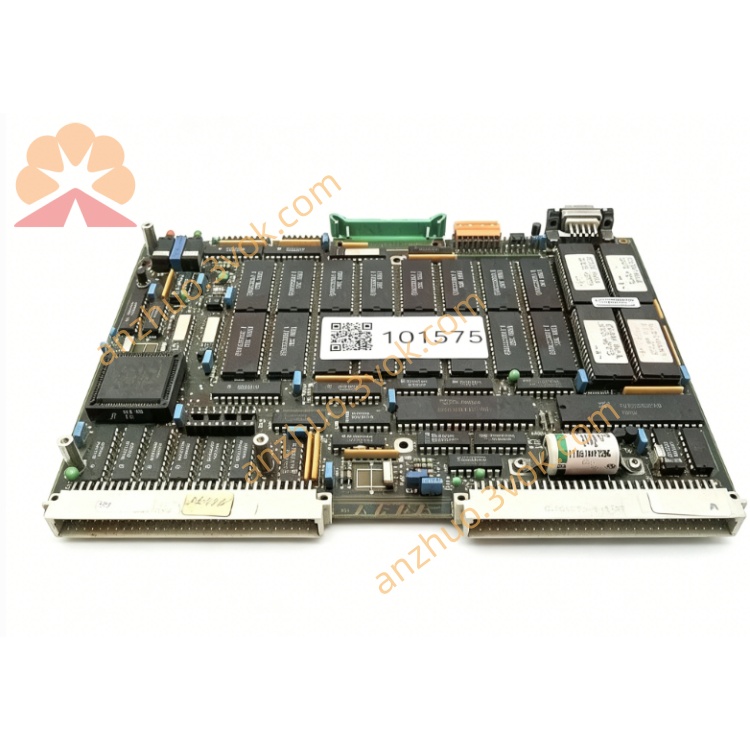

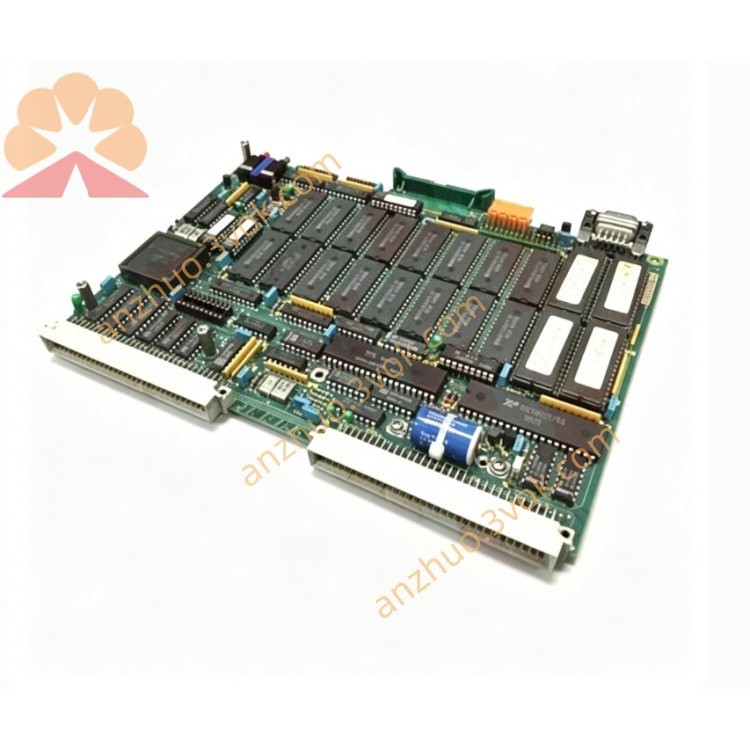

• Model: E-CPU-186 (Variants: E-CPU-186/B, E-CPU-186-B/12M, E-CPU-186-C/16MHz)

• Brand: KEBA (Austria)

• Processor: Intel 80C186 16-bit CPU, 12 MHz (standard)

• Application: Dedicated master CPU for Engel injection molding machines, industrial automation systems

• Status: Discontinued (obsolete), only second-hand/refurbished spare parts available

• Weight: Approx. 0.45 kg

• Board Identifier: D1633C (matches related I/O modules like DC162)

2. Hardware Architecture

• CPU Core: Intel 80C186, 12 MHz (16 MHz optional for -C variant)

• Memory: Onboard RAM/ROM (capacity varies by hardware version)

• System Bus: KEBA proprietary K-Bus (connects to I/O modules: DC162, E-16-DIGOUT/G, etc.)

• Interfaces:

  • Serial port (RS-232/RS-485)

  • K-Bus communication port

  • Status LEDs (Power, Run, Fault)

• Form Factor: Standard rack-mount PCB for industrial control cabinets

3. Electrical Specifications

• Power Supply: DC 24V ±10%

• Power Consumption: Approx. 15W

• Protection Features: Overvoltage, undervoltage, overcurrent, short circuit, reverse polarity, EMC interference suppression

• Operating Temperature: 0°C to +55°C

• Storage Temperature: -40°C to +85°C

• Humidity: 5%–95% RH, non-condensing

• Protection Class: IP20 (for cabinet installation)

4. Key Functions

1. System Master Control: Runs control programs for injection molding/automation equipment; executes logic, motion control, and I/O scheduling.

2. Communication Management: Real-time data exchange with I/O modules via K-Bus; handles digital/analog signal acquisition and output.

3. Motion Control: Governs servo/hydraulic axes for precise positioning and speed regulation (Engel machine optimized).

4. Fault Diagnosis & Monitoring: Real-time system status tracking; error logging and alarm output for maintenance.

5. Program Execution: Stores and runs user application programs; supports online monitoring and parameter configuration.

5. Installation Guidelines

1. Power Off First: Disconnect all power before installing/removing the module.

2. Rack Installation: Insert smoothly into a standard control rack slot and secure firmly.

3. Wiring Practice: Separate low-voltage signal cables from high-power lines to avoid crosstalk.

4. Ventilation: Ensure adequate airflow around the module for heat dissipation.

5. Compatibility: Use only with matching KEBA CU-series CPUs and I/O modules.

6. Safety Notes

• Qualified Personnel Only: Installation, commissioning, and maintenance must be performed by trained technical staff.

• No Unauthorized Modification: Do not disassemble or alter the module’s internal circuitry; this voids warranty and risks equipment damage.

• Rated Operation: Operate within specified voltage/current ranges to prevent burnout or system failure.

• Industrial Environment: Designed for indoor industrial use; avoid exposure to dust, moisture, or corrosive gases.

7. Troubleshooting (Basic)

• Power LED Off: Check 24V DC supply and wiring; verify fuse integrity.

• Run LED Not Flashing: Confirm K-Bus connection; check for faulty I/O modules or program errors.

• Fault LED On: Review error logs; check for short circuits, overloads, or temperature issues.
