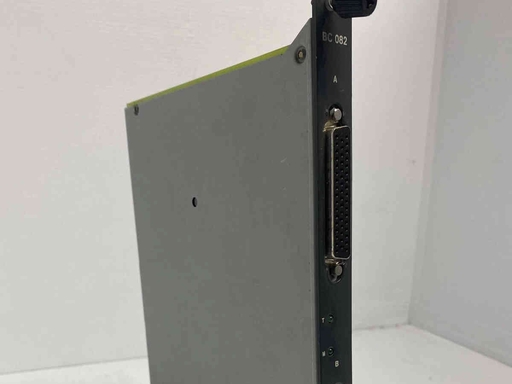

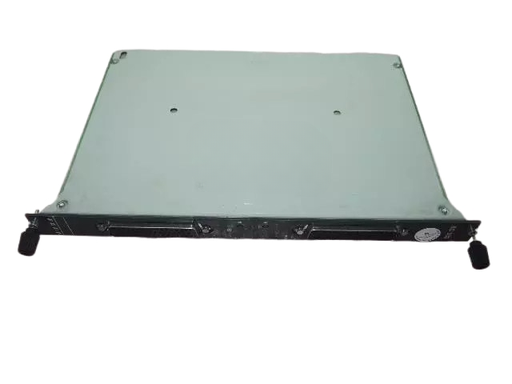

General Information

• Part Number: BC-082

• Manufacturer: KEBA (Austria)

• Product Type: Industrial control module / PLC expansion card

• Application: Injection molding machines, machine tools, robotic systems, industrial automation

Electrical Specifications

• Supply Voltage: 24 V DC (±10%)

• Power Consumption: Typical 12 W, max 20 W

• Operating Temperature: 0 °C to +55 °C

• Storage Temperature: -40 °C to +85 °C

• Humidity: 5%–95% RH, non-condensing

• Protection Class: IP20 (cabinet use only)

Mechanical Specifications

• Dimensions: 19 mm × 260 mm × 191 mm (0.75" × 10.2" × 7.5")

• Weight: ~0.7 kg (1.54 lbs)

• Form Factor: Standard Eurocard / VMEbus compatible

• Mounting: Rack-mount in industrial control cabinet

Hardware Features

• Processor: High-speed industrial CPU for real-time control

• Memory: Onboard RAM and flash for program/data storage

• I/O Interface: Digital inputs/outputs, analog channels (configurable)

• Communication: Ethernet, CANopen, Profibus-DP (optional)

• Status Indicators: Multi-color LEDs for power, run, fault, communication

Functional Description

• Real-time Control: Precision motion control, sequence control, process monitoring

• System Integration: Connects sensors, actuators, drives, and HMI

• Programming: Supports IEC 61131-3 standard languages

• Diagnostics: Self-test, fault logging, LED status indication

• Protection: Overvoltage, overcurrent, overtemperature, ESD protection

Compliance & Certification

• Standards: CE, RoHS, UL, CSA

• Industrial: EN 61131-2, EN 61000-6-2/4

• Environmental: Industrial EMC and vibration resistance

Installation & Maintenance

• Installation: Insert into standard industrial rack, secure with screws

• Wiring: Follow KEBA diagrams; use shielded cables for communication

• Maintenance: Inspect visually; keep ventilation slots clean

• Replacement: Power off system before removal/installation

Ordering Details

• Part Number: BC-082

• Description: KEBA BC-082 Industrial Control Module

• Lead Time: 4–6 weeks (standard); 2–3 weeks (express)

• Warranty: 12 months (factory standard)
