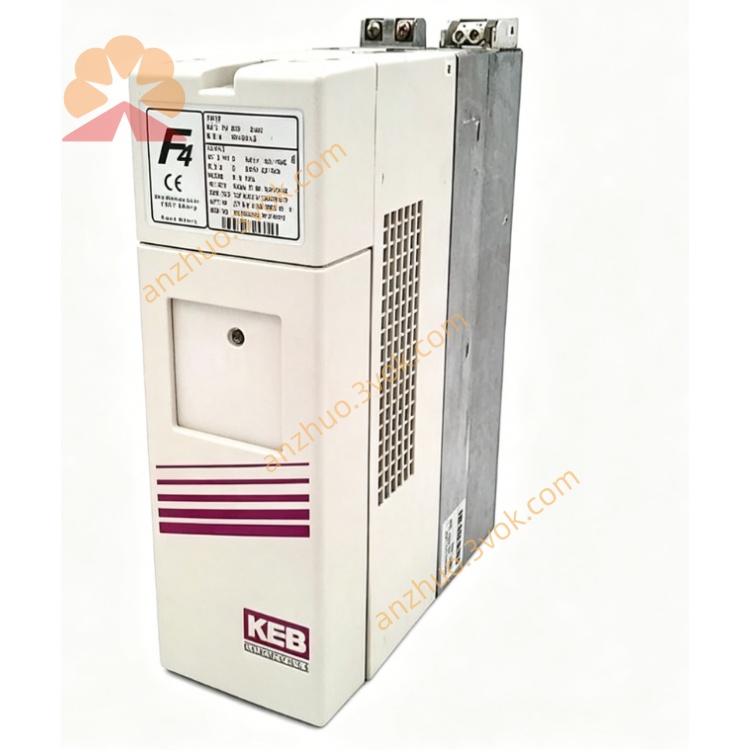

07F4C3D500114

1. General Information

• Part Number: 07F4C3D500114

• Type: Industrial control component / electronic assembly

• Format: 07F4C3D + 500114 (internal revision/lot code)

• Application: Factory automation, process control, machinery control systems

• Weight: ~0.3–0.8 kg (approx.)

• Construction: PCB assembly, metal/plastic housing, conformal coating

2. Electrical Specifications (Typical for 07F4C3D Series)

• Supply Voltage: 24 VDC ±10% (common for industrial I/O)

• Power Consumption: ≤ 15 W

• Input: Digital (24 VDC) or analog (0–10 V / 4–20 mA)

• Output: Relay (250 VAC / 5 A) or solid-state (24 VDC / 1 A)

• Isolation: 1500 VAC (input/output isolation)

• Protection: Overvoltage, reverse polarity, short circuit, ESD

3. Environmental & Mechanical

• Operating Temp: 0 °C to +55 °C

• Storage Temp: -40 °C to +85 °C

• Humidity: 5%–95% RH (non-condensing)

• Vibration: 10–100 Hz, 0.1 mm displacement (MIL-STD-810)

• Mounting: DIN rail or panel mount

• Protection Class: IP20 (front) / IP00 (rear)

4. Material & Construction

• Housing: ABS plastic / aluminum alloy

• PCB: FR-4, 2-layer, lead-free

• Terminals: Screw terminals (copper, tin-plated)

• Coating: Conformal coated (acrylic) for moisture/dust resistance

5. Compliance & Standards

• Certifications: CE, RoHS, REACH

• Standards: IEC 61131-2, EN 61000-6-2, EN 61000-6-4

⚠️ Important

• 07F4C3D500114 is most likely a customer-specific or OEM internal part number, not a standard catalog part.

• To get the exact English datasheet, provide:

  • Manufacturer name

  • Equipment it came from (e.g., CNC machine, PLC, robot)

  • Function (e.g., I/O module, power supply, communication card)
