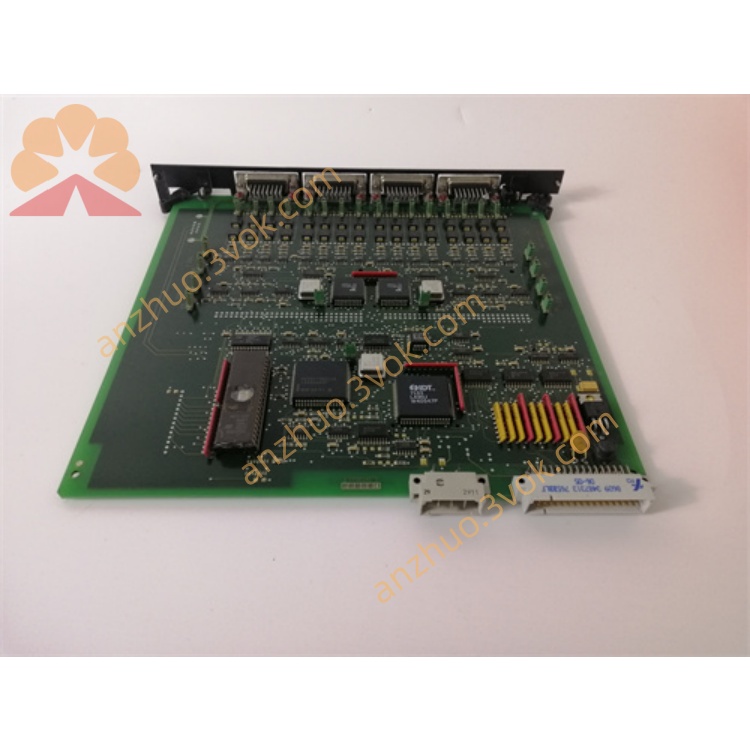

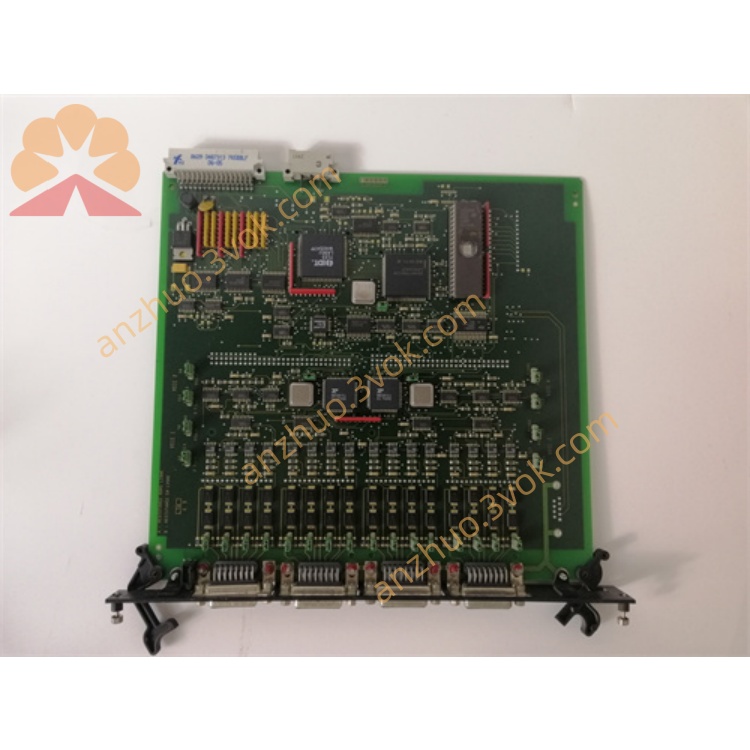

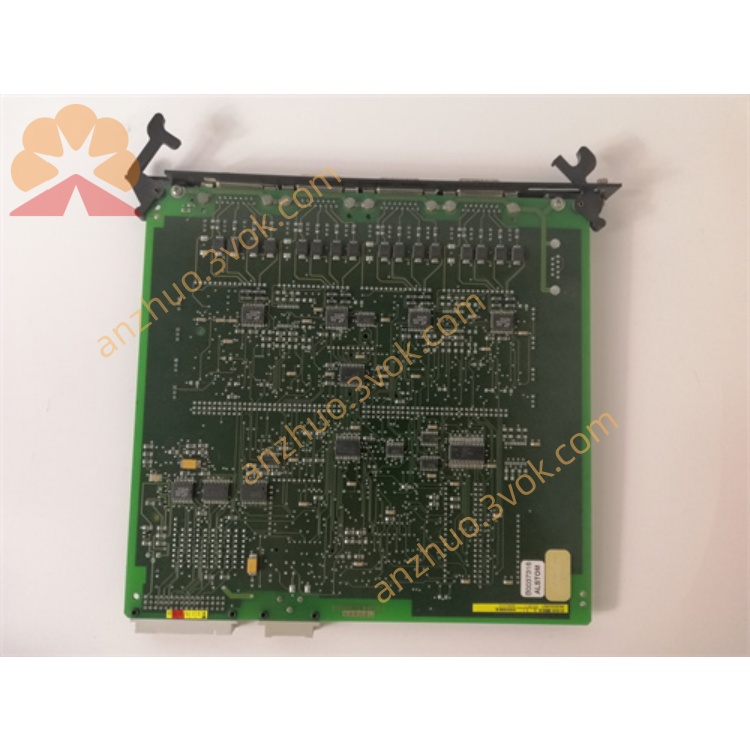

IR139-1 Product Specification (English Version)

1. Product Overview

2. Core Functions

1. Signal Processing: Collects multi-channel analog/digital sensor signals, completes signal isolation, conversion and real-time calculation, and outputs precise control commands.

2. Logic Control: Supports programmable logic control, allowing customization of complex control logic such as start/stop, speed regulation and protection, adapting to various industrial scenarios.

3. Data Communication: Compatible with multiple industrial protocols, enabling high-speed data transmission and remote monitoring between the module, host computer and other devices.

4. Fault Protection: Built-in over-voltage, over-current and electromagnetic interference protection circuits, with real-time self-test, fault diagnosis and alarm functions to ensure safe system operation.

5. Remote Maintenance: Supports remote parameter configuration, program update and troubleshooting, reducing on-site operation and maintenance costs.



6.

3. Technical Specifications

3.1 Electrical Parameters

• Power Supply: 24V DC ±10%

• Power Consumption: ≤8W

• Input Signal: 4 channels 0-10V analog, 16 channels isolated digital

• Output Signal: 8 channels digital (SPDT relay), 4 channels analog (4-20mA)

• Isolation Voltage: 2500V AC (between input/output/power)

3.2 Physical & Environmental Parameters

• Dimensions: 233mm × 175mm × 40mm

• Weight: Approx. 1kg

• Operating Temperature: -20℃ ~ +60℃

• Storage Temperature: -40℃ ~ +85℃

• Relative Humidity: 5%~95%RH (Non-condensing)

• Protection Rating: IP20 (Standard), IP65 (Optional High-protection)

• Mounting: Standard DIN rail mounting, hot-swappable

3.3 Performance Parameters

• Processor: Industrial-grade high-performance microcontroller

• Memory: 8MB RAM, 1MB Flash ROM

• Scan Time: ≤1ms (Standard control tasks)

• Communication Interface: RS232, RS485, Ethernet

• Supported Protocols: Modbus RTU, Profibus, Ethernet/IP

• Safety Certification: CE, UL, RoHS, compliant with IEC 61508 SIL2, API 670

4. Product Features

• Industrial-grade Reliability: Adopts military-grade components, resistant to vibration and electromagnetic interference, adapting to high temperature, high humidity and other harsh working conditions.

• Modular Design: Compact structure, supports multi-module cascade expansion, flexibly adapting to control systems of different scales.

• Multi-function Integration: Integrates I/O acquisition, control calculation and communication transmission, reducing system components and simplifying wiring.

• Easy to Use: Supports multiple programming methods such as ladder diagram and function block diagram, with easy-to-operate configuration software.

• High Compatibility: Seamlessly connects with ALSTOM CE2000 system and mainstream industrial equipment, with strong compatibility.



•

5. Applications

• Power Industry: Equipment control and grid monitoring & protection in power plants and substations.

• Rail Transit: Traction system control for subways and high-speed rails, automation equipment operation and maintenance in stations.

• Industrial Manufacturing: Automation control for steel metallurgy, automobile production lines and papermaking equipment.

• Energy Field: Equipment monitoring and power regulation in wind power and solar power plants.

• Petrochemical Industry: Closed-loop control of temperature, pressure and flow in production devices.

6. Ordering & Warranty

• Model: IR139-1 (Standard); IR139-2 (Extended I/O)

• Packaging: Anti-static bag + Carton box

• Warranty: 12 Months (New Original)

• Lead Time: 3-5 Days (In Stock)
