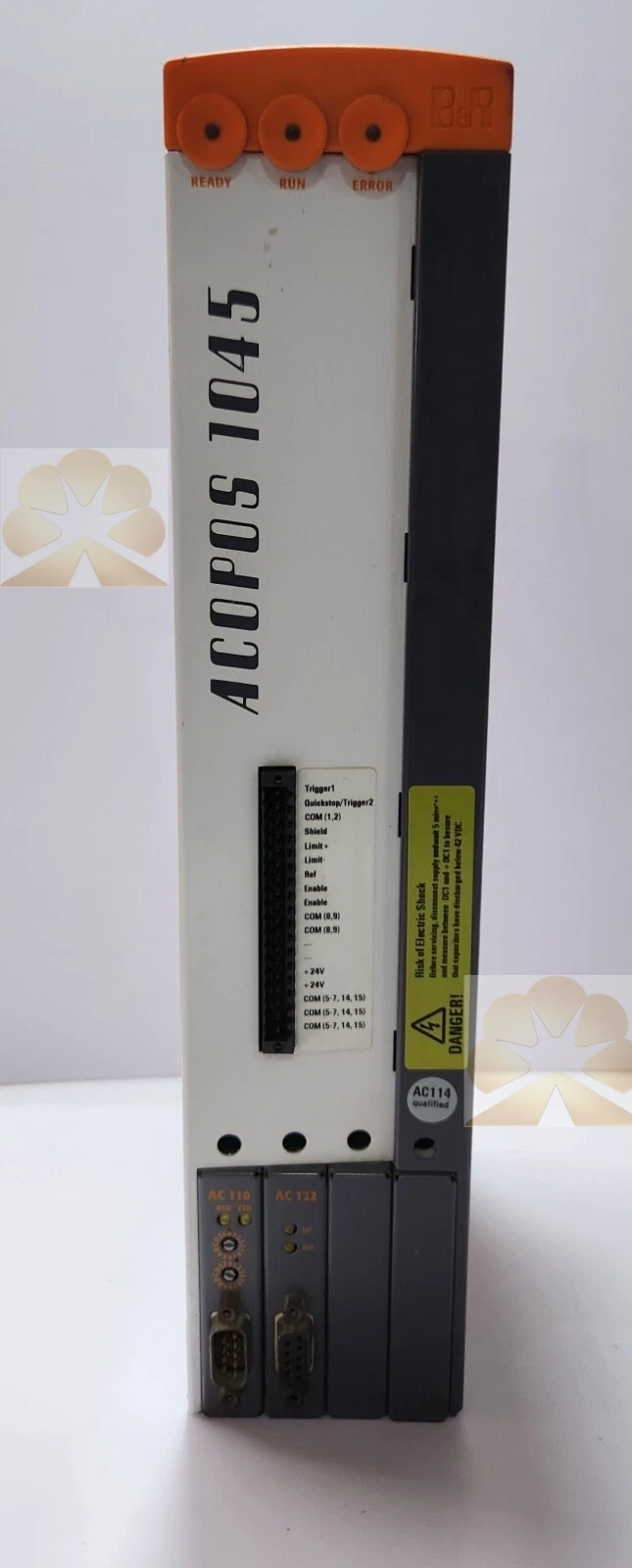

B&R 8V1045.001-2 ACOPOS Servo Drive Product Description

Overview

B&R 8V1045.001-2 is an ACOPOS series servo drive from B&R Automation. The suffix 001-2 means this version has conformal coated PCB for enhanced resistance against moisture, dust and corrosive ambient, compared with the standard 8V1045.00-2. This B&R servo drive is rated 4.4 A, 2 kW, 3×400–480 V AC, widely used for packaging, machine tool, printing and material handling synchronized motion control, for new machine build, system upgrade and spare‑part replacement of ACOPOS drives.

Features

B&R 8V1045.001-2 adopts modular plug-in module architecture with 4 expansion slots for encoder, safety and communication option cards. This ACOPOS drive integrates built-in EMC line filter (C3 category), internal braking resistor and electronic safe restart interlock. 8V1045.001-2 supports fast current, speed and position closed-loop control, compatible with B&R AC synchronous servo motors and multiple encoder feedback types. It works seamlessly with B&R Automation Runtime via POWERLINK bus for multi-axis synchronized motion. The coated PCB design makes it suitable for harsh workshop environments with condensation, oil mist and dust. It supports functional safety options and carries CE, UL, UKCA and KC certifications.

Specs

• Brand: B&R (贝加莱)

• Series: ACOPOS

• Model: 8V1045.001-2

• Rated output current: 4.4 A

• Rated power: 2 kW

• Mains input: 3×400–480 V AC ±10%, 50/60 Hz

• Installed load: Max. 5 kVA

• Dimensions: 70.5 mm × 375 mm × 235.5 mm

• Weight: 4.1 kg

• Special feature: PCB conformal coating

• Built-in: Line filter, brake resistor, safe restart interlock

• Fieldbus: POWERLINK

• Slots: 4 slots for plug-in option modules

• Operating temperature: 5 ~ 55°C

• Standard: IEC 61800-3, CE, cULus, UKCA

Principle

B&R 8V1045.001-2 receives motion setpoints, cam data and synchronization commands from the B&R PLC over POWERLINK. The internal power stage converts DC bus voltage into high-frequency three-phase PWM output to drive the servo motor. Motor encoder signals feed back rotor angle and speed to the drive, forming high-speed closed control loops for position, speed and torque regulation. Regenerative energy during deceleration is consumed by the integrated braking resistor. The safe restart interlock prevents unintended startup after power reset.

Applications

B&R 8V1045.001-2 is deployed in packaging machinery, printing & converting lines, CNC automation, gantry handling systems and factory skids with high humidity or oil mist. This coated ACOPOS servo drive is selected for tough ambient conditions. 8V1045.001-2 fits axis overhaul and spare replacement of ACOPOS series multi-axis servo drives.

Installation & Maintenance Notes

Follow official B&R ACOPOS hardware manual during installation of 8V1045.001-2. Use shielded POWERLINK, motor and encoder cables and follow EMC wiring rules. Back up axis parameters, cam profiles and safety settings before replacement. After replacement, verify encoder type, bus node ID and safety configuration. Check heat sink cleanliness, fan operation and terminal torque regularly. Confirm exact part number 8V1045.001-2; the coated version cannot be casually substituted by non-coated 8V1045.00-2 in harsh environments.
