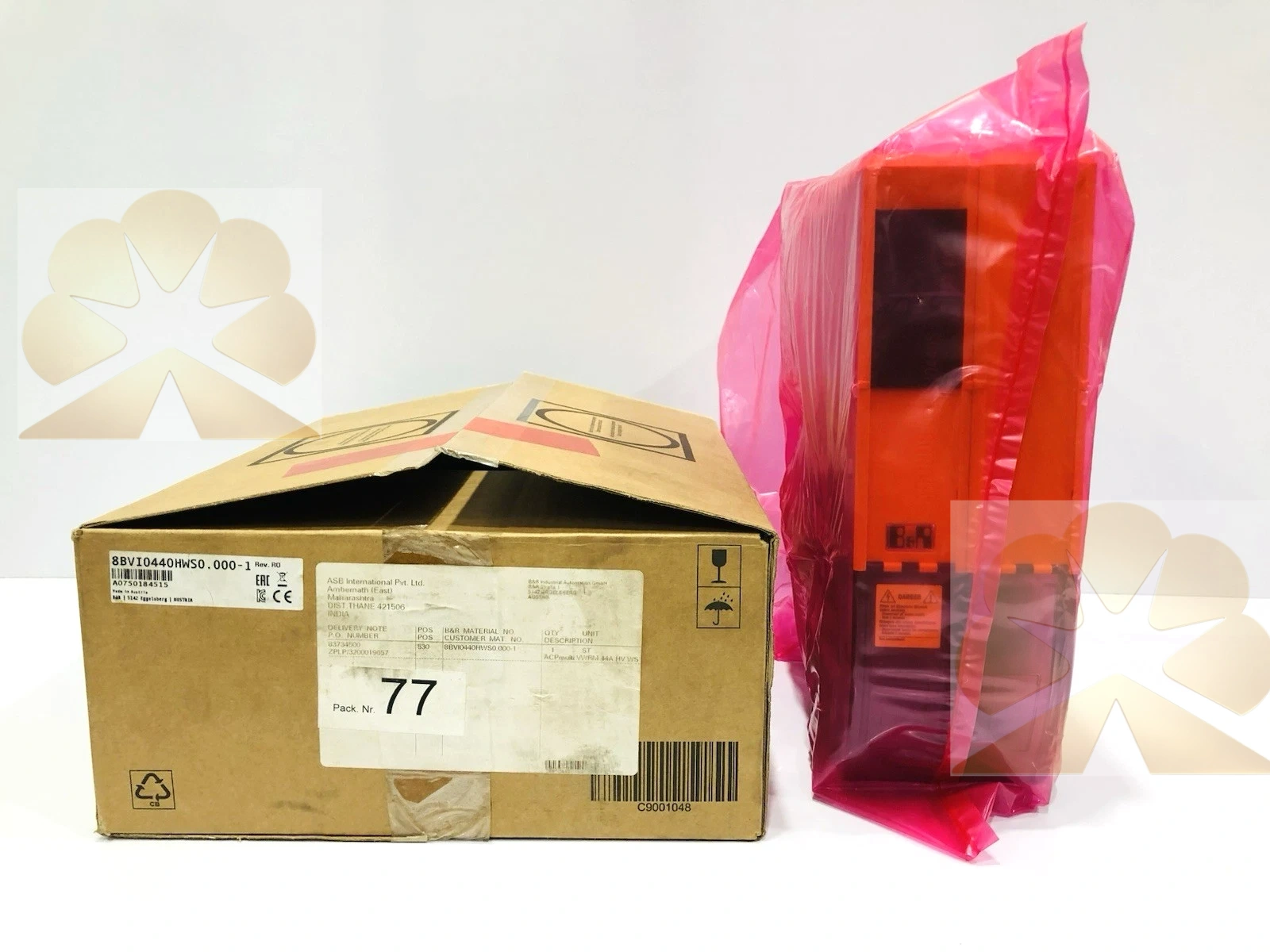

B&R 8BVI0440HWS0.000‑1 Inverter Module Product Description

Overview

B&R 8BVI0440HWS0.000‑1 is a single‑axis inverter module of the B&R ACOPOSmulti series for high‑performance industrial motion control. This B&R inverter module adopts wall‑mount structure with AS encoder interface, supporting 44 A rated output current and 750 VDC DC bus supply. 8BVI0440HWS0.000‑1 integrates SafeMOTION safe stop function, brake output and motor temperature sensor interface, and reserves two slots for plug‑in expansion modules. It works with B&R ACOPOSmulti power supply units and B&R servo motors to realize high‑dynamic multi‑axis motion control, widely used for OEM machine building, production‑line retrofit and spare‑part replacement of existing ACOPOSmulti drive systems.

Features

B&R 8BVI0440HWS0.000‑1 inverter module supports high‑precision closed‑loop control for synchronous servo motors. This B&R inverter module is equipped with built‑in SafeMOTION safety functions to execute safe stop without extra safety relay hardware. 8BVI0440HWS0.000‑1 provides dedicated output terminals for motor holding brake and motor PTC/KTY temperature sensor monitoring for direct thermal protection. The B&R inverter module reserves two plug‑in slots for communication, encoder and safety extension cards to expand functions according to project requirements. This B&R inverter module supports adjustable switching frequency, flexible gain tuning and fast reaction for high‑speed cyclic motion tasks. 8BVI0440HWS0.000‑1 conforms to CE, UL, KC certification standards and supports DNA dynamic node allocation on the ACOPOSmulti bus network.

Specs

B&R 8BVI0440HWS0.000‑1 inverter module

• Brand: B&R

• Series: ACOPOSmulti

• Model: 8BVI0440HWS0.000‑1

• Rated output current: 44 A

• DC bus nominal voltage: 750 VDC

• Mounting: Wall mounting

• Encoder interface: AS

• Safety: Integrated SafeMOTION safe stop

• Expansion slots: 2 plug‑in module slots

• Protection degree: IP20

• Ambient operating temperature: 5 ~ 55°C

• Humidity: 5 ~ 85% non‑condensing

• Dimensions: W106.5 × H317 × D263 mm

• Weight: Approx. 5.4 kg

Principle

B&R 8BVI0440HWS0.000‑1 inverter module receives DC power from the ACOPOSmulti shared DC bus. It converts DC voltage into variable‑frequency three‑phase AC output to drive the matched B&R servo motor. The AS encoder channel collects rotor position feedback and forms a high‑speed closed position loop inside the drive. The built‑in SafeMOTION logic monitors safety signals and executes safe torque off when safety conditions are triggered. Motor temperature signals and brake control signals are processed locally by the module. Motion setpoints are transmitted from the B&R controller via the ACOPOSmulti backplane or fieldbus, and the inverter executes speed, torque and position loop calculation.

Applications

B&R 8BVI0440HWS0.000‑1 inverter module is widely deployed in metal cutting machinery, injection molding equipment, packaging lines, robotic handling systems and printing machinery. This B&R inverter module is selected for heavy‑load single‑axis and multi‑axis synchronized motion applications requiring safety motion functions. 8BVI0440HWS0.000‑1 fits equipment upgrade and spare replacement of ACOPOSmulti wall‑mount drive systems. It undertakes high‑dynamic positioning, pressing, winding and synchronous feeding control for continuous automation production.

Installation & Maintenance Notes

Follow official B&R hardware manuals during installation of B&R 8BVI0440HWS0.000‑1 inverter module. Ensure adequate clearance for air convection and heat dissipation for this B&R inverter module. Confirm DC bus voltage, 24 V auxiliary supply and shielded motor/encoder cables are correctly wired and well grounded for EMC performance. Configure safety parameters and safety wiring strictly according to machinery safety standards. Inspect cooling airflow, connector tightness and brake circuit status periodically under high‑cycle operation. Back up motion project parameters before module replacement. Confirm exact part number 8BVI0440HWS0.000‑1 before spare‑part swap‑out to verify encoder type, safety function and compatibility with the existing ACOPOSmulti rack and controller project.
