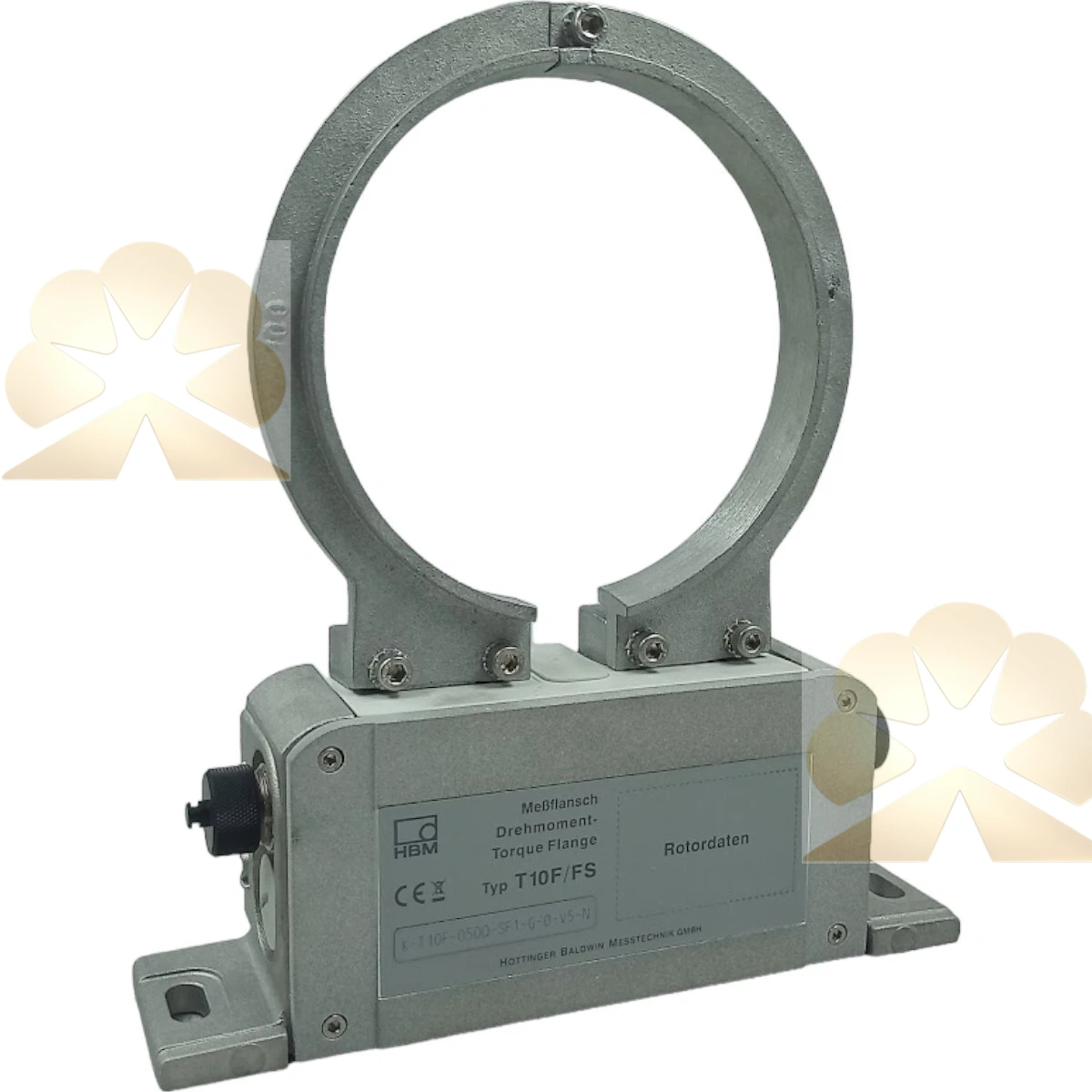

HBM T10F/FS

The T10F/FS is a high precision flange-type torque transducer from HBM, built for static and dynamic torque measurement on rotating shafts. This T10F/FS adopts contactless signal transmission without bearings or slip rings, delivering maintenance-free operation and stable measurement results for long-duration test bench runs. The T10F/FS features high torsional, lateral and bending stiffness, supporting high natural frequency and excellent dynamic response for fast-changing torque signals.

This T10F/FS comes with integrated optical speed and rotation direction detection, enabling simultaneous capture of torque and rotational speed to calculate mechanical power. The T10F/FS reaches accuracy class 0.1, with rated torque ranging from 50 N·m up to 10 kN·m and maximum speed up to 15000 rpm depending on the variant. The compact short-body layout of the T10F/FS saves valuable installation space inside dynamometers, gearbox test rigs and end-of-line inspection stations. It supports frequency output and optional analog signal interfaces, compatible with HBM data acquisition systems and third-party test controllers.

The T10F/FS is widely used for automotive powertrain testing, motor performance verification, gearbox development and industrial drivetrain research. The robust structure of the T10F/FS resists electromagnetic interference and meets strict EMC standards for laboratory and production environments. Many test labs and automation teams stock the T10F/FS as spare measurement hardware for replacement and recalibration of existing test benches.
