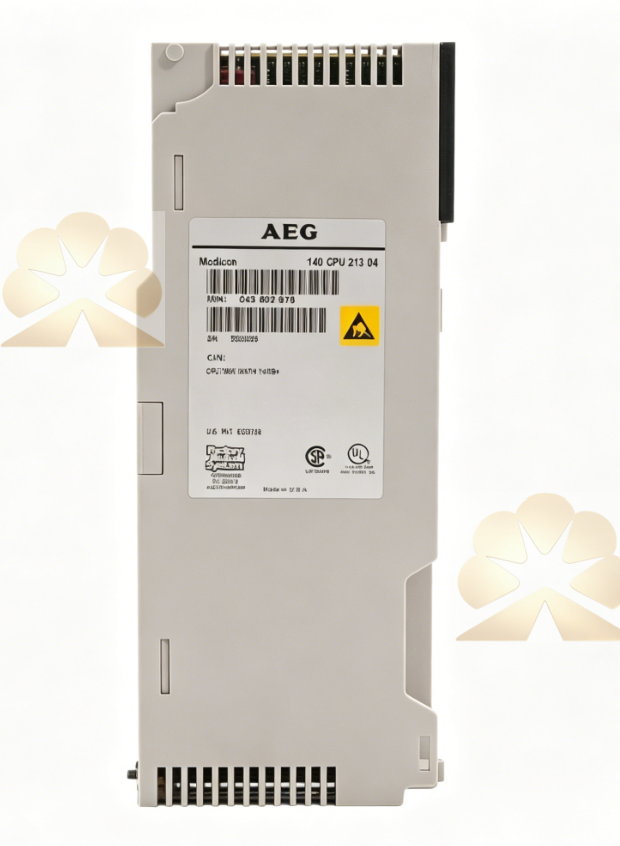

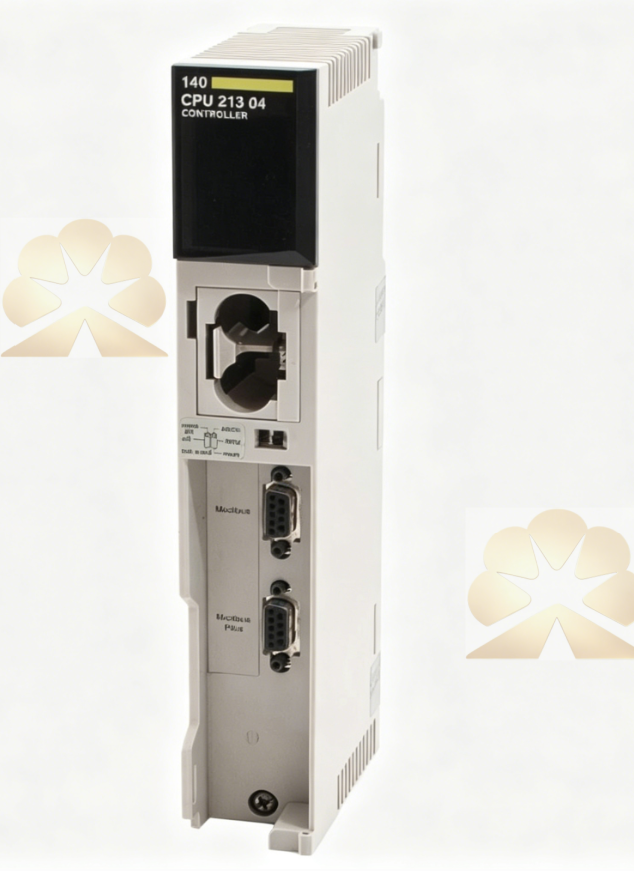

MODICON CPU21304（140CPU21304）

MODICON CPU21304 belongs to Modicon Quantum series, a high-performance rack PLC CPU processor module for large-scale industrial automation systems. It executes control logic, processes local and remote I/O signals and manages dual communication links for assembly lines, bolt tightening stations and process control applications. The CPU runs user control programs, the processor supports fast boolean and mathematical calculation, and the automation control realizes stable sequence operation for multi-station fixture and material handling equipment.

The CPU features 768KB user memory, built-in real-time clock and battery-backed memory to retain programs and production data after power failure. It is equipped with Modbus RS232 and Modbus Plus communication ports to connect HMI, upper monitoring hosts and distributed RIO racks. The processor integrates watchdog monitoring to detect hardware faults, program errors and communication timeout, and triggers safety interlock signals to prevent unexpected production shutdown. Engineers can configure interlock logic, store fastening recipes and upload runtime status for each automation task, and all fault codes and alarm records are stored for equipment commissioning and maintenance troubleshooting.

This CPU adopts single-slot plug-in structure for installation on the standard Quantum backplane, supporting convenient module replacement during maintenance. The processor has conformal coating option for harsh environments and strong anti-interference capability, suitable for continuous operation in dusty workshop environments with vibration and temperature fluctuation. It supports online program monitoring and parameter modification to stabilize the whole automation workflow, shorten troubleshooting time and reduce assembly quality risks caused by control failure.
