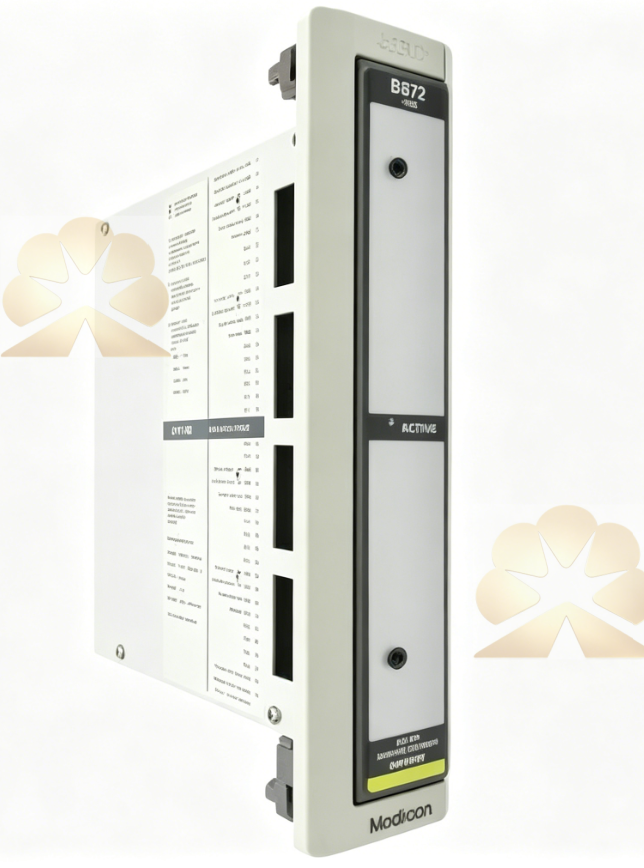

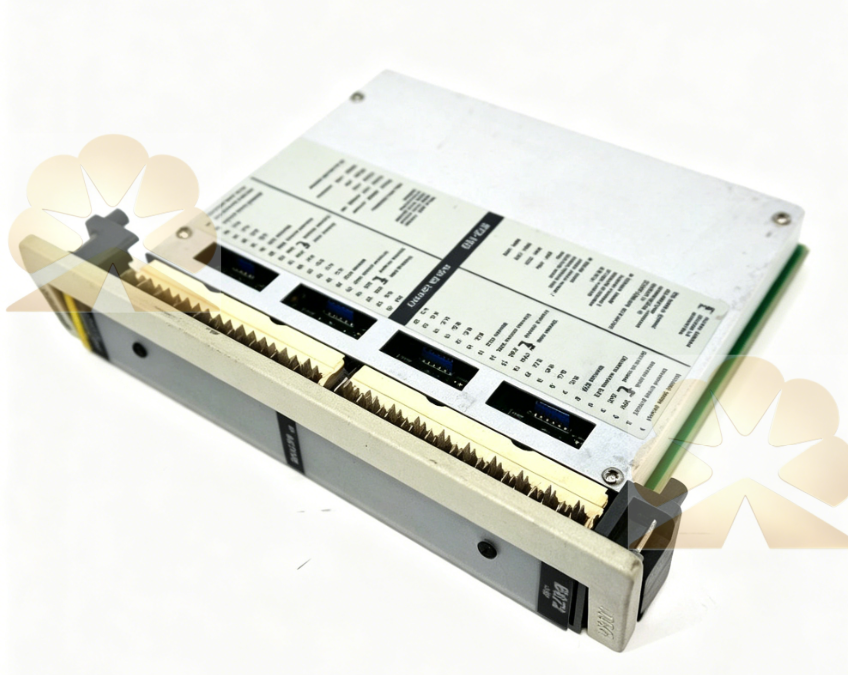

MODICON AS-B872-100

MODICON AS-B872-100 belongs to Modicon 800 series, a 4-channel 4-20mA analog output module for PLC rack-based automation systems. It converts digital control values from the CPU into standard current analog signals to drive proportional valves, regulators and display transducers for closed-loop process adjustment. The analog module outputs continuous control signals, the current channel supports 4-20mA standard industrial loop, and the automation regulation realizes precise parameter control for assembly and bolt fastening stations.

The analog module supports independent channel scaling and output value setting, with built-in diagnostic function to detect open circuit and loop fault. It features stable digital-to-analog conversion and signal smoothing to reduce output jitter caused by bus noise. The current output circuit adopts isolation design to avoid interference cross-talk between channels. Engineers can set target values for pressure, speed and clamping force for each automation cycle, and all output status and fault codes are uploaded to the CPU for logic judgment and quality traceability.

This analog module adopts single-slot plug-in design for direct installation on the standard Modicon backplane, supporting convenient replacement during maintenance. The current output circuit has surge protection and strong anti-interference capability, adapting to long-time continuous operation in dusty workshop environments with vibration and temperature fluctuation. It maintains high conversion accuracy and fast response to stabilize the whole automation workflow, reduce control deviation and lower assembly reject rates.
