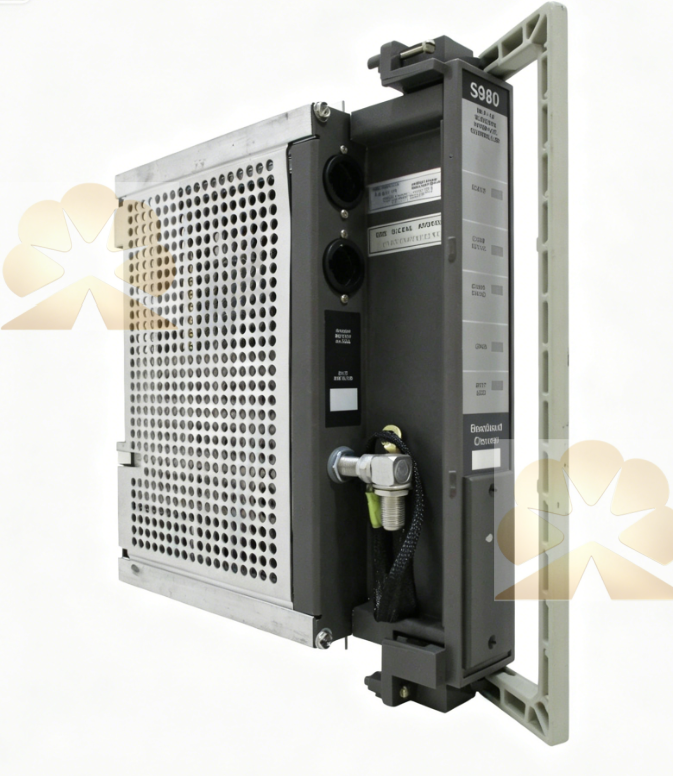

MODICON AM-S980-810

MODICON AM-S980-810 belongs to Modicon 980 series, an analog input module for PLC rack-based automation systems. It converts analog voltage and current signals from field transmitters and sensors into digital data readable by the main CPU for process monitoring and closed-loop regulation. The analog module collects continuous field signals, the signal channel supports 4-20mA and 0-10V standard transducers, and the automation measurement realizes real-time parameter monitoring for assembly and bolt fastening stations.

The analog module adopts multi-channel isolated design to suppress cross-interference between different measuring loops. Each channel supports high-precision sampling and digital filtering, effectively smoothing signal fluctuation caused by field electrical noise. The signal conversion circuit ensures stable conversion accuracy even in environments with variable power supply. Engineers can connect pressure, displacement and torque transmitters to capture process values for each automation cycle, and all sampled data is uploaded to the CPU for logic comparison, alarm judgment and quality recording.

This analog module adopts single-slot plug-in structure for installation on the standard Modicon backplane, supporting convenient replacement during maintenance. The signal input circuit meets industrial surge and anti-interference specifications and can run continuously in dusty workshop environments with vibration and temperature fluctuation. It supports high-resolution conversion and real-time data upload to stabilize the whole automation workflow, reduce measurement deviation and lower assembly quality risks.
