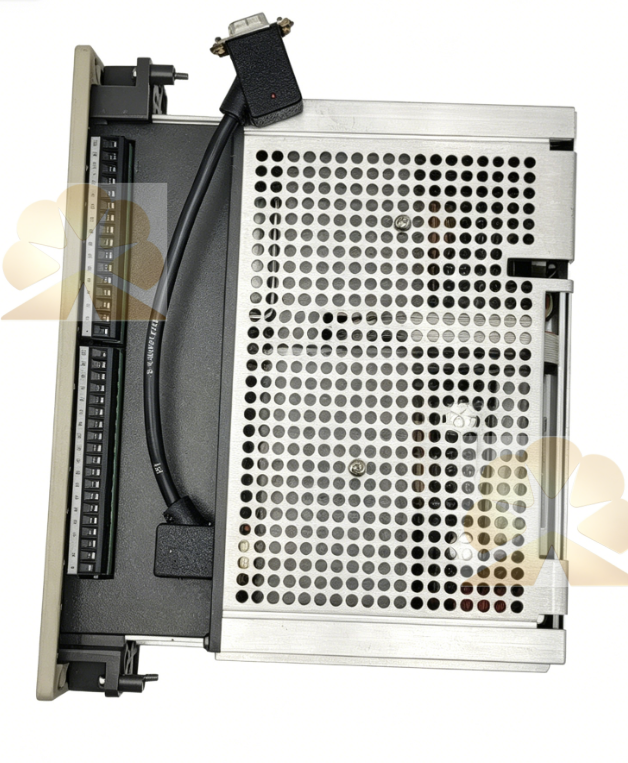

MODICON ASB984100

MODICON ASB984100 belongs to Modicon 800 series, a mixed high-speed discrete I/O module for PLC rack-based automation systems. It collects 24VDC input signals and outputs control signals to field actuators, supporting fast response for high-speed sorting, material handling and automated bolt fastening stations. The I/O module integrates input and output channels on one unit, the DC circuit works with 20-28VDC field sensors and switches, and the automation signal processing realizes rapid signal acquisition and action output for time-critical production processes.

The I/O module is equipped with independent channel isolation and built-in signal filtering to suppress electrical noise and prevent interference spread between field loops. Each channel has LED status indicator for direct on-site visual diagnosis during commissioning and maintenance. The DC input circuit features ultra-fast sampling speed to capture short trigger pulses that ordinary I/O modules cannot identify. Engineers can configure proximity switches, position sensors and safety interlock signals for each automation step, and all I/O status will be scanned and uploaded to the CPU for program logic judgment and fault recording.

This I/O module adopts single-slot plug-in design for installation on the standard Modicon backplane, supporting convenient replacement during maintenance. The DC channel meets industrial anti-surge and anti-vibration specifications and can run continuously in dusty workshop environments with temperature fluctuation. It supports quick signal response and real-time state feedback to stabilize the whole automation workflow, reduce missed trigger signals and lower assembly quality defects caused by slow signal response.
