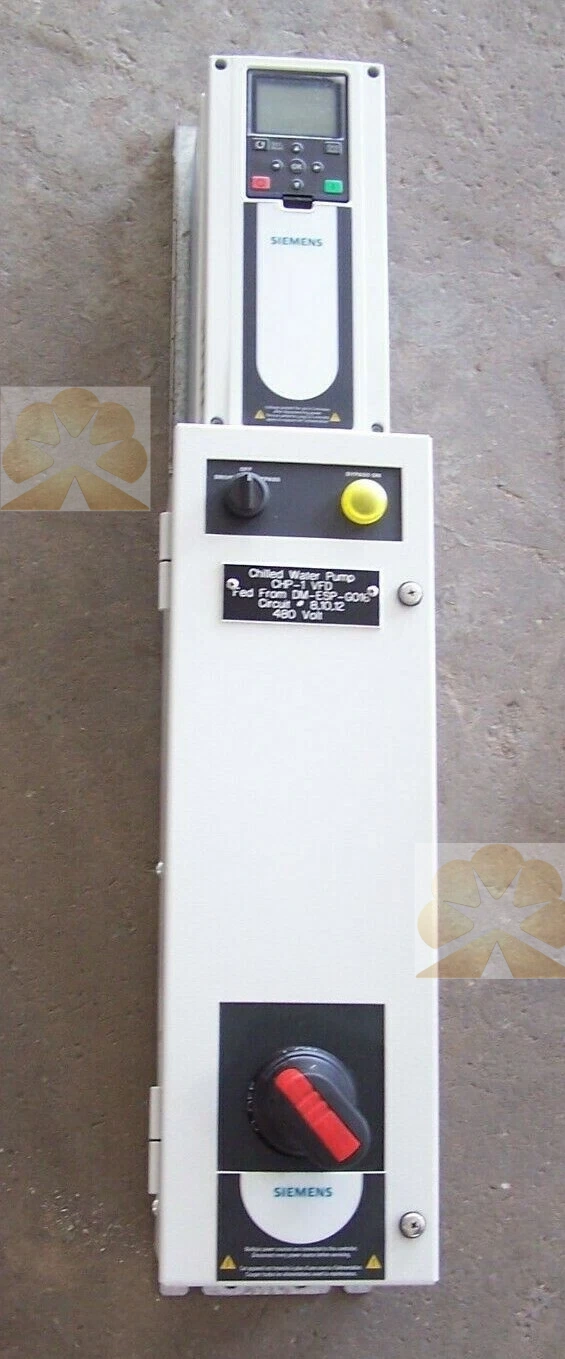

SIEMENS BTC-002X4-F012 Product Description

The SIEMENS BTC-002X4-F012 is a BT300 series HVAC variable frequency drive integrated with conventional bypass cabinet for fan and pump motor speed regulation in building automation systems. This HVAC variable frequency drive features 2HP rated power, 480V three-phase input voltage, equipped with dual contactor bypass design and fused disconnect switch. This HVAC variable frequency drive adopts NEMA Type 1 enclosure structure, offering built-in service switch to isolate power safely during equipment maintenance. This HVAC variable frequency drive supports adjustable frequency output and dedicated HVAC control logic to optimize energy consumption for air handling and water circulation equipment.

This SIEMENS BT300 drive unit combines inverter core and bypass switching circuit into one complete cabinet package. Its reliable power inverter core converts fixed frequency AC supply into variable frequency AC output to adjust motor rotational speed smoothly. The power inverter core uses advanced PWM modulation technology to reduce motor noise and suppress harmonic interference to surrounding control devices. The power inverter core integrates overload, overvoltage and over-temperature protection functions to safeguard the connected HVAC motor from abnormal operating conditions. The compact layout of the power inverter core is optimized for cabinet assembly and routine inspection in mechanical equipment rooms.

The bypass function allows the motor to run directly on commercial power supply when the inverter encounters faults, avoiding full system shutdown. Smart motor bypass switching automatically switches between VFD control mode and direct-on-line power mode for continuous equipment operation. Stable motor bypass switching ensures seamless transfer without excessive voltage surge during mode transition. Safe motor bypass switching works with service switch to cut off power supply for safe inspection and component replacement. Robust motor bypass switching improves system availability for critical ventilation, cooling water and heating circulation systems.

The SIEMENS BTC-002X4-F012 supports rich built-in functions including PID regulation, fault recording and digital/analog I/O terminals for external sensor and controller connection. The NEMA Type 1 enclosure protects internal components from dust and accidental touch in indoor mechanical room environments. It carries UL certification and complies with North American electrical standards for building control projects. The all-in-one packaged design simplifies on-site wiring, reduces engineering work and shortens commissioning time for HVAC contractors. Widely used in air handling units, cooling tower fans, chilled water pumps and heating circulation pumps, this SIEMENS HVAC variable frequency drive provides dependable energy-saving motor control solutions for commercial building automation worldwide.
